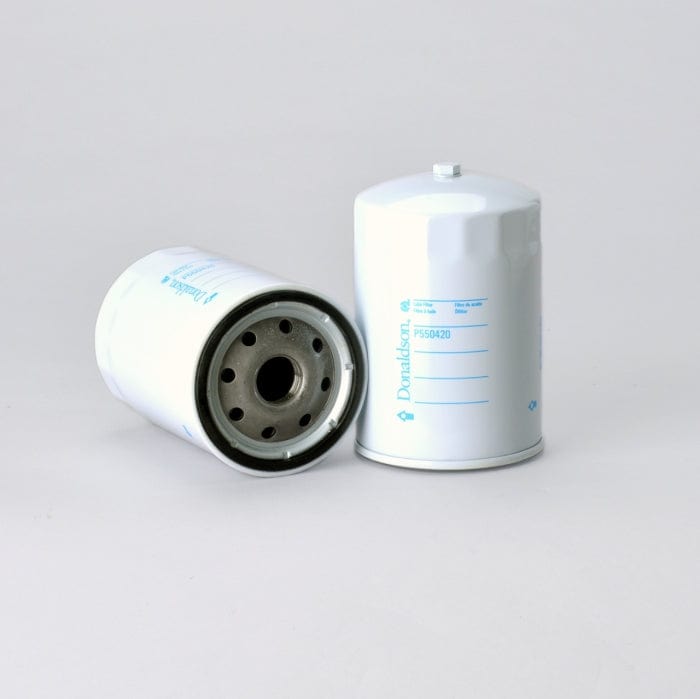

Lube Filter, Spin-On Full Flow - Donaldson P550420
Lube Filter, Spin-On Full Flow - Donaldson P550420
Regular price
Ā£18.94
Regular price
Sale price
Ā£18.94
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550420
Lube Filter, Spin-On Full Flow| Outer Diameter | 4.33 inch (110 mm) |
| Thread Size | 1 1/8-16 UN |
| Length | 6.38 inch (162 mm) |
| Gasket OD | 4.13 inch (105 mm) |
| Gasket ID | 3.74 inch (95 mm) |
| Efficiency 50% | 20 micron |
| Efficiency Beta 75 | 38 micron |
| Efficiency Test Std | JIS D 1611 |
| Media Type | Cellulose |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | HITACHI 4296675 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 110 mm (4.33 inch)
- Thread Size: 1 1/8-16 UN
- Length: 162 mm (6.38 inch)
- Gasket OD: 105 mm (4.13 inch)
- Gasket ID: 95 mm (3.74 inch)
- Efficiency 50%: 20 micron
- Efficiency Beta 75: 38 micron
- Efficiency Test Std: JIS D 1611
- Media Type: Cellulose
- Collapse Burst: 6.9 bar (100 psi)
- Type: Full-Flow
- Style: Spin-On
- Primary Application: HITACHI 4296675
Packaged Dimensions
- Packaged Length: 0.118 m (4.70 inch)
- Packaged Width: 0.118 m (4.70 inch)
- Packaged Height: 0.180 m (7.20 inch)
- Packaged Weight: 1.022 kg (2.25 lb)
- Packaged Volume: 0.003 m3 (0.09 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-10
- HTS Code: 8421230090
- UPC Code: 742330107621
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| HITACHI | 4296675 | |
| ISUZU | 1132004872 | |
| NEW HOLLAND | 1930299 | |
| VMC | LF550420 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AGRIFULL 45 | - | TRACTOR | 40 SERIES | FIAT 8035.06 | - |
| AGRIFULL 45DT | - | TRACTOR | 40 SERIES | FIAT 8035.06 | - |
| AGRIFULL 50 | - | TRACTOR | 50 SERIES | FIAT 8035.05 | - |
| AGRIFULL 50DT | - | TRACTOR | 50 SERIES | FIAT 8035.05 | - |
| AGRIFULL 50DT | - | TRACTOR | 50 SERIES | FIAT 8035.05 | - |
| AGRIFULL 55 IIF | - | TRACTOR | 50 SERIES | FIAT 8035.06 | - |
| AGRIFULL 55 IIFDT | - | TRACTOR | 50 SERIES | FIAT 8035.06 | - |
| AGRIFULL 55 IIV | - | TRACTOR | 50 SERIES | FIAT 8035.06 | - |
| AGRIFULL 55 IIVDT | - | TRACTOR | 50 SERIES | FIAT 8035.06 | - |
| AGRIFULL 55CF | - | TRACTOR | 50 SERIES | FIAT 8035.06 | - |
| AGRIFULL 55CV | - | TRACTOR | 50 SERIES | FIAT 8035.06 | - |
| AGRIFULL 55DT | - | TRACTOR | 50 SERIES | FIAT 8035.06 | - |
| AGRIFULL 55DTT | - | TRACTOR | 50 SERIES | FIAT 8035.06 | - |
| AGRIFULL A45 | - | TRACTOR | A SERIES | - A45 | - |
| AGRIFULL A50 | - | TRACTOR | A SERIES | - A50 | - |
| FURUKAWA FL-200-1 | - | LOADER | - | ISUZU 6BG1T | - |
| HITACHI EX300-2 | - | EXCAVATOR TRACKED | - | ISUZU 6SD1T | - |
| HITACHI EX300-3 | - | EXCAVATOR TRACKED | - | ISUZU 6SD1 | - |
| HITACHI EX300-5 | - | EXCAVATOR TRACKED | - | ISUZU 6SD1T | - |
| HITACHI EX330-5 | - | EXCAVATOR TRACKED | - | ISUZU 6SD1T | - |
| HITACHI EX370-5 | - | EXCAVATOR TRACKED | - | ISUZU 6SD1T | - |
| HITACHI LX290E | - | LOADER WHEELED | - | ISUZU 6SD1 | - |
| HITACHI LX290E-2 | - | LOADER WHEELED | - | ISUZU 6SD1 | - |
| ISUZU FTR | - | TRUCK | - | ISUZU 6HK1T | - |
| ISUZU FVR | - | TRUCK | - | ISUZU 6BG1T | - |
| ISUZU FXR | - | TRUCK | - | ISUZU 6HK1T | - |
| ISUZU HTR | - | TRUCK | - | ISUZU 6HK1T | - |
| ISUZU HVR | - | TRUCK | - | ISUZU 6HK1T | - |
| ISUZU HXR | - | TRUCK | - | ISUZU 6HK1T | - |
