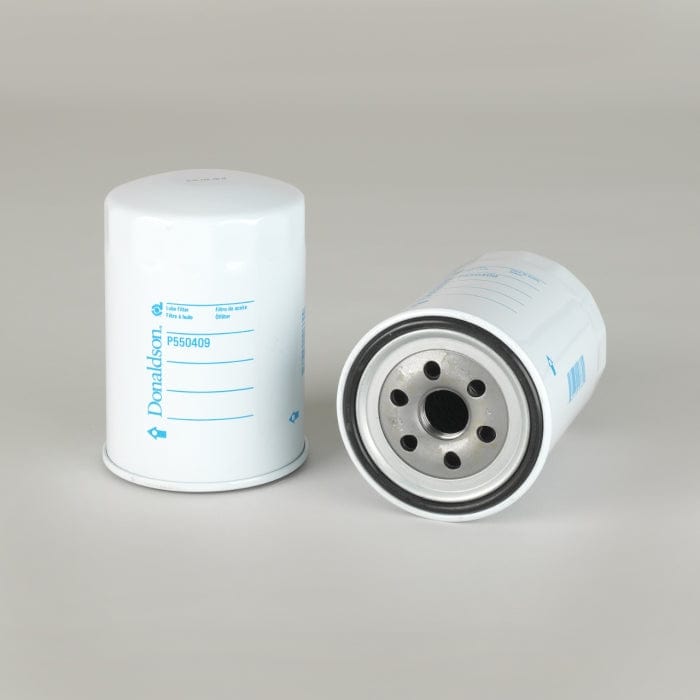

Lube Filter, Spin-On Full Flow - Donaldson P550409

Attributes

• Outer Diameter: 102 mm (4.02 inch)
• Thread Size: 1-12
• Length: 150 mm (5.91 inch)
• Gasket OD: 100 mm (3.94 inch)
• Gasket ID: 88 mm (3.46 inch)
• Efficiency 50%: 16 micron
• Efficiency Beta 75: 50 micron
• Efficiency Test Std: JIS D 1611
• Bypass Valve Setting LR: 0.75 bar (11 psi)
• Bypass Valve Setting HR: 1.15 bar (17 psi)
• Media Type: Cellulose
• Collapse Burst: 6.9 bar (100 psi)
• Type: Full-Flow
• Style: Spin-On

Packaged Dimensions

• Packaged Length: 0.118 m (4.70 inch)
• Packaged Width: 0.118 m (4.70 inch)
• Packaged Height: 0.160 m (6.40 inch)
• Packaged Weight: 0.851 kg (1.88 lb)
• Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

• Country of Origin: Indonesia
• NMFC Code: 069100-10
• HTS Code: 8421230090
• UPC Code: 742330106624
