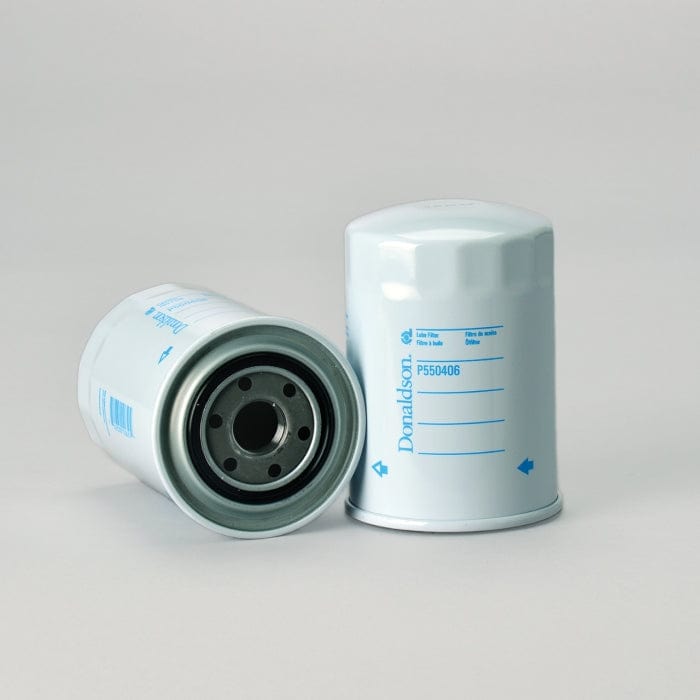

Lube Filter, Spin-On Full Flow - Donaldson P550406

Attributes

• Outer Diameter: 107 mm (4.21 inch)
• Thread Size: M26 x 1.5
• Length: 153 mm (6.02 inch)
• Gasket OD: 73 mm (2.87 inch)
• Gasket ID: 56 mm (2.20 inch)
• Efficiency 50%: 16 micron
• Efficiency Test Std: SAE J806
• Anti-Drainback Valve: Yes
• Bypass Valve: Yes
• Bypass Valve Setting LR: 1.7 bar (25 psi)
• Bypass Valve Setting HR: 2.1 bar (30 psi)
• Media Type: Cellulose
• Collapse Burst: 6.9 bar (100 psi)
• Type: Full-Flow
• Style: Spin-On
• Primary Application: HINO 156071480

Packaged Dimensions

• Packaged Length: 0.120 m (4.80 inch)
• Packaged Width: 0.105 m (4.20 inch)
• Packaged Height: 0.163 m (6.50 inch)
• Packaged Weight: 0.892 kg (1.97 lb)
• Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

• Country of Origin: Indonesia
• NMFC Code: 069100-10
• HTS Code: 8421230090
• UPC Code: 742330106594
