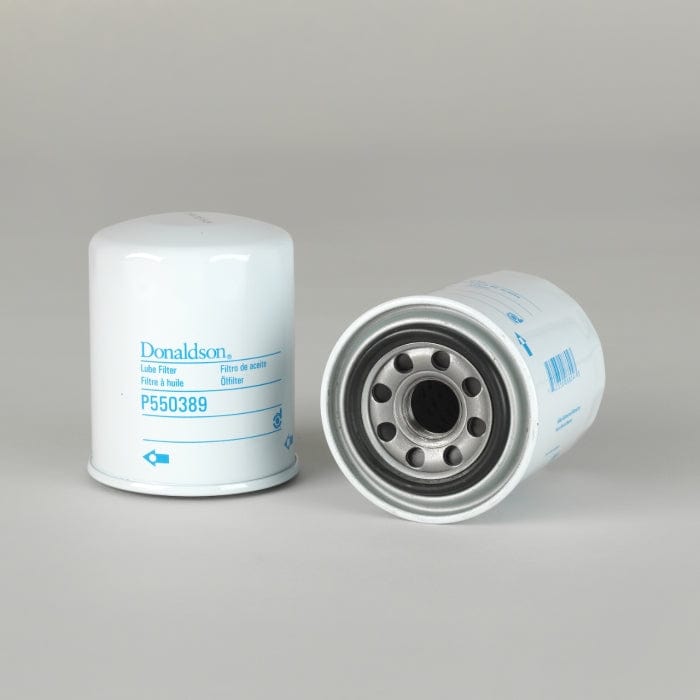

Lube Filter, Spin-On Full Flow - Donaldson P550389

Attributes

• Outer Diameter: 80 mm (3.15 inch)
• Thread Size: M22 x 1.5
• Length: 100 mm (3.94 inch)
• Gasket OD: 63 mm (2.48 inch)
• Gasket ID: 51 mm (2.01 inch)
• Efficiency 50%: 25 micron
• Anti-Drainback Valve: Yes
• Bypass Valve: Yes
• Bypass Valve Setting LR: 0.8 bar (12 psi)
• Bypass Valve Setting HR: 1 bar (15 psi)
• Media Type: Cellulose
• Collapse Burst: 5.2 bar (75 psi)
• Type: Full-Flow
• Style: Spin-On

Packaged Dimensions

• Packaged Length: 0.089 m (3.54 inch)
• Packaged Width: 0.089 m (3.54 inch)
• Packaged Height: 0.108 m (4.33 inch)
• Packaged Weight: 0.372 kg (0.82 lb)
• Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

• Country of Origin: Indonesia
• NMFC Code: 069100-10
• HTS Code: 8421230090
• UPC Code: 742330088043
