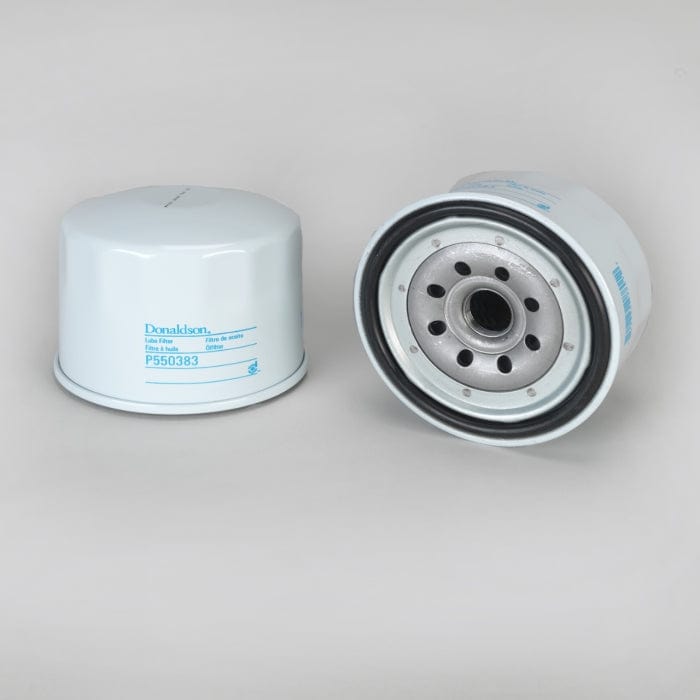

Lube Filter, Spin-On Full Flow - Donaldson P550383
Lube Filter, Spin-On Full Flow - Donaldson P550383
Regular price
£14.26
Regular price
Sale price
£14.26
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550383
Lube Filter, Spin-On Full Flow| Outer Diameter | 4.13 inch (105 mm) |
| Thread Size | M20 x 1.5 |
| Length | 3.15 inch (80 mm) |
| Gasket OD | 3.94 inch (100 mm) |
| Gasket ID | 3.50 inch (89 mm) |
| Efficiency 99% | 40 micron |
| Media Type | Cellulose |
| Collapse Burst | 75 psi (5.2 bar) |
| Type | Full-Flow |
| Style | Spin-On |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 105 mm (4.13 inch)
- Thread Size: M20 x 1.5
- Length: 80 mm (3.15 inch)
- Gasket OD: 100 mm (3.94 inch)
- Gasket ID: 89 mm (3.50 inch)
- Efficiency 99%: 40 micron
- Media Type: Cellulose
- Collapse Burst: 5.2 bar (75 psi)
- Type: Full-Flow
- Style: Spin-On
Packaged Dimensions
- Packaged Length: 0.118 m (4.72 inch)
- Packaged Width: 0.118 m (4.72 inch)
- Packaged Height: 0.099 m (3.94 inch)
- Packaged Weight: 0.676 kg (1.49 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-11
- HTS Code: 8421230090
- UPC Code: 742330088012
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF1102 | |
| AC DELCO | P1102 | |
| AMERICAN MOTORS CORPORATION | OC13030 | |
| AMERICAN MOTORS CORPORATION | OC14080 | |
| AMERICAN MOTORS CORPORATION | T6738 | |
| AMERICAN MOTORS CORPORATION | T8210 | |
| AMERICAN MOTORS CORPORATION | SFO4585 | |
| AMERICAN PARTS | 92839 | |
| APOLLO | PH787 | |
| ASAHI | MO515 | |
| BIG A | 92839 | |
| CAM2 | PH787 | |
| CARCARE | P3828 | |
| CARCARE | OF3828 | |
| CENEX | CO787 | |
| CITGO | PH787 | |
| CLEAN | DO866 | |
| COOPERS | Z948 | |
| CROSLAND | 2061 | |
| DEUSCH | D387 | |
| EVERGARD | L10343 | |
| EXMAN | MO515 | |
| EXMAN | T6738 | |
| EXMAN | T8210 | |
| EXMAN | OC13030 | |
| EXMAN | OC14080 | |
| EXMAN | SFO4585 | |
| FACET | 787 | |
| FACET | L787 | |
| FEDERAL MOTORS | FMS2074 | |
| FORD | E43Z6731A | |
| FORD | 865923802 | |
| FORD | E73Z6731A | |
| FORD | E3TZ6731B | |
| FSA | FO1043 | |
| GRANT | PH787 | |
| GREASE MONKEY | GM787 | |
| IAPCO | A0238007 | |
| ISUZU | 8942402590 | |
| ISUZU | 8943432050 | |
| ISUZU | 8971145850 | |
| ISUZU | 8941145850 | |
| ISUZU | 8943402590 | |
| ISUZU | 8943402591 | |
| ISUZU | 8941523860 | |
| KENDALL | L787 | |
| KNECHT | OC239 | |
| KRALINATOR | L119 | |
| LAZORLITE | L111287 | |
| LUCAS | F6569 | |
| MAZDA | BF1008S | |
| MAZDA | RF6614V61AA | |
| MAZDA | PN1614302 | |
| MAZDA | PN1614V61 | |
| MAZDA | PN16160V61 | |
| MAZDA | R21413802 | |
| MAZDA | R21423802 | |
| MAZDA | 8529238020 | |
| MAZDA | 825923802 | |
| MAZDA | 8259238020 | |
| MINIT LUBE | L787 | |
| MINIT LUBE | PH787 | |
| NISSAN/UD TRUCKS | 15208HC310 | |
| PURFLUX | LS295 | |
| QUAKER STATE | QS3828 | |
| REPCO | 1111104 | |
| SECURITY | PH787 | |
| SERVICE CHAMP | OF343 | |
| SERVICE CHAMP | C752 | |
| SERVICE CHAMP | C451 | |
| TEHO | 4168 | |
| TEXACO | HSO110 | |
| UNION 76 | OF1839 | |
| VIC | C408 | |
| VIC | C506 | |
| VMC | LF550383 | |
| WARNER & SWASEY | WPH787 | |
| WARNER & SWASEY | PH787 | |
| WORLDPARTS | W27384 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CHEVROLET NPR | - | TRUCK | - | ISUZU 4BD1T | - |
| FORD ECONOVAN | - | LIGHT TRUCK | - | FORD 2.2L L4 | - |
| ISUZU NKR575 | - | TRUCK | - | ISUZU 4BC2 | - |
| ISUZU NKR58 | 1987-4/1997 | TRUCK | - | ISUZU 4BD1 3.9L | - |
| ISUZU NKR58 | 1987-4/1997 | TRUCK | - | ISUZU 4BE1 3.6L | - |
| ISUZU NKR59 | 1987-4/1997 | TRUCK | - | ISUZU 4BD1 3.9L | - |
| ISUZU NPR58 | 1987-4/1997 | TRUCK | - | ISUZU 4BD1 3.9L | - |
| ISUZU NPR58 | 1987-4/1997 | TRUCK | - | ISUZU 4BE1 3.6L | - |
| ISUZU PNKR56 | - | TRUCK | - | ISUZU 4JBA1 | - |
| ISUZU PNKR57 | - | TRUCK | - | ISUZU 4BC2 | - |
| ISUZU PNKR58 | - | TRUCK | - | ISUZU 4BE1 | - |
| ISUZU PNKR63 | - | TRUCK | - | ISUZU 4BE2 | - |
| ISUZU PNKS58 | - | TRUCK | - | ISUZU 4BE1 | - |
| ISUZU PNPR57 | - | TRUCK | - | ISUZU 4BC2 | - |
| ISUZU PNPR58 | - | TRUCK | - | ISUZU 4BE1 | - |
| ISUZU PNPR59 | - | TRUCK | - | ISUZU 4BD1 | - |
| ISUZU PNPR59 | - | TRUCK | - | ISUZU 4BD1T | - |
| ISUZU UNKR58 | - | TRUCK | - | ISUZU 4BE1 | - |
| ISUZU UNKR61 | - | TRUCK | - | ISUZU 4BG1 | - |
| ISUZU UNPR61 | - | TRUCK | - | ISUZU 4BG1 | - |
| MAZDA N-SEF8T | - | LIGHT TRUCK | - | - N-SEF8T | - |
| MAZDA Q-SS28M | - | LIGHT TRUCK | - | - Q-SS28M | - |
| MAZDA U-SR2AM | - | LIGHT TRUCK | - | - U-SR2AM | - |
| MAZDA Y-SSF8R | - | LIGHT TRUCK | - | - Y-SSF8R | - |
