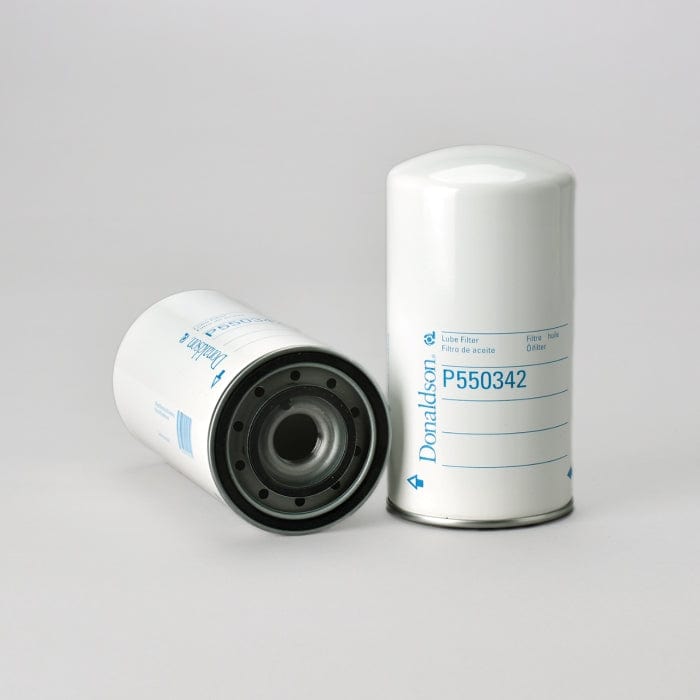

Lube Filter, Spin-On Full Flow - Donaldson P550342

Attributes

• Outer Diameter: 109 mm (4.29 inch)
• Thread Size: M30 x 2
• Length: 230 mm (9.06 inch)
• Gasket OD: 103 mm (4.06 inch)
• Gasket ID: 92 mm (3.62 inch)
• Efficiency 50%: 12 micron
• Efficiency Test Std: ISO 16889
• Anti-Drainback Valve: Yes
• Bypass Valve: Yes
• Bypass Valve Setting LR: 2.3 bar (33 psi)
• Bypass Valve Setting HR: 2.7 bar (39 psi)
• Media Type: Cellulose
• Collapse Burst: 6.9 bar (100 psi)
• Type: Full-Flow
• Style: Spin-On
• Primary Application: IVECO 1902102

Packaged Dimensions

• Packaged Length: 0.118 m (4.72 inch)
• Packaged Width: 0.118 m (4.72 inch)
• Packaged Height: 0.227 m (9.06 inch)
• Packaged Weight: 1.320 kg (2.91 lb)
• Packaged Volume: 0.004 m3 (0.13 ft3)

Other Information

• Country of Origin: Türkiye
• HTS Code: 8421230090
• UPC Code: 742330042250
