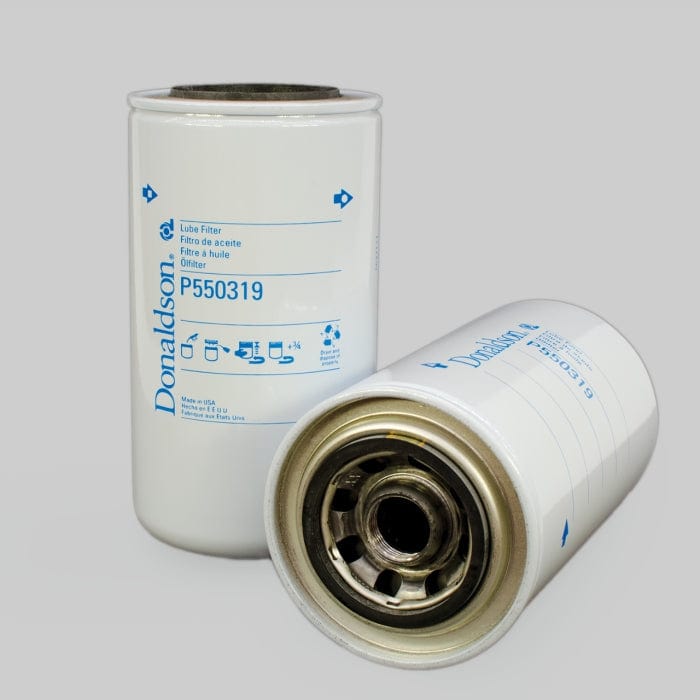

Lube Filter, Spin-On Full Flow - Donaldson P550319
Lube Filter, Spin-On Full Flow - Donaldson P550319
Regular price
£16.56
Regular price
Sale price
£16.56
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550319
Lube Filter, Spin-On Full Flow| Outer Diameter | 4.25 inch (108 mm) |
| Thread Size | 1-12 UN |
| Length | 7.99 inch (203 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.40 inch (61 mm) |
| Efficiency 99% | 23 micron |
| Efficiency Test Std | SAE J806 |
| Media Type | Cellulose |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | CASE/CASE IH 1811953C1 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 108 mm (4.25 inch)
- Thread Size: 1-12 UN
- Length: 203 mm (7.99 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 61 mm (2.40 inch)
- Efficiency 99%: 23 micron
- Efficiency Test Std: SAE J806
- Media Type: Cellulose
- Collapse Burst: 6.9 bar (100 psi)
- Type: Full-Flow
- Style: Spin-On
- Primary Application: CASE/CASE IH 1811953C1
Packaged Dimensions
- Packaged Length: 0.36 FT
- Packaged Width: 0.35 FT
- Packaged Height: 0.68 FT
- Packaged Weight: 0.997 kg (2.20 lb)
- Packaged Volume: 0.002 m3 (0.08 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-10
- HTS Code: 8421230090
- UPC Code: 742330042199
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF1257 | |
| BOSCH-REXROTH | 0451301156 | |
| CASE/CASE IH | 1811953C1 | |
| CATERPILLAR | 3I1880 | |
| FORD | 9576P550319 | |
| FREIGHTLINER | DNP550319 | |
| GALION | 1811953C1 | |
| IMPERIAL | 04LF3455 | |
| INTERNATIONAL | 1811953C1 | |
| KOMATSU | 1811953C1 | |
| KORODY COLYER | FB309 | |
| KRALINATOR | L283 | |
| NEOPLAN | DONP550319 | |
| PERKINS | 26540237 | |
| PERKINS | P26540237 | |
| TAYLOR | 5597017 | |
| TFMC | L00864 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688420 | |
| UNIVERSAL COACH PARTS | T081069 | |
| VMC | LF550319 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| DETROIT DIESEL SERIES 40 | - | ENGINE | - | - SERIES 40 | - |
| INTERNATIONAL 2000 SERIES | - | TRUCK | - | INTERNATIONAL DT466 | - |
| INTERNATIONAL 4900 | - | TRUCK | - | INTERNATIONAL DT466 | - |
| INTERNATIONAL DT360 | - | ENGINE | - | - DT360 | - |
| INTERNATIONAL DTA360 | - | ENGINE | - | - DTA360 | - |
| INTERNATIONAL PAYSTAR 5000 | - | TRUCK | - | INTERNATIONAL DT466 | - |
| KOMATSU TD12 | - | DOZER TRACKED | - | CASE/CASE IH D466 | - |
