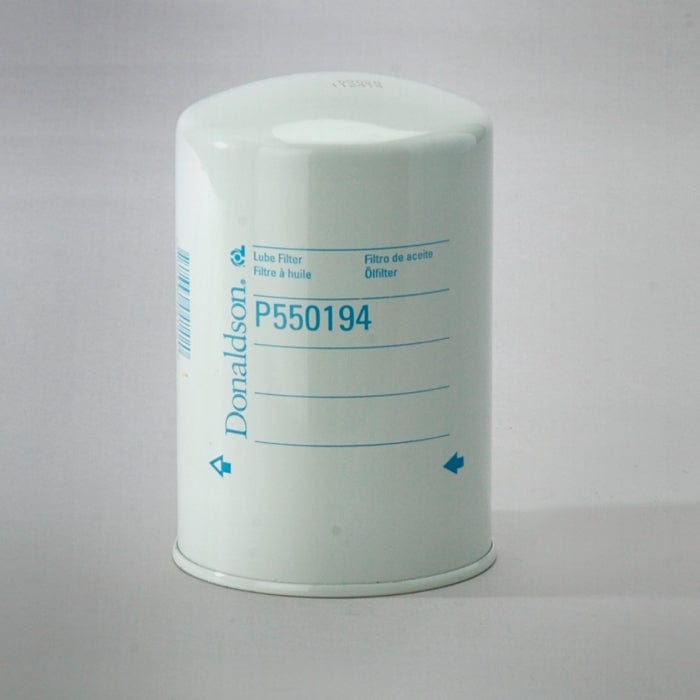

Lube Filter, Spin-On Full Flow - Donaldson P550194
Lube Filter, Spin-On Full Flow - Donaldson P550194
Regular price
Ā£17.32
Regular price
Sale price
Ā£17.32
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550194
Lube Filter, Spin-On Full Flow| Outer Diameter | 3.82 inch (97 mm) |
| Thread Size | 5/8-18 UN |
| Length | 5.67 inch (144 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.48 inch (63 mm) |
| Efficiency 99% | 40 micron |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 12 psi (0.8 bar) |
| Bypass Valve Setting HR | 15 psi (1 bar) |
| Media Type | Cellulose |
| Collapse Burst | 80 psi (5.5 bar) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | WISCONSIN RV38 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 97 mm (3.82 inch)
- Thread Size: 5/8-18 UN
- Length: 144 mm (5.67 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 63 mm (2.48 inch)
- Efficiency 99%: 40 micron
- Anti-Drainback Valve: Yes
- Bypass Valve: Yes
- Bypass Valve Setting LR: 0.8 bar (12 psi)
- Bypass Valve Setting HR: 1 bar (15 psi)
- Media Type: Cellulose
- Collapse Burst: 5.5 bar (80 psi)
- Type: Full-Flow
- Style: Spin-On
- Primary Application: WISCONSIN RV38
Packaged Dimensions
- Packaged Length: 0.097 m (3.88 inch)
- Packaged Width: 0.097 m (3.88 inch)
- Packaged Height: 0.142 m (5.69 inch)
- Packaged Weight: 0.499 kg (1.10 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-09
- HTS Code: 8421230090
- UPC Code: 742330041420
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF15 | |
| AMERICAN PARTS | 727 | |
| AMERICAN PARTS | 92110 | |
| BIG A | 727 | |
| BIG A | 92110 | |
| CATERPILLAR | 3I1620 | |
| CHAMP | FP38 | |
| CONTINENTAL | RV38S3 | |
| CONTINENTAL | RV38 | |
| COOP | PM330 | |
| COOP | PLRV38 | |
| COOPERS | LSF5099 | |
| CYCLONE | PM330 | |
| DELUXE | 83 | |
| DELUXE | WD83 | |
| DITCH WITCH | 155929 | |
| FORD | 9576P550194 | |
| GOULD | P330 | |
| GREYFRIARS | 9074S | |
| GUD | Z93 | |
| HINO | 156071471A | |
| ISUZU | 132400891 | |
| ISUZU | 29065408200 | |
| ISUZU | 1132400890 | |
| ISUZU | 1132400891 | |
| ISUZU | 11324008900 | |
| ISUZU | 1132400892 | |
| JAEGER | RV38S | |
| JLG | 7014504 | |
| KRALINATOR | L41 | |
| MORBARK | 29137152 | |
| NEW HOLLAND | 75127 | |
| P.B.R. | BC1066 | |
| PERRY | PL83 | |
| STAY READY | SRPRV38 | |
| STAY READY | SRPPF15 | |
| UNITED ENGINE LIFE | P4 | |
| VERMEER | 6162001 | |
| VERMEER | 119190001 | |
| VMC | LF550194 | |
| WISCONSIN | RV38S3 | |
| WISCONSIN | RV38S | |
| WISCONSIN | RV38 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ALLIS-CHALMERS FD7 | - | TRACTOR | - | - FD7 | - |
| CASE/CASE IH P104 | - | CONCRETE PUMP | - | WISCONSIN V465D | - |
| DITCH WITCH R60 | - | TRENCHER | - | WISCONSIN - | - |
| DITCH WITCH R65 | - | TRENCHER | - | WISCONSIN G4.236 | - |
| ELGIN EAGLE | - | SWEEPER | - | ISUZU 6353 | - |
| FREEMAN 300W | - | BALER | - | WISCONSIN V461D | - |
| FREEMAN 330W | - | BALER | - | WISCONSIN V461D | - |
| ISUZU 6BD1 | - | ENGINE | - | - 6BD1 | - |
| ISUZU 6BG1 | - | ENGINE | - | - 6BG1 | - |
| ISUZU 6BG1TC | - | ENGINE | - | - 6BG1TC | - |
| ISUZU FRR | - | TRUCK | - | - FRR | - |
| ISUZU FSR | - | TRUCK | - | ISUZU 6.5L | - |
| ISUZU FSRLP | - | TRUCK | - | ISUZU 6.5L | - |
| ISUZU FSRLP | - | TRUCK | - | ISUZU 6BG1T | - |
| ISUZU FTR | - | TRUCK | - | ISUZU 6BD1T | - |
| ISUZU FTR | - | TRUCK | - | ISUZU 6BG1T | - |
| ISUZU FVR | - | TRUCK | - | ISUZU 6BG1T | - |
| ISUZU FVR | - | TRUCK | - | ISUZU 6.5L | - |
| ISUZU NPR | - | TRUCK | - | ISUZU 6.5L | - |
| ISUZU NPR | - | TRUCK | - | ISUZU 6BG1 | - |
| ISUZU NRR | 1993 | TRUCK | - | ISUZU 6.5L | - |
| ISUZU NRR | - | TRUCK | - | ISUZU 6BG1 | - |
| ISUZU NRR | - | TRUCK | - | ISUZU 6BG1T | - |
| ISUZU W5 | - | TRUCK | - | - W5 | - |
| ISUZU W6 | - | TRUCK | - | - W6 | - |
| ISUZU W7M | - | TRUCK | - | - W7M | - |
| MUSTANG 81 | - | WINDROWER | - | WISCONSIN V461D | - |
| MUSTANG 92 | - | WINDROWER | - | WISCONSIN V461D | - |
| NEW HOLLAND 1045 | - | BALER | - | WISCONSIN V461D | - |
| NEW HOLLAND 1046 | - | BALER | - | WISCONSIN V461D | - |
| NEW HOLLAND 1280 | - | BALER | - | WISCONSIN V461D | - |
| NEW HOLLAND 1281 | - | BALER | - | WISCONSIN V461D | - |
| NEW HOLLAND 1290 | - | BALER | - | WISCONSIN V461D | - |
| NEW HOLLAND 178 | - | BALER | - | WISCONSIN V461D | - |
| NEW HOLLAND 283 | - | BALER | - | WISCONSIN V461D | - |
| NEW HOLLAND 286 | - | BALER | - | WISCONSIN V461D | - |
| NEW HOLLAND 500 | - | TRACTOR TRACKED | - | WISCONSIN V465D | - |
| NEW HOLLAND 900 | - | SWATHER | - | WISCONSIN V461D | - |
| NEW HOLLAND 901 | - | SWATHER | - | WISCONSIN V460D | - |
| NEW HOLLAND 901 | - | SWATHER | - | WISCONSIN V450D | - |
| NEW HOLLAND 901 | - | SWATHER | - | WISCONSIN V461D | - |
| NEW HOLLAND 903 | - | SWATHER | - | WISCONSIN V461D | - |
| NEW HOLLAND 903 | - | SWATHER | - | WISCONSIN V450D | - |
| NEW HOLLAND 905 | - | SWATHER | - | WISCONSIN V450D | - |
| NEW HOLLAND 905 | - | SWATHER | - | WISCONSIN V461D | - |
| NEW HOLLAND 907 | - | SWATHER | - | WISCONSIN V461D | - |
| NEW HOLLAND 907 | - | SWATHER | - | WISCONSIN V450D | - |
| NEW HOLLAND 909 | - | SWATHER | - | WISCONSIN V450D | - |
| NEW HOLLAND 909 | - | SWATHER | - | WISCONSIN V461D | - |
| NEW HOLLAND 910 | - | WINDROWER | - | WISCONSIN V461D | - |
| NEW HOLLAND 910 | - | WINDROWER | - | WISCONSIN V450D | - |
| NEW HOLLAND 912 | - | WINDROWER | - | WISCONSIN V450D | - |
| NEW HOLLAND 912 | - | WINDROWER | - | WISCONSIN V461D | - |
| NEW HOLLAND L775 | - | SKID STEER LOADER | L SERIES | WISCONSIN V465D | - |
| NEW HOLLAND S77 | - | BALER | - | WISCONSIN V461D | - |
| VERMEER 665B | - | CHIPPER | - | - 665B | - |
| VERMEER 672 | - | CHIPPER | - | - 672 | - |
| WISCONSIN 460D | - | ENGINE | - | - 460D | - |
| WISCONSIN 461D | - | ENGINE | - | - 461D | - |
| WISCONSIN V460D | - | ENGINE | - | - V460D | - |
| WISCONSIN V461D | - | ENGINE | - | - V461D | - |
| WISCONSIN V465D | - | ENGINE | - | - V465D | - |
| WISCONSIN VR61DG | - | ENGINE | LPG | - VR61DG | - |
