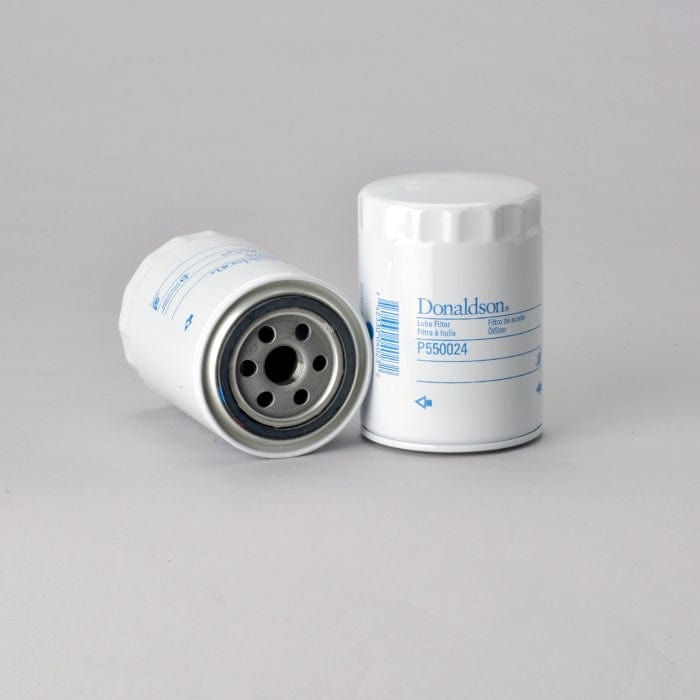

Lube Filter, Spin-On Full Flow - Donaldson P550024
Lube Filter, Spin-On Full Flow - Donaldson P550024
Regular price
Ā£10.16
Regular price
Sale price
Ā£10.16
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550024
Lube Filter, Spin-On Full Flow| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 13/16-16 UN |
| Length | 5.20 inch (132 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.40 inch (61 mm) |
| Efficiency 99% | 40 micron |
| Anti-Drainback Valve | Yes |
| Media Type | Cellulose |
| Collapse Burst | 75 psi (5.2 bar) |
| Type | Full-Flow |
| Style | Spin-On |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 13/16-16 UN
- Length: 132 mm (5.20 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 61 mm (2.40 inch)
- Efficiency 99%: 40 micron
- Anti-Drainback Valve: Yes
- Media Type: Cellulose
- Collapse Burst: 5.2 bar (75 psi)
- Type: Full-Flow
- Style: Spin-On
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.128 m (5.12 inch)
- Packaged Weight: 0.431 kg (0.95 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421230090
- UPC Code: 742330040232
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | AP45803A | |
| A P PARTS | AP1142 | |
| A P PARTS | LK1142 | |
| AC DELCO | HC10 | |
| AC DELCO | HC7 | |
| AC DELCO | PF10 | |
| AC DELCO | A2559 | |
| AC DELCO | PM700 | |
| AC DELCO | PF31 | |
| AC DELCO | PF30 | |
| AC DELCO | X61 | |
| AC DELCO | PF5 | |
| ACE SCRAP METAL | PH7 | |
| ALLCAR | APH10 | |
| ALLIS-CHALMERS | 2399301 | |
| ALLIS-CHALMERS | 239930 | |
| ALLIS-CHALMERS | 2399308 | |
| ALLIS-CHALMERS | 29930 | |
| ALLIS-CHALMERS | 234774 | |
| ALLIS-CHALMERS | 70239930 | |
| ALLIS-CHALMERS | 2347746 | |
| ALLIS-CHALMERS | 02347746 | |
| ALLIS-CHALMERS | 0234774 | |
| ALLIS-CHALMERS | 02399308 | |
| ALLIS-CHALMERS | 0239930 | |
| ALLOY | ABH11 | |
| AMERICAN MOTORS CORPORATION | SFO1072 | |
| AMERICAN MOTORS CORPORATION | 3157847 | |
| AMERICAN MOTORS CORPORATION | 3161267 | |
| AMERICAN MOTORS CORPORATION | SFO3146 | |
| AMERICAN MOTORS CORPORATION | 8991803 | |
| AMERICAN MOTORS CORPORATION | 3196841 | |
| AMERICAN MOTORS CORPORATION | 3196333 | |
| AMERICAN MOTORS CORPORATION | 944345 | |
| AMERICAN MOTORS CORPORATION | 3198112 | |
| AMERICAN MOTORS CORPORATION | 3208320 | |
| AMERICAN MOTORS CORPORATION | 3167847 | |
| AMERICAN MOTORS CORPORATION | 3177601 | |
| AMERICAN MOTORS CORPORATION | 6436089 | |
| AMERICAN MOTORS CORPORATION | 3181366 | |
| AMERICAN MOTORS CORPORATION | 3177757 | |
| AMERICAN MOTORS CORPORATION | 3188793 | |
| AMERICAN MOTORS CORPORATION | 3181366B | |
| AMERICAN MOTORS CORPORATION | 8990873 | |
| AMERICAN MOTORS CORPORATION | 899107 | |
| AMERICAN MOTORS CORPORATION | 8991072 | |
| AMERICAN MOTORS CORPORATION | 8990688 | |
| AMERICAN MOTORS CORPORATION | 8990837 | |
| AMERICAN PARTS | 3661 | |
| AMERICAN PARTS | 661 | |
| AMERICAN PARTS | 92049 | |
| AMSOIL | EAO22 | |
| AMSOIL | SDF22 | |
| APCO | APH11 | |
| APCO | APH25 | |
| APOLLO | PH7 | |
| ARMAFILT | O931052 | |
| ATLAS | G65A | |
| AUTO PAR | FE133 | |
| AUTO PAR | FE43 | |
| AUTOWIZE | A2 | |
| BIG A | 3661 | |
| BIG A | 661 | |
| BIG A | 92049 | |
| BOSCH-REXROTH | 0451203081 | |
| BOSCH-REXROTH | P3081 | |
| BOSCH-REXROTH | 451203081 | |
| CAM2 | PH7 | |
| CARCARE | OF5 | |
| CASE/CASE IH | R1R | |
| CASE/CASE IH | R1U | |
| CASE/CASE IH | A720X6714JA | |
| CASE/CASE IH | A64453 | |
| CASE/CASE IH | 0006731G | |
| CASE/CASE IH | C3RZ6731B | |
| CATERPILLAR | 9Y4501 | |
| CATERPILLAR | 3I1093 | |
| CENEX | CO103 | |
| CHAMP | FP7 | |
| CHAMP | FP5 | |
| CHAMP | PH5 | |
| CHAMP | PH7 | |
| CHRIS-CRAFT | 6436089 | |
| CHRIS-CRAFT | 68108130 | |
| CHRYSLER | J0944345 | |
| CHRYSLER | J3157847 | |
| CHRYSLER | J3181366 | |
| CHRYSLER | J3161267 | |
| CHRYSLER | J3188793 | |
| CHRYSLER | J3196333 | |
| CHRYSLER | J3208320 | |
| CHRYSLER | 8990837 | |
| CHRYSLER | 8990688 | |
| CHRYSLER | 8990873 | |
| CHRYSLER | 8991072 | |
| CHRYSLER | 2062660 | |
| CHRYSLER | 3157847 | |
| CHRYSLER | 3177601 | |
| CHRYSLER | 3161267 | |
| CHRYSLER | 3188793 | |
| CHRYSLER | 3181366 | |
| CHRYSLER | 3196841 | |
| CHRYSLER | 3196333 | |
| CHRYSLER | 3208320 | |
| CHRYSLER | 2196909 | |
| CHRYSLER | J8990688 | |
| CHRYSLER | J8990873 | |
| CHRYSLER | J8990837 | |
| CHRYSLER | 2459985 | |
| CHRYSLER | J8991072 | |
| CHRYSLER | 944345 | |
| CLARK,J.L. | KF33 | |
| CLARK,J.L. | KF6 | |
| CLARK,J.L. | KF7 | |
| CLEAN | DO317 | |
| CLEAN | DO281 | |
| CONOCO | CN2 | |
| CONOCO | CN11 | |
| CONTINENTAL | PC25 | |
| COOP | PL104A | |
| COOP | PL64453 | |
| COOP | VER5 | |
| COOPERS | Z37 | |
| COOPERS | Z15 | |
| CROSLAND | 539 | |
| CROSLAND | 537 | |
| CYCLONE | PM10 | |
| DELUXE | WD103 | |
| DELUXE | 103 | |
| DIAMOND | FD8227 | |
| DIEXA | DX5US | |
| DRESSER | 384843C2 | |
| DYNALIFE | CN2 | |
| EUCLID | 818511 | |
| EXMAN | SFO1072 | |
| EXMAN | SFO3146 | |
| FACET | 11 | |
| FACET | OF11 | |
| FACET | L11 | |
| FARMLAND | FER5 | |
| FDI-SAMBRON | KF7 | |
| FDI-SAMBRON | KF6 | |
| FIAAM | FT4968 | |
| FIAAM | FT4969 | |
| FIAT | R1R | |
| FIAT | R1U | |
| FIAT | 239930 | |
| FIAT | 234774 | |
| FIAT | C3RZ6731B | |
| FIAT | A720X6714JA | |
| FIAT | 70239930 | |
| FIAT | 70234774 | |
| FIAT | 0006731G | |
| FILT | FF271EC | |
| FILT | FF200EC | |
| FIRESTONE | TF11 | |
| FORD | CC1CZ6731F | |
| FORD | CC3CZ6731B | |
| FORD | CCICZ6731F | |
| FORD | A720X6714HA | |
| FORD | A720X6714JA | |
| FORD | 6731G | |
| FORD | 0006731G | |
| FORD | 1536946 | |
| FORD | 1537039 | |
| FORD | C3RZ6731B | |
| FORD | R1R | |
| FORD | R1U | |
| FREIGHTLINER | DNP550024 | |
| FSA | FO1032 | |
| FURUKAWA | 384843C2 | |
| GIESSE | CLH3491 | |
| GOODYEAR | 2224502 | |
| GOODYEAR | L11 | |
| GOULD | P10 | |
| GRANT | PH7 | |
| GREASE MONKEY | GM11 | |
| GREYFRIARS | 923S | |
| GROUP 7 | V5 | |
| GUARDIAN | G051049 | |
| GUD | Z37 | |
| GUIOT | GH2500 | |
| GULF | GF205 | |
| HARMO | S809 | |
| HITACHI | 70239930 | |
| HUTCHENS | SF5 | |
| HYSTER | 14703712 | |
| HYSTER | 147037 | |
| INTERNATIONAL | 998435R91 | |
| JEEP | 944345 | |
| JEEP | 8991072 | |
| JEEP | 6436089 | |
| JEEP | 3181366B | |
| JEEP | 31813668 | |
| JEEP | 31813678 | |
| JEEP | 3181367 | |
| JEEP | 3181367B | |
| JEEP | 5577981 | |
| JEEP | 3181366 | |
| JOHN DEERE | TY9428 | |
| JOHN DEERE | A64453 | |
| KENDALL | K2 | |
| KENDALL | L11 | |
| KNECHT | OC118 | |
| KRALINATOR | D25S | |
| KRALINATOR | L188 | |
| KRALINATOR | L27 | |
| KRALINATOR | L25S | |
| KRALINATOR | L56 | |
| LEDERER | LER5 | |
| LEE ENGINEERING | LF7 | |
| LEE ENGINEERING | LF6 | |
| LEE ENGINEERING | LF5 | |
| LEE ENGINEERING | LER5 | |
| LEE ENGINEERING | LF7HP | |
| LOCKHEED | FC193 | |
| LOCKHEED | AP45803A | |
| LOCKHEED | LK1142 | |
| LOCKHEED | AP1142 | |
| LOCKHEED | 574193 | |
| LPM | 13505049 | |
| LUCAS | F614 | |
| MASSEY FERGUSON | 1900366M91 | |
| MASSEY FERGUSON | 1900336M91 | |
| MINIT LUBE | PH7 | |
| MISFAT | 12311201 | |
| NELSON | 88007A | |
| NELSON | 85119E | |
| NELSON WINSLOW | W7SCRP | |
| NELSON WINSLOW | W7SCRP | |
| NELSON WINSLOW | CP11SCR | |
| NELSON WINSLOW | WPF31 | |
| NELSON WINSLOW | CP7SCR | |
| NELSON WINSLOW | CP7SCR | |
| NELSON WINSLOW | WPF31 | |
| NELSON WINSLOW | W11SCRP | |
| NEW HOLLAND | A720X6714JA | |
| NEW HOLLAND | C3RZ6731B | |
| NEW HOLLAND | R1U | |
| NEW HOLLAND | R1R | |
| NEW HOLLAND | 0006731G | |
| ORENSTEIN & KOPPEL | 103829 | |
| ORENSTEIN & KOPPEL | 103928 | |
| PERRY | PL2 | |
| PERRY | PL103 | |
| PHILLIPS 66 | P05 | |
| PHILLIPS 66 | PO5 | |
| POWER-FLO | LER5 | |
| PRO GAUGE | PGO5 | |
| PRO MATCH | 9Y4501 | |
| PURFLUX | PER33M | |
| QUAKER STATE | QS11 | |
| REFILCO | PER5 | |
| REX | F5 | |
| SAVARA | 92817517 | |
| SAVARA | 92813317 | |
| SECURITY | PH7 | |
| SHELL | S2 | |
| STAY READY | SRPPF7 | |
| STAY READY | SRPPF10 | |
| STEWART & STEVENSON | 163131 | |
| STEWART & STEVENSON | 631317 | |
| SUNOCO | O8 | |
| SUNOCO | L11 | |
| TECALEMIT-TJ | FB2067 | |
| TECALEMIT-TJ | F12167 | |
| TECALEMIT-TJ | FB5402 | |
| TECHNOCAR | R56 | |
| TEHO | OK7 | |
| TENNANT | 3177757 | |
| TEREX | 103928 | |
| TEREX | 103829 | |
| TEXACO | HSO127 | |
| TEXACO | T2 | |
| UNION 76 | OF1049 | |
| UNION 76 | PF31 | |
| UNIPART | 602639 | |
| UNIPART | GFE123 | |
| UNIPART | GFE145 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688160 | |
| UNITED ENGINE LIFE | U5L | |
| UNOCAL | OF1049 | |
| UNOCAL | PF31 | |
| VMC | LF550024 | |
| VME | 818511 | |
| WABCO | FK0016 | |
| WABCO | VS2033 | |
| WARNER & SWASEY | PH7 | |
| WARTSILA | O931052 | |
| WGB | S114CP | |
| WIPAC | CA519 | |
| XSV | OP5 | |
| YALE | 2999100 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ALLIS-CHALMERS 175 | - | TRACTOR | - | - 175 | - |
| ALLIS-CHALMERS 180 | - | TRACTOR | - | ALLIS-CHALMERS 2800 | - |
| ALLIS-CHALMERS 180 | - | TRACTOR | - | - 180 | - |
| ALLIS-CHALMERS 180 | - | TRACTOR | - | - 180 | - |
| ALLIS-CHALMERS 185 | - | TRACTOR | - | - 185 | - |
| ALLIS-CHALMERS 185D | - | TRACTOR | - | ALLIS-CHALMERS 2800 | - |
| ALLIS-CHALMERS 190 | - | TRACTOR | - | - 190 | - |
| ALLIS-CHALMERS 190 | - | TRACTOR | - | ALLIS-CHALMERS D2800 | - |
| ALLIS-CHALMERS 190 | - | TRACTOR | - | ALLIS-CHALMERS D2900 | - |
| ALLIS-CHALMERS 190 | - | TRACTOR | - | ALLIS-CHALMERS G2500 | - |
| ALLIS-CHALMERS 190 | - | TRACTOR | - | ALLIS-CHALMERS G2800 | - |
| ALLIS-CHALMERS 190XT | - | TRACTOR | - | - 190XT | - |
| ALLIS-CHALMERS 190XT | - | TRACTOR | - | ALLIS-CHALMERS D2800 | - |
| ALLIS-CHALMERS 190XT | - | TRACTOR | - | ALLIS-CHALMERS D2900 | - |
| ALLIS-CHALMERS 190XT | - | TRACTOR | - | ALLIS-CHALMERS G2500 | - |
| ALLIS-CHALMERS 190XT | - | TRACTOR | - | ALLIS-CHALMERS G2800 | - |
| ALLIS-CHALMERS 190XT III | - | TRACTOR | - | ALLIS-CHALMERS D2800 | - |
| ALLIS-CHALMERS 190XT III | - | TRACTOR | - | ALLIS-CHALMERS D2900 | - |
| ALLIS-CHALMERS 190XT III | - | TRACTOR | - | ALLIS-CHALMERS G2500 | - |
| ALLIS-CHALMERS 190XT III | - | TRACTOR | - | ALLIS-CHALMERS G2800 | - |
| ALLIS-CHALMERS 210 | - | TRACTOR | - | - 210 | - |
| ALLIS-CHALMERS 220 | - | TRACTOR | - | - 220 | - |
| ALLIS-CHALMERS D14 | - | TRACTOR | - | ALLIS-CHALMERS G149 | - |
| ALLIS-CHALMERS D15 | - | TRACTOR | - | ALLIS-CHALMERS G149 | - |
| ALLIS-CHALMERS D15 | - | TRACTOR | - | ALLIS-CHALMERS G149 | - |
| ALLIS-CHALMERS D15 | - | TRACTOR | - | ALLIS-CHALMERS G149 | - |
| ALLIS-CHALMERS D15 | - | TRACTOR | - | ALLIS-CHALMERS G149 | - |
| ALLIS-CHALMERS D15D | - | TRACTOR | - | ALLIS-CHALMERS D175 | - |
| ALLIS-CHALMERS D16DC | - | TRACTOR | - | - D16DC | - |
| ALLIS-CHALMERS D17 | - | TRACTOR | - | - D17 | - |
| ALLIS-CHALMERS D17 | - | TRACTOR | - | ALLIS-CHALMERS W226 | - |
| ALLIS-CHALMERS D17 | - | TRACTOR | - | - D17 | - |
| ALLIS-CHALMERS D17 | - | TRACTOR | - | ALLIS-CHALMERS G226 | - |
| ALLIS-CHALMERS D17 | - | TRACTOR | - | - D17 | - |
| ALLIS-CHALMERS D17 | - | TRACTOR | - | ALLIS-CHALMERS G226 | - |
| ALLIS-CHALMERS D17 | - | TRACTOR | - | ALLIS-CHALMERS G226 | - |
| ALLIS-CHALMERS D17D | - | TRACTOR | - | ALLIS-CHALMERS D262 | - |
| ALLIS-CHALMERS D17D | - | TRACTOR | - | - - | - |
| ALLIS-CHALMERS D17D | - | TRACTOR | - | ALLIS-CHALMERS D262 | - |
| ALLIS-CHALMERS D19 | - | TRACTOR | - | ALLIS-CHALMERS D262T | - |
| ALLIS-CHALMERS D19 | - | TRACTOR | - | ALLIS-CHALMERS G262 | - |
| ALLIS-CHALMERS D19 | - | TRACTOR | - | ALLIS-CHALMERS G262 | - |
| ALLIS-CHALMERS D19D | - | TRACTOR | - | ALLIS-CHALMERS D262 | - |
| ALLIS-CHALMERS D21 | - | TRACTOR | - | ALLIS-CHALMERS 3500 | - |
| ALLIS-CHALMERS D21D | - | TRACTOR | - | ALLIS-CHALMERS 3500 | - |
| ALLIS-CHALMERS D21D | - | TRACTOR | - | ALLIS-CHALMERS 3400 | - |
| ALLIS-CHALMERS H3 | - | TRACTOR | - | ALLIS-CHALMERS G149 | - |
| ALLIS-CHALMERS H3 | - | TRACTOR | - | ALLIS-CHALMERS D160 | - |
| ALLIS-CHALMERS HD3 | - | TRACTOR | - | ALLIS-CHALMERS D175 | - |
| ALLIS-CHALMERS I60 | - | TRACTOR | - | - I60 | - |
| ALLIS-CHALMERS I600 | - | TRACTOR | - | - I600 | - |
| ALLIS-CHALMERS I600D | - | TRACTOR | - | - I600D | - |
| ALLIS-CHALMERS I60D | - | TRACTOR | - | - I60D | - |
| ALLIS-CHALMERS TL653 | - | MISC EQUIPMENT | - | - TL653 | - |
| ALLIS-CHALMERS TL655 | - | MISC EQUIPMENT | - | - TL655 | - |
| CASE/CASE IH 1175 | - | TRACTOR | - | - 1175 | - |
| CASE/CASE IH 1370 | - | TRACTOR | - | CASE/CASE IH 504 | - |
| CASE/CASE IH 980 | - | EXCAVATOR TRACKED | - | - 980 | - |
| CASE/CASE IH 980D | - | EXCAVATOR | - | - 980D | - |
| CASE/CASE IH A504BDT | - | ENGINE | - | - A504BDT | - |
| CASE/CASE IH A504D | - | ENGINE | - | - A504D | - |
| CASE/CASE IH T80 | - | CONCRETE PUMP | - | - T80 | - |
| CASE/CASE IH TB80 | - | CONCRETE PUMP | - | - TB80 | - |
| CASE/CASE IH W18 | - | LOADER WHEELED | - | CASE/CASE IH 401B | - |
| CASE/CASE IH W20 | - | LOADER WHEELED | - | CASE/CASE IH 401B | - |
| CASE/CASE IH W24B | - | LOADER WHEELED | - | - W24B | - |
| CASE/CASE IH W26B | - | LOADER WHEELED | - | CASE/CASE IH 504 | - |
| CASE/CASE IH W26LF | - | LOADER WHEELED | - | CASE/CASE IH 504 | - |
| GMC 1500 | - | TRUCK | - | GMC V6-305E | - |
| GMC 1500 | - | TRUCK | - | GMC V6-305C | - |
| GMC 2500 | - | TRUCK | - | GMC V6-305E | - |
| GMC 2500 | - | TRUCK | - | GMC V6-305C | - |
| GMC 3500 SERIES | - | TRUCK | - | GMC V6-305C | - |
| GMC 3500 SERIES | - | TRUCK | - | GMC V6-305E | - |
| GMC 7500 | - | TRUCK | - | GMC V6-351C | - |
| GMC 8500 | - | TRUCK | - | GMC V6-351C | - |
| HYSTER H150E | - | FORKLIFT | - | GMC V6-305 | - |
| HYSTER H150E | - | FORKLIFT | - | GMC V8-350 | - |
| HYSTER H250A | - | FORKLIFT | H SERIES | GMC V8-350 | - |
| HYSTER H250A | - | FORKLIFT | - | GMC V6-305 | - |
| HYSTER H250E | - | FORKLIFT | - | GMC V8-350 | - |
| HYSTER H250E | - | FORKLIFT | - | GMC V6-305 | - |
| HYSTER H300A | - | FORKLIFT | - | GMC V6-305 | - |
| HYSTER H300A | - | FORKLIFT | - | GMC V8-350 | - |
| HYSTER M200H | - | FORKLIFT | - | GMC V6-305 | - |
| HYSTER M400H | - | FORKLIFT | - | GMC V6-305 | - |
| HYSTER P125A | - | FORKLIFT | - | GMC V6-305 | - |
| HYSTER P150A | - | FORKLIFT | - | GMC V6-305 | - |
| HYSTER P165A | - | FORKLIFT | - | GMC V6-305 | - |
| HYSTER P180A | - | FORKLIFT | - | GMC V6-305 | - |
| KOMATSU D125 | - | DOZER TRACKED | - | - D125 | - |
| KOMATSU D125A | - | DOZER TRACKED | - | - D125A | - |
| TENNANT 600 | - | SWEEPER | - | - 600 | - |
| TENNANT 92SE | - | SWEEPER | - | - 92SE | - |
| UD TRUCKS UD1300 | - | TRUCK | - | NISSAN TD42T | - |
| UD TRUCKS UD1400 | - | TRUCK | - | NISSAN TD42T1 | - |
| UD TRUCKS UD1400 | - | TRUCK | - | NISSAN TD42T | - |
