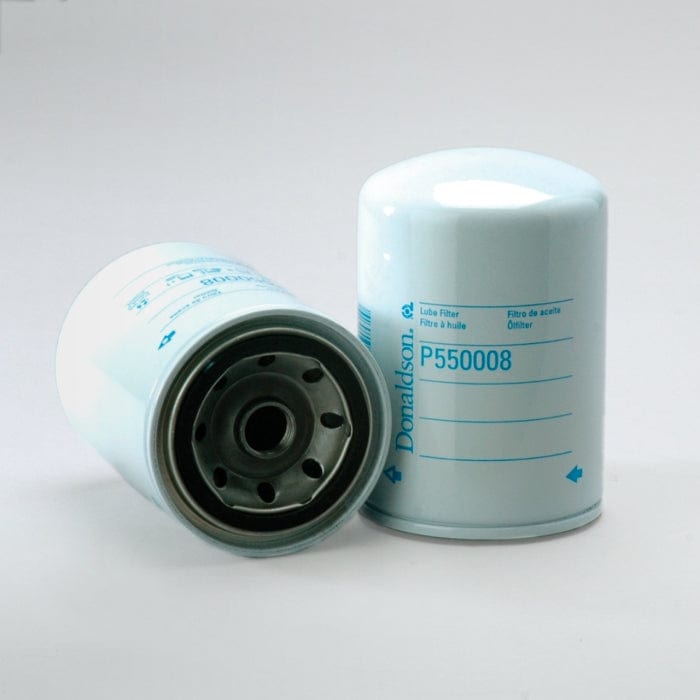

Lube Filter, Spin-On Full Flow - Donaldson P550008
Lube Filter, Spin-On Full Flow - Donaldson P550008
Regular price
£6.08
Regular price
Sale price
£6.08
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550008
Lube Filter, Spin-On Full Flow| Outer Diameter | 3.74 inch (95 mm) |
| Thread Size | 3/4-16 UN |
| Length | 5.35 inch (136 mm) |
| Gasket OD | 2.85 inch (72.4 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 40 micron |
| Efficiency Test Std | SAE J1858 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 7 psi (0.5 bar) |
| Bypass Valve Setting HR | 10 psi (0.7 bar) |
| Media Type | Cellulose |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Full-Flow |
| Style | Spin-On |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 95 mm (3.74 inch)
- Thread Size: 3/4-16 UN
- Length: 136 mm (5.35 inch)
- Gasket OD: 72.4 mm (2.85 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 40 micron
- Efficiency Test Std: SAE J1858
- Anti-Drainback Valve: Yes
- Bypass Valve: Yes
- Bypass Valve Setting LR: 0.5 bar (7 psi)
- Bypass Valve Setting HR: 0.7 bar (10 psi)
- Media Type: Cellulose
- Collapse Burst: 6.9 bar (100 psi)
- Type: Full-Flow
- Style: Spin-On
Packaged Dimensions
- Packaged Length: 0.098 m (3.92 inch)
- Packaged Width: 0.098 m (3.92 inch)
- Packaged Height: 0.140 m (5.59 inch)
- Packaged Weight: 0.608 kg (1.34 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: Türkiye
- NMFC Code: 069095-02
- HTS Code: 8421230090
- UPC Code: 742330040119
