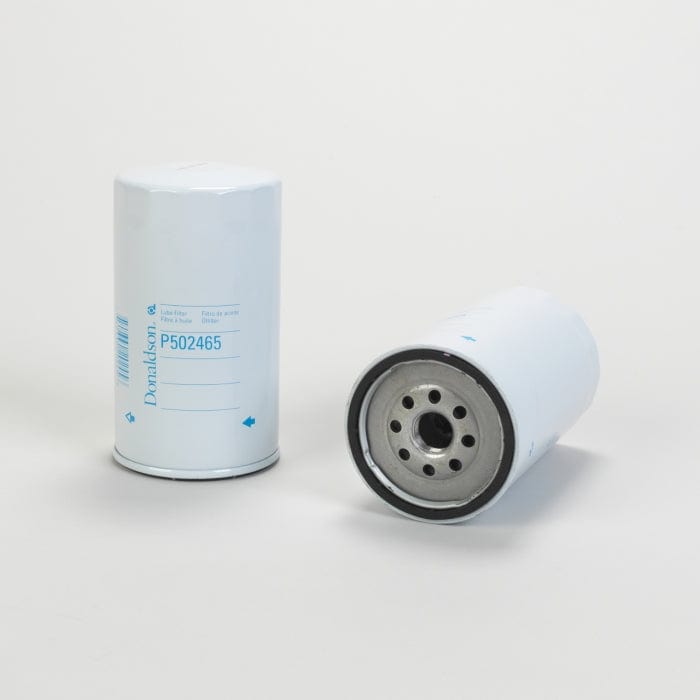

Lube Filter, Spin-On Full Flow - Donaldson P502465
Lube Filter, Spin-On Full Flow - Donaldson P502465
Regular price
£11.00
Regular price
Sale price
£11.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502465
Lube Filter, Spin-On Full Flow| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | M22 x 1.5 |
| Length | 6.50 inch (165 mm) |
| Gasket OD | 3.50 inch (89 mm) |
| Gasket ID | 3.19 inch (81 mm) |
| Efficiency 50% | 17 micron |
| Efficiency Test Std | ISO 16889 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 15 psi (1 bar) |
| Media Type | Cellulose |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | JCB 32004133 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: M22 x 1.5
- Length: 165 mm (6.50 inch)
- Gasket OD: 89 mm (3.50 inch)
- Gasket ID: 81 mm (3.19 inch)
- Efficiency 50%: 17 micron
- Efficiency Test Std: ISO 16889
- Anti-Drainback Valve: Yes
- Bypass Valve: Yes
- Bypass Valve Setting LR: 1 bar (15 psi)
- Media Type: Cellulose
- Collapse Burst: 6.9 bar (100 psi)
- Type: Full-Flow
- Style: Spin-On
- Primary Application: JCB 32004133
Packaged Dimensions
- Packaged Length: 0.103 m (4.10 inch)
- Packaged Width: 0.103 m (4.10 inch)
- Packaged Height: 0.170 m (6.80 inch)
- Packaged Weight: 0.661 kg (1.46 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330202456
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALCO | SP1294 | |
| COOPERS | LSF5193 | |
| FIL | ZP3165 | |
| JCB | 32004133 | |
| JCB | 32004133A | |
| JCB | 32004134 | |
| JCB | 320B4420 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| JCB 3C-14 | - | BACKHOE LOADER | - | JCB 444 | - |
| JCB 3C-15 | - | BACKHOE LOADER | - | JCB 444 | - |
| JCB 3CX | - | BACKHOE LOADER | - | PERKINS 1004-4 | - |
| JCB 3CX | - | BACKHOE LOADER | - | JCB 444 | - |
| JCB 3CX ECO | - | BACKHOE LOADER | - | JCB 444T | - |
| JCB 3DX | - | BACKHOE LOADER | - | JCB JCB444 ECO-91 | - |
| JCB 3DX SUPER | - | BACKHOE LOADER | - | JCB JCB444 ECO-109 | - |
| JCB 3DX SUPER | - | BACKHOE LOADER | - | JCB JCB444 ECO-91 | - |
| JCB 4CX | - | BACKHOE LOADER | - | JCB 444TA | - |
| JCB 4DX | - | BACKHOE LOADER | - | JCB JCB444 ECO-109 | - |
| JCB 535-125 TELEBAT | - | TELEHANDLER | - | JCB 444 | T4 |
| JCB 535-140 TELEBAT | - | TELEHANDLER | - | JCB 444 | T4 |
| JCB 536-60 | - | TELEHANDLER | - | JCB DIESELMAX 4.4L | Tier 3 |
| JCB 5CX | - | BACKHOE LOADER | - | JCB JCB444 | - |
| JCB 926 | - | FORKLIFT | - | - 926 | - |
| JCB DIESELMAX | - | ENGINE | TIER 3 | JCB DIESELMAX | - |
| JCB ECOMAX | - | ENGINE | TIER 4 | - ECOMAX | - |
| JCB G110QX | - | GENERATOR SET | - | PERKINS 4.4L | - |
| JCB G110X | - | GENERATOR SET | - | PERKINS 4.4L | - |
| JCB G50R | - | GENERATOR SET | - | JCB 444 | - |
| JCB G55 | - | GENERATOR SET | - | JCB 444 | - |
| JCB G55Q | - | GENERATOR SET | - | JCB 444 | - |
| JCB G55QX | - | GENERATOR SET | - | JCB 444 | - |
| JCB G55X | - | GENERATOR SET | - | JCB 444 | - |
| JCB G63 | - | GENERATOR SET | - | JCB 444 | - |
| JCB G63Q | - | GENERATOR SET | - | JCB 444 | - |
| JCB G63QX | - | GENERATOR SET | - | JCB 444 | - |
| JCB G80R | - | GENERATOR SET | - | JCB 444 | - |
| JCB G88 | - | GENERATOR SET | - | JCB 444 | - |
| JCB G88Q | - | GENERATOR SET | - | JCB 444 | - |
| JCB G88QX | - | GENERATOR SET | - | JCB 444 | - |
| JCB G88X | - | GENERATOR SET | - | JCB 444 | - |
| JCB JS130 | - | EXCAVATOR | - | JCB 444 | - |
| JCB JS145 | - | EXCAVATOR | - | JCB 444 | - |
| JCB JS160 | - | EXCAVATOR | - | JCB 444 | - |
