Lube Filter, Spin-On Full Flow - Donaldson P502458
Lube Filter, Spin-On Full Flow - Donaldson P502458
Regular price
£12.14
Regular price
Sale price
£12.14
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

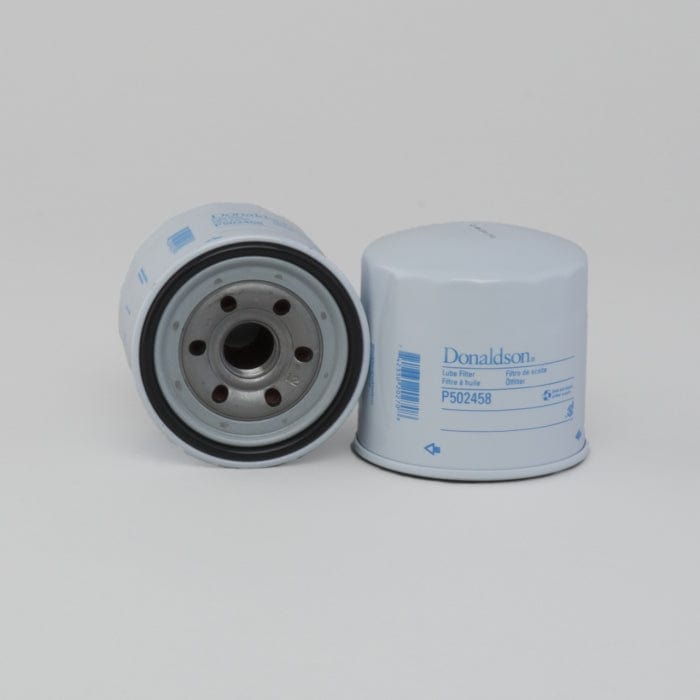

Donaldson P502458
Lube Filter, Spin-On Full FlowShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 102 mm (4.02 inch)
- Thread Size: 1-12 UN
- Length: 101 mm (3.98 inch)
- Gasket OD: 99 mm (3.90 inch)
- Gasket ID: 88 mm (3.46 inch)
- Efficiency 50%: 17 micron
- Efficiency 95%: 27 micron
- Efficiency 99%: 39 micron
- Efficiency Test Std: ISO 4548-12
- Anti-Drainback Valve: Yes
- Bypass Valve: Yes
- Bypass Valve Setting LR: 1 bar (15 psi)
- Media Type: Cellulose
- Collapse Burst: 6.9 bar (100 psi)
- Type: Full-Flow
- Style: Spin-On
- Primary Application: MITSUBISHI 32A4000400
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.118 m (4.72 inch)
- Packaged Weight: 0.690 kg (1.52 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: Türkiye
- HTS Code: 8421230090
- UPC Code: 742330202708
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALCO | SP841 | |
| AMERICAN MOTORS CORPORATION | OC15230 | |
| AMERICAN MOTORS CORPORATION | SFO0100 | |
| BIG A | 91106 | |
| CATERPILLAR | 1039737 | |
| CATERPILLAR | 2672528 | |
| CATERPILLAR-MITSUBISHI | 32A4000400M | |
| CATERPILLAR-MITSUBISHI | 32A4000400C | |
| CATERPILLAR-MITSUBISHI | 32A4000400 | |
| CATERPILLAR-MITSUBISHI | 32A4000100 | |
| CATERPILLAR-MITSUBISHI | 32A4010100 | |
| CLARK | 920519 | |
| EXMAN | SFO0100 | |
| EXMAN | OC15230 | |
| GREYFRIARS | 9062S | |
| INGERSOLL RAND | 85426831 | |
| INGERSOLL RAND | 85420831 | |
| INGERSOLL RAND | 85400156 | |
| INGERSOLL RAND | 85620490 | |
| INGERSOLL RAND | 85400158 | |
| KOBELCO | VA32A4000400D | |
| NISSAN/UD TRUCKS | 15208FM000 | |
| PEL-JOB | E7416515 | |
| PEL-JOB | 7416515 | |
| PERKINS | MP10169 | |
| TORO | 992143 | |
| VOLVO | 7416515 | |
| WAKO | 32A4000100 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 236B | - | SKID STEER LOADER | 200 SERIES | CATERPILLAR 3044T | - |
| CATERPILLAR 236B2 | - | SKID STEER LOADER | 200 SERIES | CATERPILLAR C3.4T | - |
| CATERPILLAR 236B3 | - | SKID STEER LOADER | 200 SERIES | CATERPILLAR C3.4T | - |
| CATERPILLAR 242B | - | SKID STEER LOADER | - | CATERPILLAR C3.4T | - |
| CATERPILLAR 252B2 | - | SKID STEER LOADER | 200 SERIES | CATERPILLAR C3.4T | - |
| CATERPILLAR 252B3 | - | SKID STEER LOADER | 200 SERIES | CATERPILLAR C3.4T | - |
| CATERPILLAR 256C | - | SKID STEER LOADER | 200 SERIES | CATERPILLAR C3.4T | - |
| CATERPILLAR 259B | - | SKID STEER LOADER | - | CATERPILLAR C3.4T | - |
| CATERPILLAR 262C | - | SKID STEER LOADER | 200 SERIES | CATERPILLAR 3044T | - |
| CATERPILLAR 262C | - | SKID STEER LOADER | - | CATERPILLAR C3.4T | - |
| CATERPILLAR 277C | - | SKID STEER LOADER | 200 SERIES | CATERPILLAR 3044T | - |
| CATERPILLAR 277C | - | SKID STEER LOADER | - | CATERPILLAR C3.4T | - |
| CATERPILLAR 279C | - | SKID STEER LOADER | 200 SERIES | CATERPILLAR C3.4T | - |
| CATERPILLAR 287C | - | SKID STEER LOADER | 200 SERIES | CATERPILLAR 3044T | - |
| CATERPILLAR 289C | - | SKID STEER LOADER | 200 SERIES | CATERPILLAR C3.4T | - |
| CATERPILLAR 906H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3044T | - |
| CATERPILLAR 907H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3044T | - |
| CATERPILLAR 908H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3044T | - |
| CATERPILLAR DP20 | - | FORKLIFT | - | - DP20 | - |
| CATERPILLAR DP20K | - | FORKLIFT | - | MITSUBISHI S4S | - |
| CATERPILLAR DP25 | - | FORKLIFT | - | - DP25 | - |
| CATERPILLAR DP30 | - | FORKLIFT | - | - DP30 | - |
| CATERPILLAR DP35 | - | FORKLIFT | - | - DP35 | - |
| HYUNDAI R95W-3 | - | EXCAVATOR WHEELED | ROBEX | MITSUBISHI S4S-DT | - |
| JUNGHEINRICH DFG 435 | - | FORKLIFT | - | MITSUBISHI S4S | - |
| KOBELCO SK14 SRLC3 | - | EXCAVATOR COMPACT | - | MITSUBISHI 8DC8 | - |
| MCCORMICK CX65L | - | TRACTOR | CXL SERIES | PERKINS 804C-33T | - |
| MCCORMICK CX75L | - | TRACTOR | CXL SERIES | PERKINS 804C-33T | - |
| MCCORMICK CX85L | - | TRACTOR | CXL SERIES | PERKINS 804C-33T | - |
| MITSUBISHI FD20 | - | FORKLIFT | FD SERIES | MITSUBISHI S4S | - |
| MITSUBISHI FD25K | - | FORKLIFT | - | MITSUBISHI S4S | - |
| MITSUBISHI FD28 | - | FORKLIFT | FD SERIES | MITSUBISHI S4S | - |
| MITSUBISHI FD30 | - | FORKLIFT | FD SERIES | MITSUBISHI 6DR5 | - |
| MITSUBISHI FD35A | - | FORKLIFT | FD SERIES | MITSUBISHI S4E2 | - |
| MITSUBISHI S4S | - | ENGINE | - | - S4S | - |
| NISSAN L02 | - | FORKLIFT | - | NISSAN 33L4C | - |
