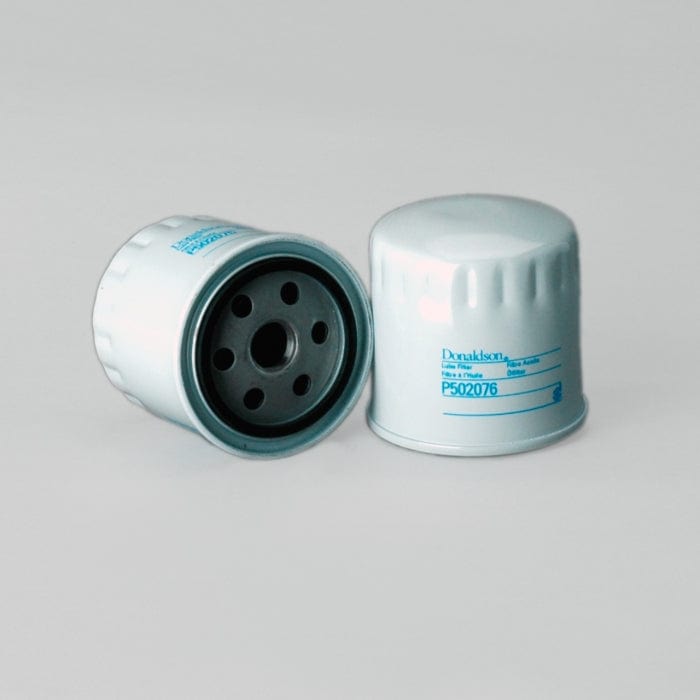

Lube Filter, Spin-On Full Flow - Donaldson P502076
Lube Filter, Spin-On Full Flow - Donaldson P502076
Regular price
£5.62
Regular price
Sale price
£5.62
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502076
Lube Filter, Spin-On Full Flow| Outer Diameter | 3.43 inch (87 mm) |
| Thread Size | M20 x 1.5 |
| Length | 3.5 inch (89 mm) |
| Gasket OD | 2.78 inch (70.5 mm) |
| Gasket ID | 2.44 inch (62.1 mm) |
| Efficiency 50% | 20 micron |
| Efficiency Beta 75 | 40 micron |
| Efficiency Test Std | JIS D 1611 |
| Anti-Drainback Valve | Yes |
| Bypass Valve Setting LR | 11 psi (0.76 bar) |
| Bypass Valve Setting HR | 17 psi (1.2 bar) |
| Media Type | Cellulose |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | PEUGEOT 110951 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 87 mm (3.43 inch)
- Thread Size: M20 x 1.5
- Length: 89 mm (3.5 inch)
- Gasket OD: 70.5 mm (2.78 inch)
- Gasket ID: 62.1 mm (2.44 inch)
- Efficiency 50%: 20 micron
- Efficiency Beta 75: 40 micron
- Efficiency Test Std: JIS D 1611
- Anti-Drainback Valve: Yes
- Bypass Valve Setting LR: 0.76 bar (11 psi)
- Bypass Valve Setting HR: 1.2 bar (17 psi)
- Media Type: Cellulose
- Collapse Burst: 6.9 bar (100 psi)
- Type: Full-Flow
- Style: Spin-On
- Primary Application: PEUGEOT 110951
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.099 m (3.94 inch)
- Packaged Weight: 0.404 kg (0.89 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-10
- HTS Code: 8421230090
- UPC Code: 742330109977
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN MOTORS CORPORATION | SFO468A | |
| AMERICAN MOTORS CORPORATION | OC33010 | |
| BOSCH-REXROTH | 0451103261 | |
| DEUTZ | 12850069 | |
| EXMAN | OC33010 | |
| EXMAN | SFO468A | |
| FORD | 5011788 | |
| FORD | 5011991 | |
| GT PIECES ET SERVICES | 2240061 | |
| LOMBARDINI | 2175131 | |
| NISSAN | 1520800Q0N | |
| NISSAN/UD TRUCKS | 152086F901 | |
| PURFLUX | LS867B | |
| PURFLUX | LS468 | |
| SDMO | 330560590 | |
| VOLKSWAGEN | 03L115561 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ANTONIO CARRARO 3800 | - | TRACTOR | TIGRETRAC | LOMBARDINI LDW1503B | - |
| ANTONIO CARRARO 3800 | - | TRACTOR | TIGRETRAC | LOMBARDINI LDW1503 | - |
| ANTONIO CARRARO 4300 | - | TRACTOR | SUPERTIGRE | LOMBARDINI LDW1504 | - |
| ATLAS COPCO 32DD | - | COMPRESSOR | - | DEUTZ F3M1008 | - |
| ATLAS WEYHAUSEN 32C | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F4M1008 | - |
| ATLAS WEYHAUSEN 32E | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F4M1008 | - |
| COMPAIR DS20 | - | COMPRESSOR | - | DEUTZ F3M1008 | - |
| GOLDONI TRACTORS 40DT IDEA | - | TRACTOR | - | LOMBARDINI FOCS | - |
| LOMBARDINI 1204 | - | ENGINE | - | - 1204 | - |
| LOMBARDINI 1204T | - | ENGINE | - | - 1204T | - |
| LOMBARDINI 1404 | - | ENGINE | - | - 1404 | - |
| MINSK 320 | - | TRACTOR | BELARUS | LOMBARDINI LDW1503 | - |
| MINSK 320A | - | TRACTOR | BELARUS | LOMBARDINI LDW1503 | - |
| NISSAN NAVARA D40 | 2010 | LIGHT TRUCK | - | NISSAN 3.0L V9X | - |
| NISSAN NAVARA D40 | 2014 | LIGHT TRUCK | - | NISSAN 3.0L V9X | - |
| NISSAN NAVARA D40 | 2013 | LIGHT TRUCK | - | NISSAN 3.0L V9X | - |
| NISSAN NAVARA D40 | 2012 | LIGHT TRUCK | - | NISSAN 3.0L V9X | - |
| NISSAN NAVARA D40 | 2011 | LIGHT TRUCK | - | NISSAN 3.0L V9X | - |
| REFORM-WERKE 970 | - | TRACTOR | MULI/TRANSPORTER | - 970 | - |
| SCHANZLIN 304 | - | TRACTOR | 300 SERIES | LOMBARDINI FOCS | - |
| ZETTELMEYER 302 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F4M1008 | - |
