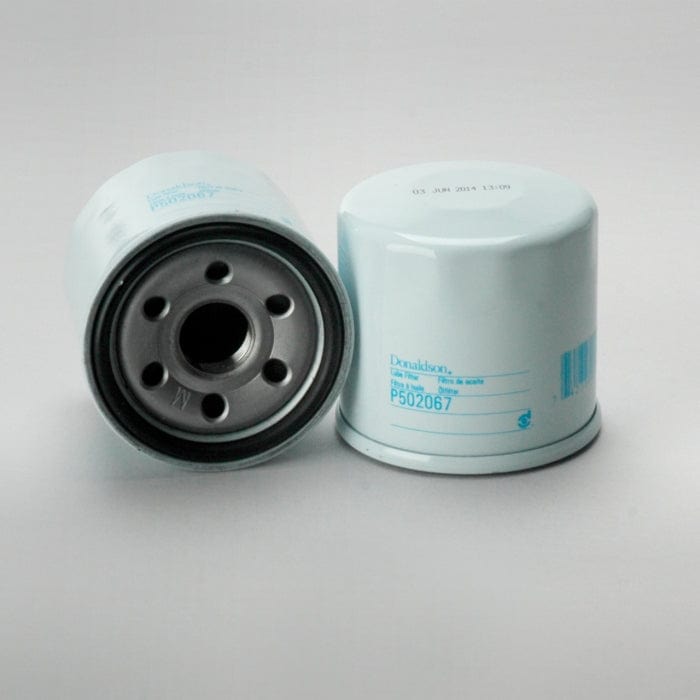

Lube Filter, Spin-On Full Flow - Donaldson P502067

Attributes

• Outer Diameter: 68 mm (2.68 inch)
• Thread Size: M20 x 1.5
• Length: 65 mm (2.56 inch)
• Gasket OD: 65 mm (2.56 inch)
• Gasket ID: 56 mm (2.20 inch)
• Efficiency 50%: 20 micron
• Efficiency 99%: 40 micron
• Efficiency Test Std: JIS D 1611
• Anti-Drainback Valve: Yes
• Bypass Valve: Yes
• Bypass Valve Setting LR: 0.8 bar (12 psi)
• Bypass Valve Setting HR: 1.2 bar (17 psi)
• Media Type: Cellulose
• Collapse Burst: 6.9 bar (100 psi)
• Type: Full-Flow
• Style: Spin-On

Packaged Dimensions

• Packaged Length: 0.23 FT
• Packaged Width: 0.23 FT
• Packaged Height: 0.25 FT
• Packaged Weight: 0.250 kg (0.55 lb)
• Packaged Volume: 0.000 m3 (0.01 ft3)

Other Information

• Country of Origin: Colombia
• NMFC Code: 069100-10
• HTS Code: 8421230090
• UPC Code: 742330109892
