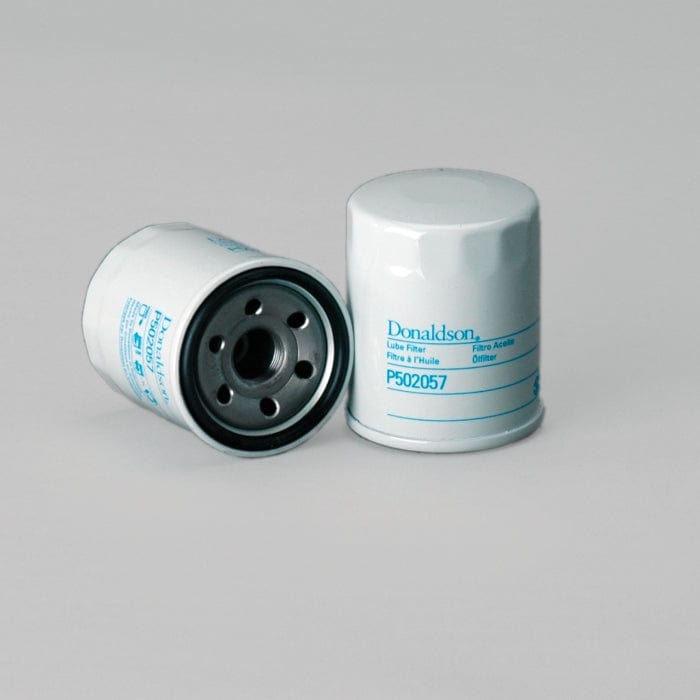

Lube Filter, Spin-On Full Flow - Donaldson P502057
Lube Filter, Spin-On Full Flow - Donaldson P502057
Regular price
£6.05
Regular price
Sale price
£6.05
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502057
Lube Filter, Spin-On Full Flow| Outer Diameter | 2.68 inch (68 mm) |
| Thread Size | M20 x 1.5 |
| Length | 3.35 inch (85 mm) |
| Gasket OD | 2.56 inch (65 mm) |
| Efficiency 50% | 20 micron |
| Efficiency Test Std | JIS D 1611 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 12 psi (0.8 bar) |
| Media Type | Cellulose |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | MAZDA FEY014302 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 68 mm (2.68 inch)
- Thread Size: M20 x 1.5
- Length: 85 mm (3.35 inch)
- Gasket OD: 65 mm (2.56 inch)
- Efficiency 50%: 20 micron
- Efficiency Test Std: JIS D 1611
- Anti-Drainback Valve: Yes
- Bypass Valve: Yes
- Bypass Valve Setting LR: 0.8 bar (12 psi)
- Media Type: Cellulose
- Collapse Burst: 6.9 bar (100 psi)
- Type: Full-Flow
- Style: Spin-On
- Primary Application: MAZDA FEY014302
Packaged Dimensions
- Packaged Length: 0.079 m (3.15 inch)
- Packaged Width: 0.079 m (3.15 inch)
- Packaged Height: 0.089 m (3.54 inch)
- Packaged Weight: 0.277 kg (0.61 lb)
- Packaged Volume: 0.001 m3 (0.02 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-10
- HTS Code: 8421230090
- UPC Code: 742330109823
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN MOTORS CORPORATION | T8306 | |
| AMERICAN MOTORS CORPORATION | MO5343 | |
| AMERICAN MOTORS CORPORATION | L5343 | |
| AMERICAN MOTORS CORPORATION | MO526 | |
| AMERICAN MOTORS CORPORATION | OF2036 | |
| AMERICAN MOTORS CORPORATION | SFO1622 | |
| AMERICAN MOTORS CORPORATION | OC14070 | |
| AMSOIL | EAO14 | |
| BIG A | 92357 | |
| CASE/CASE IH | C413 | |
| CHAMP | PH2868 | |
| DANIEL DOYEN | DOF4907 | |
| ECHLIN | OF92 | |
| EXMAN | OC14070 | |
| EXMAN | T8306 | |
| EXMAN | SFO1622 | |
| EXMAN | OF2036 | |
| EXMAN | L5343 | |
| EXMAN | MO5343 | |
| EXMAN | MO526 | |
| FEDERAL MOTORS | FMS2009 | |
| FSA | FO1058 | |
| MAZDA | FEY014302 | |
| MAZDA | ADM52105E | |
| MAZDA | B631E14302AA | |
| MAZDA | FE3R14302 | |
| PURFLUX | LS490A | |
| TEHO | 4311 | |
| UNION CITY BODY | C413 | |
| VIC | C413 | |
| VMC | LF502057 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| FORD ECONOVAN | - | LIGHT TRUCK | - | FORD 1.8L | - |
| FORD ECONOVAN | - | LIGHT TRUCK | - | FORD 2.0L L4 | - |
