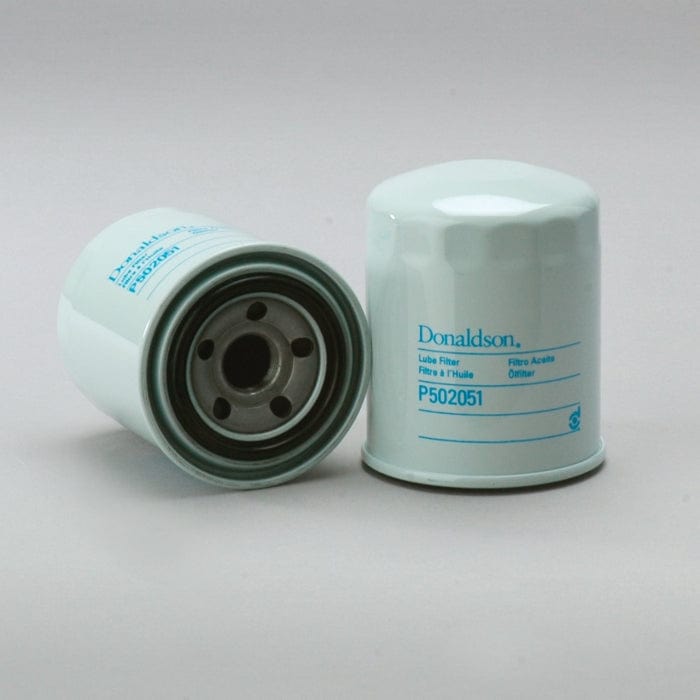

Lube Filter, Spin-On Full Flow - Donaldson P502051
Lube Filter, Spin-On Full Flow - Donaldson P502051
Regular price
£5.03
Regular price
Sale price
£5.03
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502051
Lube Filter, Spin-On Full Flow| Outer Diameter | 3.15 inch (80 mm) |
| Thread Size | M20 x 1.5 |
| Length | 3.94 inch (100 mm) |
| Gasket OD | 2.48 inch (63 mm) |
| Gasket ID | 1.81 inch (46 mm) |
| Efficiency 99% | 37 micron |
| Efficiency Test Std | JIS D 1611 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 12 psi (0.8 bar) |
| Bypass Valve Setting HR | 15 psi (1 bar) |
| Media Type | Cellulose |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | HONDA 15400PH1014 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 80 mm (3.15 inch)
- Thread Size: M20 x 1.5
- Length: 100 mm (3.94 inch)
- Gasket OD: 63 mm (2.48 inch)
- Gasket ID: 46 mm (1.81 inch)
- Efficiency 99%: 37 micron
- Efficiency Test Std: JIS D 1611
- Anti-Drainback Valve: Yes
- Bypass Valve: Yes
- Bypass Valve Setting LR: 0.8 bar (12 psi)
- Bypass Valve Setting HR: 1 bar (15 psi)
- Media Type: Cellulose
- Collapse Burst: 6.9 bar (100 psi)
- Type: Full-Flow
- Style: Spin-On
- Primary Application: HONDA 15400PH1014
Packaged Dimensions
- Packaged Length: 0.093 m (3.70 inch)
- Packaged Width: 0.093 m (3.70 inch)
- Packaged Height: 0.110 m (4.40 inch)
- Packaged Weight: 0.384 kg (0.85 lb)
- Packaged Volume: 0.001 m3 (0.03 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-09
- HTS Code: 8421230090
- UPC Code: 742330109809
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALCOA MARINE | HO523 | |
| ALCOA MARINE | H0523 | |
| AMERICAN MOTORS CORPORATION | OC12060 | |
| AMERICAN MOTORS CORPORATION | H0523 | |
| AMERICAN MOTORS CORPORATION | HO523 | |
| AMERICAN MOTORS CORPORATION | SFO3802 | |
| ATLAS COPCO | 2913311200 | |
| BOLENS | 1863399 | |
| CARRIER TRANSICOLD | 306011900 | |
| CARRIER TRANSICOLD | 251503800 | |
| CARRIER TRANSICOLD | 945539 | |
| CARRIER TRANSICOLD | 305032700 | |
| CASE/CASE IH | 200073A1 | |
| CASE/CASE IH | C532 | |
| CATERPILLAR | MD162326C | |
| CATERPILLAR | MD162326 | |
| CATERPILLAR | 1200664 | |
| COOPERS | Z920 | |
| CROSLAND | 2071 | |
| DANIEL DOYEN | DOF3402 | |
| DOOSAN | 40040500143 | |
| ECHLIN | OF51 | |
| EXMAN | OC12060 | |
| EXMAN | SFO3802 | |
| FIAAM | FT4908 | |
| FSA | FO1083 | |
| FSA | FO1084 | |
| GEHL | 121433 | |
| GEHL | 548941010210 | |
| HONDA | 15400PC6004 | |
| HONDA | 15400PH1003 | |
| HONDA | 15400PH1000 | |
| HONDA | 15400PE6003 | |
| HONDA | 15400PH1014 | |
| HONDA | 15400PH1004 | |
| HONDA | 15400PK1003 | |
| INGERSOLL RAND | 85426856 | |
| ISUZU | 8971122630 | |
| JOHN DEERE | MIU800650 | |
| JOHN DEERE | M801002 | |
| KOMATSU | A3EB1531550 | |
| KUBOTA | 1627132090 | |
| KUBOTA | 1627132092 | |
| KUBOTA | W21ESO1600 | |
| MITSUBISHI | MD162326M | |
| MITSUBISHI | MD162326 | |
| NISSAN/UD TRUCKS | 1520831L00 | |
| SANY | 60058455 | |
| SDMO | 330560546 | |
| TAKEUCHI | 11900535100 | |
| THERMO KING | 115712 | |
| THERMO KING | P305032700 | |
| UNION CITY BODY | C532 | |
| VIC | C406 | |
| VIC | C805 | |
| VMC | LF502051 | |
| VOLVO | 7417534 | |
| XCMG | 800156743 | |
| YANMAR | 12408535113 | |
| YANMAR | 11900535170 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AIRMAN-HOKUETSU AX30 | - | EXCAVATOR | - | KUBOTA V1505-E | - |
| CASE/CASE IH 1825B | - | SKID STEER LOADER | - | KUBOTA V1505-E | - |
| CATERPILLAR 303CCR | - | EXCAVATOR TRACKED | 300 SERIES | MITSUBISHI S3Q2 | - |
| CATERPILLAR 304C | - | EXCAVATOR TRACKED | 300 SERIES | MITSUBISHI S4Q2 | - |
| CATERPILLAR 305.5D | - | EXCAVATOR COMPACT | - | MITSUBISHI S4Q2T | - |
| CATERPILLAR 305C | - | EXCAVATOR TRACKED | 300 SERIES | MITSUBISHI S4Q2 | - |
| CATERPILLAR 904B | - | LOADER WHEELED | 900 SERIES | MITSUBISHI S4Q2T | - |
| CATERPILLAR 904H | - | LOADER WHEELED | 900 SERIES | MITSUBISHI S4Q2T | - |
| DITCH WITCH FX30 | - | TRENCHER | - | - FX30 | - |
| DITCH WITCH HT25 | - | TRENCHER | - | KUBOTA D1105-E | - |
| GEHL 3825 | - | SKID STEER LOADER | - | KUBOTA V1305B | - |
| GEHL 3825SX | - | SKID STEER LOADER | - | - 3825SX | - |
| GEHL SL3825 | - | SKID STEER LOADER | - | KUBOTA V1305B | - |
| GEHL SL3825SX | - | SKID STEER LOADER | - | - SL3825SX | - |
| HITACHI ZX27U-3 | - | EXCAVATOR | - | YANMAR 3TNV88 | - |
| HITACHI ZX30U-2 | - | EXCAVATOR COMPACT | - | YANMAR 3TNV88 | - |
| HITACHI ZX35U-2 | - | EXCAVATOR COMPACT | - | YANMAR 3TNV88 | - |
| HITACHI ZX40U-2 | - | EXCAVATOR COMPACT | - | YANMAR 4TNV88 | - |
| HONDA E SERIES | - | GENERATOR SET | - | HONDA GD1100 | - |
| HYSTER H40XM | - | FORKLIFT | - | ISUZU 2.0L | - |
| HYSTER H40XM | - | FORKLIFT | - | MAZDA 2.0L | - |
| HYSTER H40XM | - | FORKLIFT | - | ISUZU 2.2L | - |
| HYSTER S30XL | - | FORKLIFT | - | - S30XL | - |
| ISUZU NPR | - | TRUCK | - | ISUZU 4HG1T | - |
| JOHN DEERE 1050 | - | TRACTOR | 1000 SERIES | - 1050 | - |
| JOHN DEERE 27D | - | EXCAVATOR | - | YANMAR 3TNV88 | TIER 4 |
| JOHN DEERE 3215B | - | LAWN EQUIPMENT | TURF SYSTEM I | YANMAR 3TNE82 | - |
| JOHN DEERE 3225B | - | LAWN EQUIPMENT | TURF SYSTEM II | YANMAR 3TNE84 | - |
| JOHN DEERE 3235B | - | LAWN EQUIPMENT | TURF SYSTEM II | YANMAR 3TNE84 | - |
| JOHN DEERE 4052M | - | TRACTOR | 4M SERIES | YANMAR 4TNV86CT-MJT | - |
| JOHN DEERE 4052R | - | TRACTOR | 4R SERIES | YANMAR 4TNV86CT-MJT | - |
| JOHN DEERE 4066M | - | TRACTOR | 4M SERIES | YANMAR 4TNV86CHT-MJT | - |
| JOHN DEERE 4066R | - | TRACTOR | 4R SERIES | YANMAR 4TNV86CHT-MJT | - |
| JOHN DEERE 650 | - | TRACTOR | - | - 650 | - |
| JOHN DEERE 650 | - | TRACTOR | - | YITUO LR4105T | - |
| JOHN DEERE 750 | - | TRACTOR | - | YITUO LR4105T | - |
| JOHN DEERE 850 | - | TRACTOR | - | - 850 | - |
| JOHN DEERE 855 | - | TRACTOR | 800 SERIES | - 855 | - |
| JOHN DEERE 855 | - | TRACTOR | - | YANMAR 3TNE78 | - |
| JOHN DEERE 900HC | - | TRACTOR | - | - 900HC | - |
| JOHN DEERE 950 | - | TRACTOR | - | YANMAR 3T90J | - |
| JOHN DEERE F1145 | - | LAWN EQUIPMENT | - | YANMAR 3TN75 | - |
| JOHN DEERE F1145 | - | LAWN EQUIPMENT | - | YANMAR 3TN78 | - |
| KOMATSU WB150-2 | - | BACKHOE LOADER | - | KOMATSU S4D106 | - |
| KOMATSU WB150-2N | - | BACKHOE LOADER | - | KOMATSU S4D106 | - |
| KOMATSU WB150AWS-2N | - | BACKHOE LOADER | - | KOMATSU S4D106 | - |
| KOMATSU WB150PS-2 | - | BACKHOE LOADER | - | - WB150PS-2 | - |
| KOMATSU WB150PS-2 | - | BACKHOE LOADER | - | KOMATSU S4D106 | - |
| KOMATSU WB150PS-2N | - | BACKHOE LOADER | - | KOMATSU S4D106 | - |
| KUBOTA AM3300 | - | TRACTOR | - | - AM3300 | - |
| KUBOTA KX36-2 | - | EXCAVATOR COMPACT | KX SERIES | KUBOTA D1105E | - |
| KUBOTA KX41 | - | EXCAVATOR COMPACT | - | - KX41 | - |
| KUBOTA KX41 | - | EXCAVATOR COMPACT | KX SERIES | KUBOTA D1105E | - |
| KUBOTA KX41-2 | - | EXCAVATOR COMPACT | KX SERIES | KUBOTA D1105E | - |
| KUBOTA KX41-25U | - | EXCAVATOR COMPACT | - | - KX41-25U | - |
| KUBOTA KX412SV | - | EXCAVATOR COMPACT | KX SERIES | KUBOTA D1105EBH6 | - |
| KUBOTA KX61 | - | EXCAVATOR COMPACT | KX SERIES | KUBOTA D1105 | - |
| KUBOTA KX61-2 | - | EXCAVATOR COMPACT | KX SERIES | KUBOTA D1105E | - |
| KUBOTA KX71 | - | EXCAVATOR COMPACT | KX SERIES | KUBOTA V1502B4 | - |
| KUBOTA KX71-2 | - | EXCAVATOR COMPACT | KX SERIES | KUBOTA V1505 | - |
| KUBOTA KX91-2 | - | EXCAVATOR COMPACT | - | KUBOTA V1505E | - |
| KUBOTA KX91-2S | - | EXCAVATOR COMPACT | - | - KX91-2S | - |
| KUBOTA R310 | - | LOADER COMPACT WHEEL | R SERIES | KUBOTA V1305RP | - |
| KUBOTA U20 | - | EXCAVATOR | - | - U20 | - |
| KUBOTA U35 | - | EXCAVATOR | U SERIES | KUBOTA D1503MEBH2 | - |
| MITSUBISHI S4Q | - | ENGINE | - | - S4Q | - |
| PUTZMEISTER SP11DQR | - | CONCRETE PUMP | - | - SP11DQR | - |
| SULLAIR 35 | - | COMPRESSOR | - | - 35 | - |
| SULLAIR 45 | - | COMPRESSOR | - | - 45 | - |
| TAKEUCHI TB020 | - | BACKHOE LOADER | - | - TB020 | - |
| TAKEUCHI TL150 | - | LOADER COMPACT TRACKED | - | YANMAR 4TNV106T | - |
| TAKEUCHI TL160 | - | LOADER COMPACT TRACKED | - | YANMAR 4TNV106T | - |
| TEREX HR18 | - | EXCAVATOR COMPACT | - | MITSUBISHI S4Q2 | - |
| THOMAS 105 | - | SKID STEER LOADER | - | KUBOTA V1305-B | - |
| VERMEER V250 | - | TRENCHER | - | KUBOTA D1505 | - |
