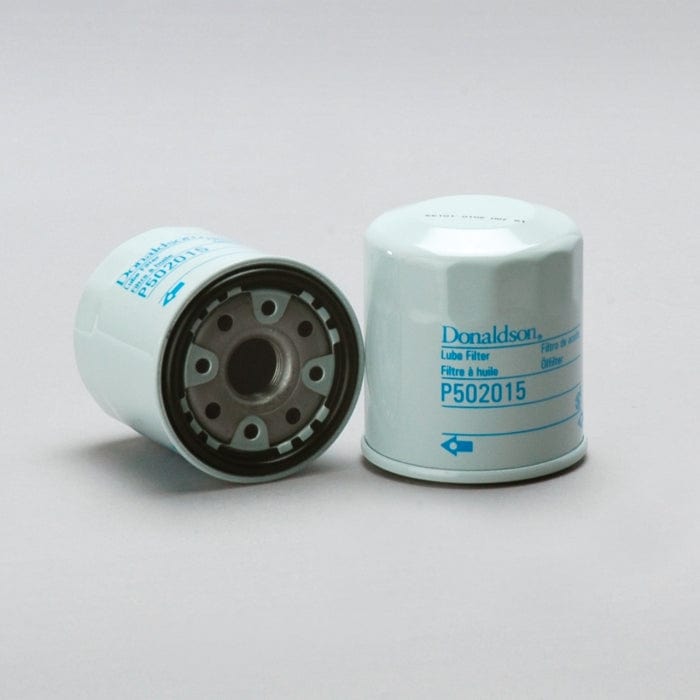

Lube Filter, Spin-On Full Flow - Donaldson P502015

Attributes

• Outer Diameter: 65 mm (2.56 inch)
• Thread Size: 3/4-16
• Length: 74 mm (2.91 inch)
• Gasket OD: 63.2 mm (2.49 inch)
• Gasket ID: 55.5 mm (2.19 inch)
• Efficiency 50%: 20 micron
• Efficiency Test Std: JIS D 1611
• Anti-Drainback Valve: Yes
• Bypass Valve: Yes
• Bypass Valve Setting LR: 0.8 bar (12 psi)
• Bypass Valve Setting HR: 1 bar (15 psi)
• Media Type: Cellulose
• Collapse Burst: 6.9 bar (100 psi)
• Type: Full-Flow
• Style: Spin-On
• Primary Application: TOYOTA 9091503001

Packaged Dimensions

• Packaged Length: 0.070 m (2.80 inch)
• Packaged Width: 0.070 m (2.80 inch)
• Packaged Height: 0.083 m (3.30 inch)
• Packaged Weight: 0.227 kg (0.50 lb)
• Packaged Volume: 0.000 m3 (0.02 ft3)

Other Information

• Country of Origin: Colombia
• NMFC Code: 069100-06
• HTS Code: 8421230090
• UPC Code: 742330109571
