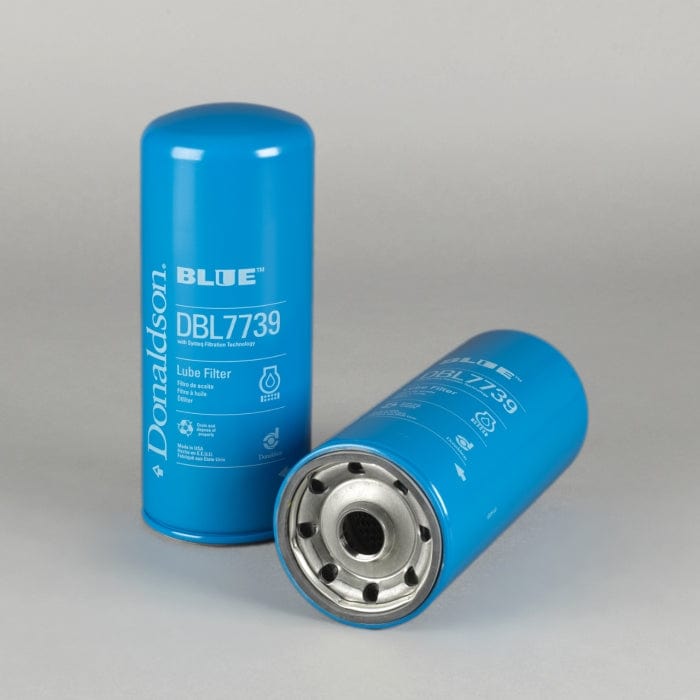

Lube Filter, Spin-On Full Flow Donaldson Blue - Donaldson DBL7739

Lube Filter, Spin-On Full Flow Donaldson Blue - Donaldson DBL7739

£31.62
£31.62
Sale Sold out
Shipping calculated at checkout.

Donaldson DBL7739

Lube Filter, Spin-On Full Flow Donaldson Blue
Outer Diameter 4.25 inch (108 mm)
Thread Size 1 1/8-16 UN
Length 10.31 inch (262 mm)
Gasket OD 3.91 inch (99.2 mm)
Gasket ID 3.57 inch (90.6 mm)
Efficiency 99% 15 micron
Efficiency Test Std ISO 4548-12
Media Type Synteq
Collapse Burst 149 psi (10.3 bar)
Type Full-Flow
Style Spin-On
Brand Donaldson BLUE®
View full details

Specifications

Attributes

  • Outer Diameter: 108 mm (4.25 inch)
  • Thread Size: 1 1/8-16 UN
  • Length: 262 mm (10.31 inch)
  • Gasket OD: 99.2 mm (3.91 inch)
  • Gasket ID: 90.6 mm (3.57 inch)
  • Efficiency 99%: 15 micron
  • Efficiency Test Std: ISO 4548-12
  • Media Type: Synteq
  • Collapse Burst: 10.3 bar (149 psi)
  • Type: Full-Flow
  • Style: Spin-On
  • Brand: Donaldson BLUE®

Packaged Dimensions

  • Packaged Length: 0.106 m (4.25 inch)
  • Packaged Width: 0.104 m (4.15 inch)
  • Packaged Height: 0.260 m (10.40 inch)
  • Packaged Weight: 1.153 kg (2.54 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330104699

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO PF857L
BIG A 92791XE
COMPAIR 9824650480001
JOHN DEERE GG17031266
LENZ CP103210B
LINDE 3562227706
MUSTANG 17031266
VMC LF7739

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
INGERSOLL RAND HP900W - COMPRESSOR - CATERPILLAR 3306TA -
INGERSOLL RAND VHP850WCAT - COMPRESSOR - CATERPILLAR 3306TA -
JOHN DEERE 14 - SKID STEER LOADER - - 14 -
