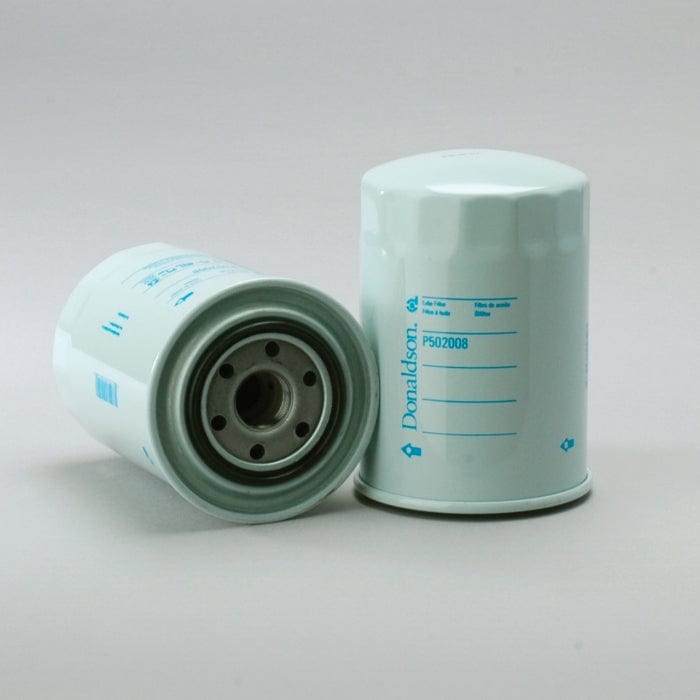

Lube Filter, Spin-On Combination - Donaldson P502008

Attributes

• Outer Diameter: 96 mm (3.78 inch)
• Thread Size: M26 x 1.5
• Length: 143 mm (5.63 inch)
• Gasket OD: 72 mm (2.83 inch)
• Gasket ID: 63 mm (2.48 inch)
• Efficiency 50%: 20 micron
• Efficiency Test Std: JIS D 1611
• Bypass Valve: Yes
• Bypass Valve Setting LR: 1.7 bar (25 psi)
• Bypass Valve Setting HR: 2.1 bar (30 psi)
• Media Type: Cellulose
• Collapse Burst: 6.9 bar (100 psi)
• Type: Combination
• Style: Spin-On
• Primary Application: MITSUBISHI ME013307

Packaged Dimensions

• Packaged Length: 0.099 m (3.94 inch)
• Packaged Width: 0.099 m (3.94 inch)
• Packaged Height: 0.148 m (5.91 inch)
• Packaged Weight: 0.580 kg (1.28 lb)
• Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

• Country of Origin: Germany
• HTS Code: 8421230090
• UPC Code: 742330109540
