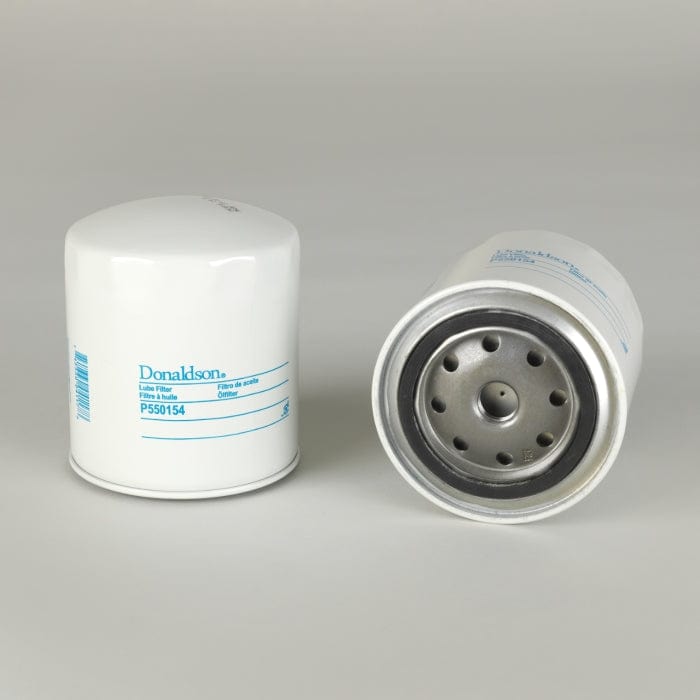

Lube Filter, Spin-On Bypass - Donaldson P550154
Lube Filter, Spin-On Bypass - Donaldson P550154
Regular price
Ā£10.34
Regular price
Sale price
Ā£10.34
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550154
Lube Filter, Spin-On BypassShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 95 mm (3.74 inch)
- Thread Size: 5/8-18 UN
- Length: 109 mm (4.29 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 45 micron
- Efficiency Test Std: SAE J806
- Media Type: Cellulose
- Collapse Burst: 5.2 bar (75 psi)
- Type: Bypass
- Style: Spin-On
- Primary Application: CASE/CASE IH 538836R1
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.108 m (4.33 inch)
- Packaged Weight: 0.363 kg (0.80 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-09
- HTS Code: 8421230090
- UPC Code: 742330041178
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF1028 | |
| AC DELCO | P1028 | |
| AMERICAN PARTS | 92051 | |
| BIG A | 92051 | |
| CASE/CASE IH | RV52 | |
| CASE/CASE IH | 538836R1 | |
| CATERPILLAR | 3I1598 | |
| CLARK | 6599587 | |
| DIAMANT BOART INC | 541204571 | |
| FORD | 9576P550154 | |
| GALION | D117364 | |
| GEHL | RV52 | |
| GROVE | RV52 | |
| HINO | 156071860A | |
| INTERNATIONAL | 538836R1 | |
| ISUZU | 94054123 | |
| JLG | 7014505 | |
| JLG | 7021872 | |
| JOHN DEERE | 538836R1 | |
| KOMATSU | 538836R1 | |
| KRALINATOR | L7704 | |
| NEW HOLLAND | 509928 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688316 | |
| VERMEER | 61367001 | |
| VERMEER | 28023001 | |
| VMC | LF550154 | |
| WISCONSIN | RV52 | |
| WISCONSIN | RV152 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 100 | - | COMPACTOR | - | CASE/CASE IH C123 | - |
| CASE/CASE IH 105 | - | COMBINE | - | CASE/CASE IH C153 | - |
| CASE/CASE IH 130 | - | TRACTOR | - | SISU 620.88 | - |
| CASE/CASE IH 161 | - | WINDROWER | - | CASE/CASE IH C123 | - |
| CASE/CASE IH 163 | - | WINDROWER | - | CASE/CASE IH C123 | - |
| CASE/CASE IH 201 | - | WINDROWER | - | CASE/CASE IH C135 | - |
| CASE/CASE IH 203 | - | COMBINE | - | CASE/CASE IH C153 | - |
| CASE/CASE IH 230 | - | TRACTOR | - | CASE/CASE IH C123 | - |
| CASE/CASE IH 2400B | - | TRACTOR | - | - 2400B | - |
| CASE/CASE IH 25+4 | - | TRENCHER | - | - 25+4 | - |
| CASE/CASE IH 25+4XP | - | TRENCHER | - | - 25+4XP | - |
| CASE/CASE IH 375 | - | WINDROWER | - | CASE/CASE IH C153 | - |
| CASE/CASE IH 404 | - | TRACTOR | - | - 404 | - |
| CASE/CASE IH 424 | - | TRACTOR | - | CASE/CASE IH C146 | - |
| CASE/CASE IH 444 | - | LAWN EQUIPMENT | - | CASE/CASE IH C146 | - |
| CASE/CASE IH 444 | - | LAWN EQUIPMENT | - | CASE/CASE IH C153 | - |
| CASE/CASE IH 4500B | - | FORKLIFT | 4000 SERIES | INTERNATIONAL C153 | - |
| CASE/CASE IH 660 | - | SPRAYER | HIGH CLEARANCE | CASE/CASE IH C146 | - |
| CASE/CASE IH 770 | - | SPRAYER | HIGH CLEARANCE | CASE/CASE IH C146 | - |
| CASE/CASE IH 780 | - | SPRAYER | HIGH CLEARANCE | CASE/CASE IH C146 | - |
| CASE/CASE IH AV SERIES | - | TRACTOR | - | CASE/CASE IH C123 | - |
| CASE/CASE IH BN | - | TRACTOR | - | CASE/CASE IH C113 | - |
| CASE/CASE IH FARMALL A | - | TRACTOR | - | CASE/CASE IH C113 | - |
| CASE/CASE IH FARMALL B | - | TRACTOR | - | CASE/CASE IH C113 | - |
| CASE/CASE IH TF76 | - | COMBINE | - | CASE/CASE IH C123 | - |
| CASE/CASE IH TF76 | - | COMBINE | - | CASE/CASE IH C113 | - |
| CHEVROLET W4 | - | TRUCK | - | ISUZU 4BD2TC | - |
| GEHL 1639 | - | PAVER | - | - 1639 | - |
| GROVE IZ48B | - | CRANE MOBILE | - | - IZ48B | - |
| GROVE MZ66B | - | CRANE MOBILE | - | - MZ66B | - |
| ISUZU 6SA1T | - | ENGINE | - | - 6SA1T | - |
| KOMATSU 2412B | - | LOADER | - | - 2412B | - |
| KOMATSU H25B | - | LOADER | - | - H25B | - |
| VERMEER 630 | - | CHIPPER | - | - 630 | - |
| VERMEER 630B | - | CHIPPER | - | - 630B | - |
| WISCONSIN VE4 | - | ENGINE | - | - VE4 | - |
| WISCONSIN VE4D | - | ENGINE | - | - VE4D | - |
| WISCONSIN VF4 | - | ENGINE | - | - VF4 | - |
| WISCONSIN VF4D | - | ENGINE | - | - VF4D | - |
| WISCONSIN VF4DG | - | ENGINE | LPG | - VF4DG | - |
| WISCONSIN VG4D | - | ENGINE | - | - VG4D | - |
| WISCONSIN VG4DG | - | ENGINE | LPG | - VG4DG | - |
| WISCONSIN VH4 | - | ENGINE | - | - VH4 | - |
| WISCONSIN VH4D | - | ENGINE | - | - VH4D | - |
| WISCONSIN VH4DG | - | ENGINE | LPG | - VH4DG | - |
| WISCONSIN W2-1235 | - | ENGINE | - | - W2-1235 | - |
