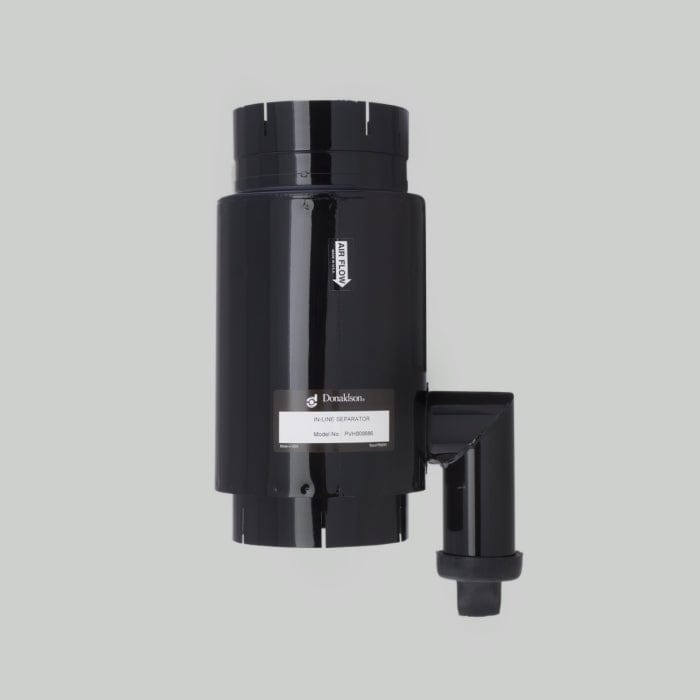

In-Line, Vertical Separator - Donaldson H000886

Attributes

• Length: 438.15 mm (17.25 inch)
• Inlet Diameter: 179.32 mm (7.06 inch)
• Outlet Diameter: 179.32 mm (7.06 inch)
• Body Diameter Maximum: 217.42 mm (8.56 inch)
• Rated Flow LR: 21.2 m³/min (749 cfm)
• Rated Flow HR: 31.1 m³/min (1098 cfm)
• Style: Vertical

Packaged Dimensions

• Packaged Length: 0.320 m (12.80 inch)
• Packaged Width: 0.228 m (9.10 inch)
• Packaged Height: 0.508 m (20.30 inch)
• Packaged Weight: 5.770 kg (12.71 lb)
• Packaged Volume: 0.038 m3 (1.37 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421310090
• UPC Code: 742330002865
