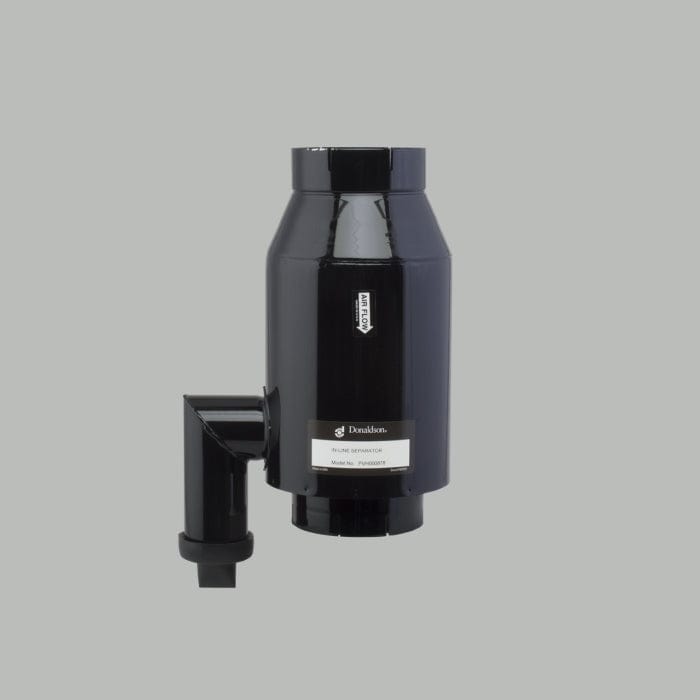

In-Line, Vertical Separator - Donaldson H000878

Attributes

• Length: 438 mm (17.24 inch)
• Inlet Diameter: 153.2 mm (6.03 inch)
• Outlet Diameter: 153.2 mm (6.03 inch)
• Body Diameter Maximum: 217.4 mm (8.56 inch)
• Rated Flow LR: 14.2 m³/min (501 cfm)
• Rated Flow HR: 31.1 m³/min (1098 cfm)
• Style: Vertical

Packaged Dimensions

• Packaged Length: 0.320 m (12.80 inch)
• Packaged Width: 0.225 m (9.00 inch)
• Packaged Height: 0.508 m (20.30 inch)
• Packaged Weight: 5.539 kg (12.20 lb)
• Packaged Volume: 0.038 m3 (1.35 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-08
• HTS Code: 8421197000
• UPC Code: 742330002858
