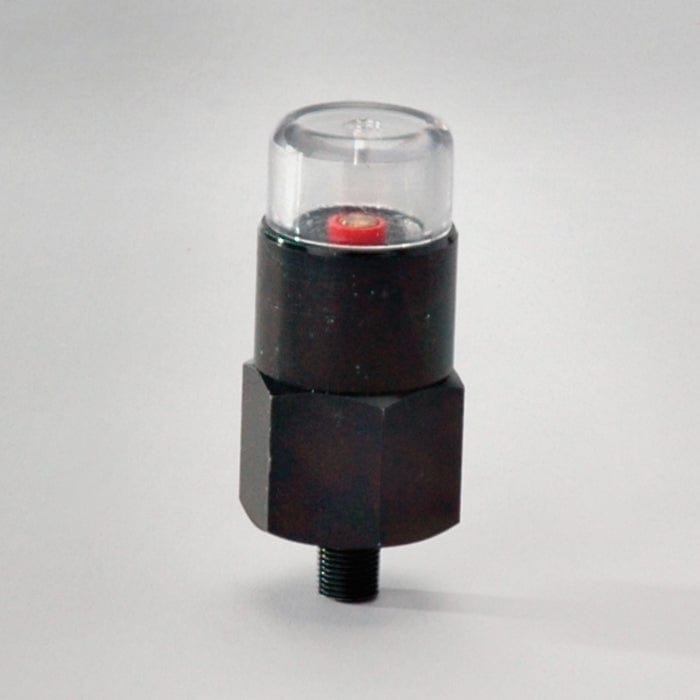

Hydraulic Indicator Assembly, Visual - Donaldson P171958
Hydraulic Indicator Assembly, Visual - Donaldson P171958
Regular price
£28.50
Regular price
Sale price
£28.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P171958
Hydraulic Indicator Assembly, Visual| Length | 2.91 inch (74 mm) |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 3 psi (0.2 bar) |
| Style | Visual |
| Type | Pop-Up Button |
| Reset Function | Auto |
| Indicator Actuation | 17 psid |
| Series | FIK |
Share
Collapsible content
Specifications
Attributes
- Length: 74 mm (2.91 inch)
- Bypass Valve: Yes
- Bypass Valve Setting LR: 0.2 bar (3 psi)
- Style: Visual
- Type: Pop-Up Button
- Reset Function: Auto
- Indicator Actuation: 17 psid
- Series: FIK
Packaged Dimensions
- Packaged Length: 0.039 m (1.57 inch)
- Packaged Width: 0.039 m (1.57 inch)
- Packaged Height: 0.079 m (3.15 inch)
- Packaged Weight: 0.210 kg (0.46 lb)
- Packaged Volume: 0.000 m3 (0.00 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 156600-07
- HTS Code: 8479899790
- UPC Code: 742330023136
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN AUGERS | 8FL200291 | |
| ASTRA | 121821 | |
| AVN HYDRAULICS | 141200 | |
| CASE/CASE IH | 79086283 | |
| FIAT | 79086283 | |
| LIEBHERR | 510669308 | |
| LOESING | 140130 | |
| NEW HOLLAND | 79086283 | |
| SAUER DANFOSS INC | 1510475 | |
| SAUER GMBH | 607351 | |
| SAUER SUNDSTRAND | 1510425 | |
| U.C.M. | 8509207 |
