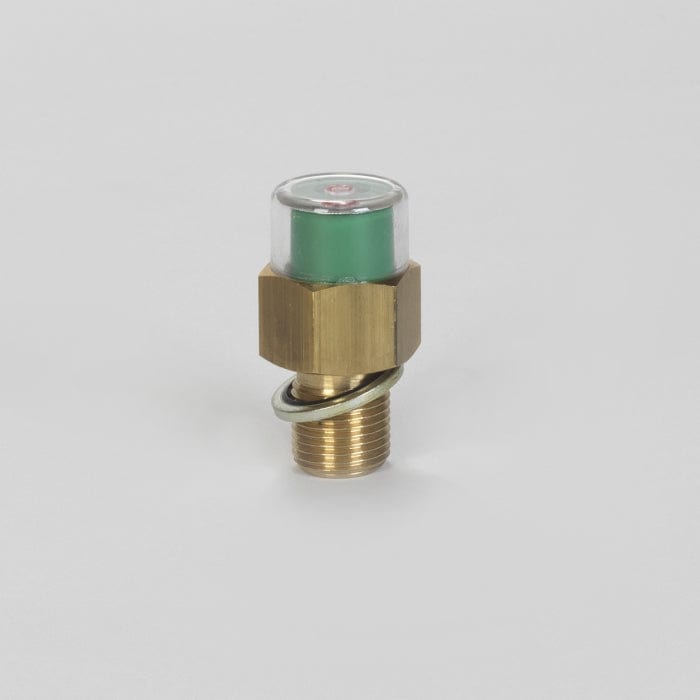

Hydraulic Indicator Assembly, Visual - Donaldson P171945
Hydraulic Indicator Assembly, Visual - Donaldson P171945
Regular price
£65.72
Regular price
Sale price
£65.72
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P171945
Hydraulic Indicator Assembly, Visual| Length | 2.32 inch (59 mm) |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 73 psi (5 bar) |
| Style | Visual |
| Type | Pop-Up Button |
| Reset Function | Auto |
| Indicator Actuation | 72.5 psid |
| Series | FPK02 |
Share
Collapsible content
Specifications
Attributes
- Length: 59 mm (2.32 inch)
- Bypass Valve: Yes
- Bypass Valve Setting LR: 5 bar (73 psi)
- Style: Visual
- Type: Pop-Up Button
- Reset Function: Auto
- Indicator Actuation: 72.5 psid
- Series: FPK02
Packaged Dimensions
- Packaged Length: 0.079 m (3.15 inch)
- Packaged Width: 0.079 m (3.15 inch)
- Packaged Height: 0.079 m (3.15 inch)
- Packaged Weight: 0.170 kg (0.37 lb)
- Packaged Volume: 0.001 m3 (0.02 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 156600-07
- HTS Code: 8479899790
- UPC Code: 742330023082
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CASE/CASE IH | 76028206 | |
| CORMACH | 8140076 | |
| FIAT | 76028206 | |
| HYSTER | S007982757 | |
| NEW HOLLAND | 76028206 | |
| SAUER DANFOSS INC | SQC00067 | |
| SAUER GMBH | 510900 | |
| SKYJACK | 138401A |
