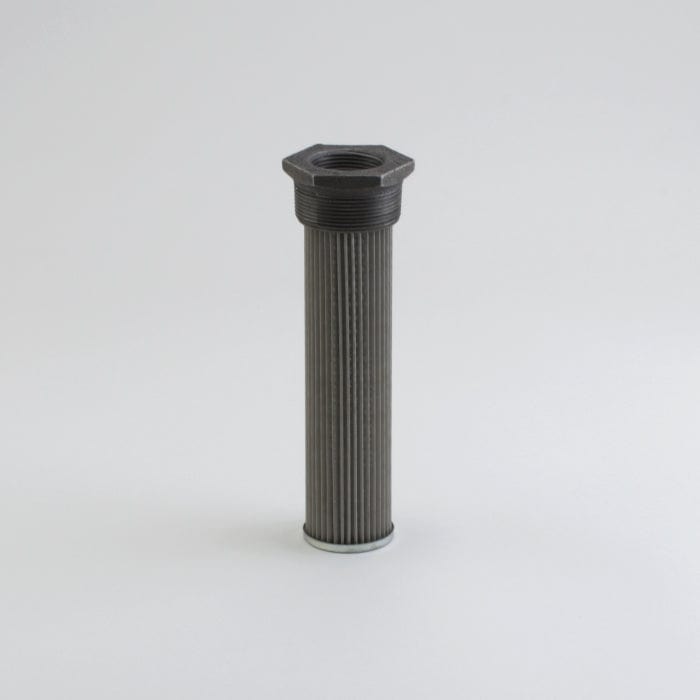

Hydraulic Filter, Strainer - Donaldson P562267

Attributes

• Mesh Rating: 150 micron
• Outer Diameter: 53.85 mm (2.12 inch)
• Thread Size: 1 1/4 NPT
• Length: 229.62 mm (9.04 inch)
• Efficiency Beta 2: 149 micron
• Bypass Valve: Yes
• Bypass Valve Setting LR: 0.4 bar (6 psi)
• Style: Strainer
• Media Type: Wire Mesh

Packaged Dimensions

• Packaged Length: 0.080 m (3.20 inch)
• Packaged Width: 0.068 m (2.70 inch)
• Packaged Height: 0.253 m (10.10 inch)
• Packaged Weight: 0.502 kg (1.11 lb)
• Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-05
• HTS Code: 8421298090
• UPC Code: 742330151440
