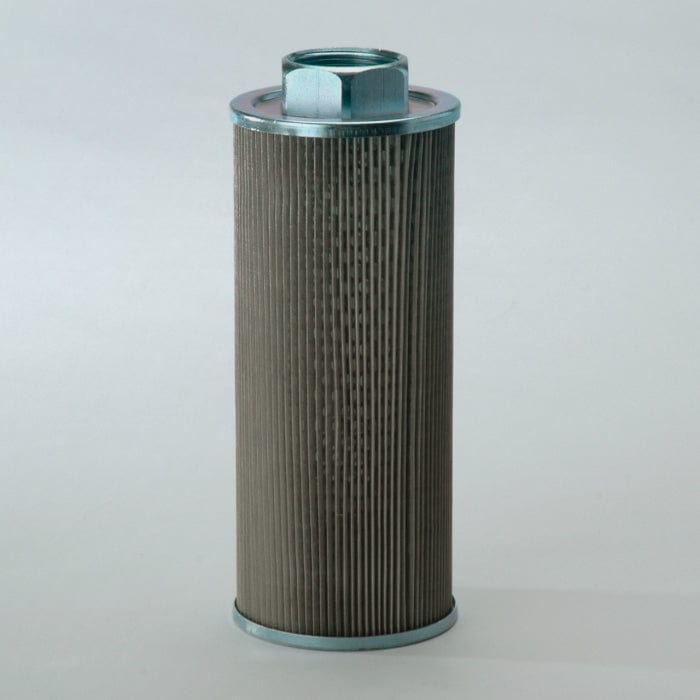

Hydraulic Filter, Strainer - Donaldson P173914

Attributes

• Mesh Rating: 150 micron
• Outer Diameter: 100.1 mm (3.94 inch)
• Thread Size: 1 1/2 NPT
• Length: 250.19 mm (9.85 inch)
• Efficiency Beta 2: 150 micron
• Bypass Valve: Yes
• Bypass Valve Setting LR: 0.2 bar (3 psi)
• Style: Strainer
• Media Type: Wire Mesh

Packaged Dimensions

• Packaged Length: 0.108 m (4.30 inch)
• Packaged Width: 0.105 m (4.20 inch)
• Packaged Height: 0.258 m (10.30 inch)
• Packaged Weight: 0.670 kg (1.48 lb)
• Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 133320
• HTS Code: 8421999099
• UPC Code: 742330024355
