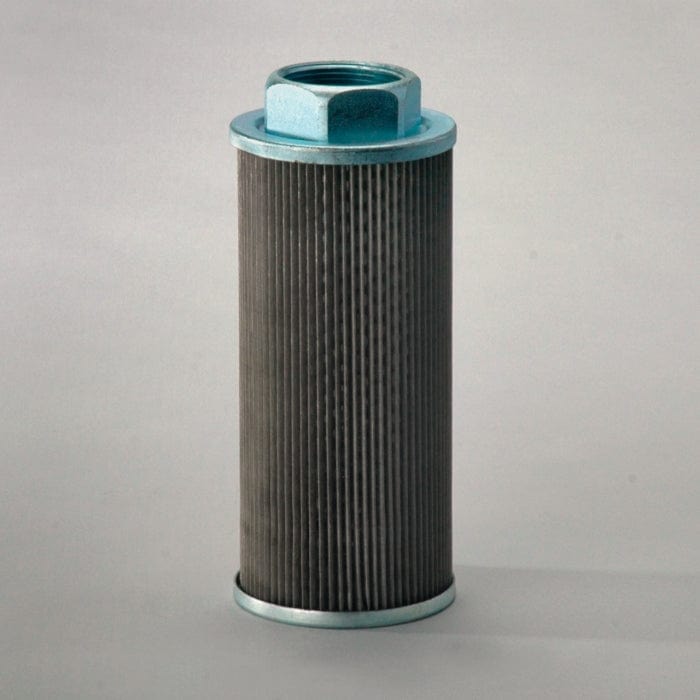

Hydraulic Filter, Strainer - Donaldson P173913

Attributes

• Mesh Rating: 150 micron
• Outer Diameter: 85.85 mm (3.38 inch)
• Thread Size: 1 1/2 NPT
• Length: 203.45 mm (8.01 inch)
• Efficiency Beta 2: 150 micron
• Bypass Valve: Yes
• Bypass Valve Setting LR: 0.2 bar (3 psi)
• Style: Strainer
• Media Type: Wire Mesh

Packaged Dimensions

• Packaged Length: 0.108 m (4.30 inch)
• Packaged Width: 0.103 m (4.10 inch)
• Packaged Height: 0.258 m (10.30 inch)
• Packaged Weight: 0.502 kg (1.11 lb)
• Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 133320
• HTS Code: 8421298090
• UPC Code: 742330024348
