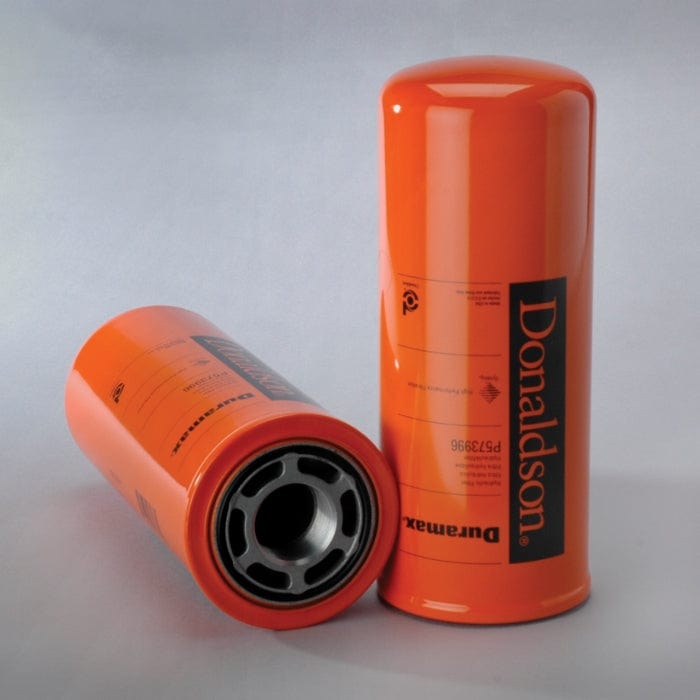

Hydraulic Filter, Spin-On Duramax - Donaldson P573996
Hydraulic Filter, Spin-On Duramax - Donaldson P573996
Regular price
£80.08
Regular price
Sale price
£80.08
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P573996
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 4.7 inch (119.4 mm) |
| Thread Size | 1 3/4-12 UN |
| Length | 11.63 inch (295.4 mm) |
| Gasket OD | 3.39 inch (86.03 mm) |
| Gasket ID | 3.11 inch (78.97 mm) |
| Efficiency Beta 1000 | 13 micron |
| Style | Spin-On |
| Series | HMK05/25 |
| Brand | Duramax® |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Filter Note: Water Glycol Compatibility with Fluorocarbon Seals
- Outer Diameter: 119.4 mm (4.7 inch)
- Thread Size: 1 3/4-12 UN
- Length: 295.4 mm (11.63 inch)
- Gasket OD: 86.03 mm (3.39 inch)
- Gasket ID: 78.97 mm (3.11 inch)
- Efficiency Beta 1000: 13 micron
- Style: Spin-On
- Series: HMK05/25
- Brand: Duramax®
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.128 m (5.10 inch)
- Packaged Width: 0.128 m (5.10 inch)
- Packaged Height: 0.305 m (12.20 inch)
- Packaged Weight: 1.932 kg (4.26 lb)
- Packaged Volume: 0.005 m3 (0.18 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 133320
- HTS Code: 8421298090
- UPC Code: 742330971765
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CATERPILLAR | 1343014 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 414E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 416B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 416C | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 416D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054B | - |
| CATERPILLAR 416E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR C4.4 | - |
| CATERPILLAR 420D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 420D | - | BACKHOE LOADER | - | CATERPILLAR 3054T | - |
| CATERPILLAR 420E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 420E | - | BACKHOE LOADER | - | CATERPILLAR C4.4T | - |
| CATERPILLAR 420E IT | - | BACKHOE LOADER | - | CATERPILLAR C4.4T | - |
| CATERPILLAR 422E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 424D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054B | - |
| CATERPILLAR 426B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 426C | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 428B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 428C | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 428D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 428DNF | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 428E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 430D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 430D | - | BACKHOE LOADER | - | CATERPILLAR 3054C | - |
| CATERPILLAR 430E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 430E | - | BACKHOE LOADER | - | CATERPILLAR C4.4 | - |
| CATERPILLAR 430E | - | BACKHOE LOADER | - | CATERPILLAR C4.4T | - |
| CATERPILLAR 432D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 432E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 434E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 436B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 436C | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 438B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 438C | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054 | - |
| CATERPILLAR 438D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 442D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 442E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 444E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 446 | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3114 | - |
| CATERPILLAR 446B | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3114T | - |
| CATERPILLAR 446D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3114T | - |
| CATERPILLAR 75E US | - | TRACTOR | - | CATERPILLAR 3176 | - |
| CATERPILLAR 793C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 834G | - | DOZER WHEELED | 800 SERIES | CATERPILLAR 3456CE | - |
| CATERPILLAR 834H | - | DOZER WHEELED | 800 SERIES | CATERPILLAR C18TA ACERT | - |
| CATERPILLAR 854G | - | DOZER WHEELED | 800 SERIES | CATERPILLAR 3508TA | - |
| CATERPILLAR 854K | - | DOZER WHEELED | 800 SERIES | CATERPILLAR C32TA ACERT | - |
| CATERPILLAR 85C | - | TRACTOR | - | CATERPILLAR 3176 | - |
| CATERPILLAR 85E | - | TRACTOR | - | CATERPILLAR 3196 | - |
| CATERPILLAR 953C | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR 963C | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR 973C | - | LOADER TRACKED | 900 SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR 988G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3456CE1 | - |
| CATERPILLAR 988H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C18TA ACERT | - |
| CATERPILLAR 992G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3508TA | - |
| CATERPILLAR 992K | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C32 ACERT | - |
| CATERPILLAR 993K | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C32TA ACERT | - |
| CATERPILLAR 994F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 994G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR D4E | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR RM500 | - | ROAD STABILIZER | RM SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR TH103 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR TH62 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR TH63 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR TH82 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR TH83 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
