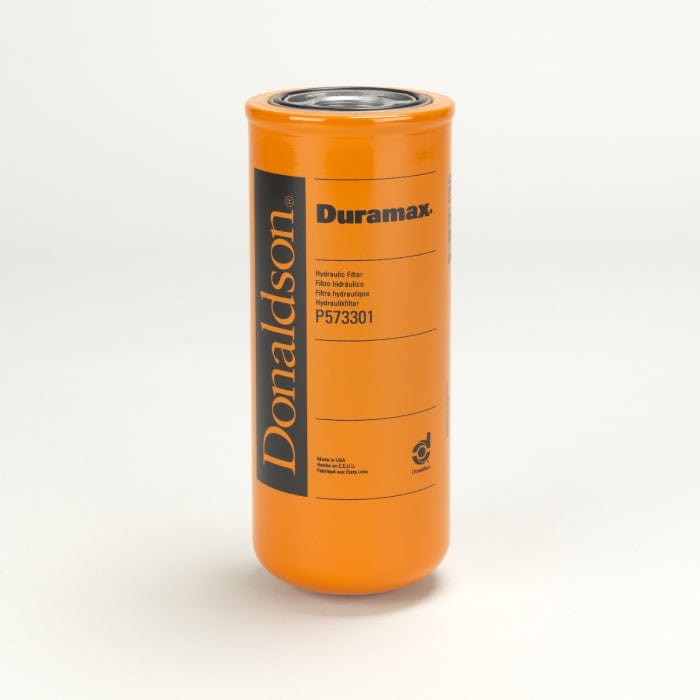

Hydraulic Filter, Spin-On Duramax - Donaldson P573301
Hydraulic Filter, Spin-On Duramax - Donaldson P573301
Regular price
£65.24
Regular price
Sale price
£65.24
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P573301
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 3.71 inch (94.23 mm) |
| Thread Size | 1 3/8-12 UN |
| Length | 9.44 inch (239.78 mm) |
| Gasket OD | 2.76 inch (70.15 mm) |
| Gasket ID | 2.48 inch (63.1 mm) |
| Efficiency Beta 2 | 150 micron |
| Collapse Burst | 200 psi (13.8 bar) |
| Style | Spin-On |
| Series | HMK04/24 |
| Brand | Duramax® |
| Media Type | Wire Mesh |
| Primary Application | CATERPILLAR 2226713 |
Share
Collapsible content
Specifications
Attributes
- Mesh Rating: 149 micron
- Outer Diameter: 94.23 mm (3.71 inch)
- Thread Size: 1 3/8-12 UN
- Length: 239.78 mm (9.44 inch)
- Gasket OD: 70.15 mm (2.76 inch)
- Gasket ID: 63.1 mm (2.48 inch)
- Efficiency Beta 2: 150 micron
- Collapse Burst: 13.8 bar (200 psi)
- Style: Spin-On
- Series: HMK04/24
- Brand: Duramax®
- Media Type: Wire Mesh
- Primary Application: CATERPILLAR 2226713
Packaged Dimensions
- Packaged Length: 0.103 m (4.10 inch)
- Packaged Width: 0.103 m (4.10 inch)
- Packaged Height: 0.255 m (10.20 inch)
- Packaged Weight: 1.196 kg (2.64 lb)
- Packaged Volume: 0.003 m3 (0.10 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 133320
- HTS Code: 8421298090
- UPC Code: 742330969199
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CATERPILLAR | 2226713 | |
| JOHN DEERE | T319172 | |
| MCNEILUS | 1331754 | |
| MCNEILUS | 1559643 | |
| SCHWING | 30389448 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 797B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3524B | - |
| CATERPILLAR 834H | - | DOZER WHEELED | 800 SERIES | CATERPILLAR C18TA ACERT | - |
| CATERPILLAR 844H | - | DOZER WHEELED | 800 SERIES | CATERPILLAR C27TA ACERT | - |
| CATERPILLAR 854G | - | DOZER WHEELED | 800 SERIES | CATERPILLAR 3508TA | - |
| CATERPILLAR 854K | - | DOZER WHEELED | 800 SERIES | CATERPILLAR C32TA ACERT | - |
| CATERPILLAR 988H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C18TA ACERT | - |
| CATERPILLAR 988K | - | LOADER WHEELED | - | CATERPILLAR C18 | - |
| CATERPILLAR 990 II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3412TAE1 | - |
| CATERPILLAR 990H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C27TA ACERT | - |
| CATERPILLAR 992G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3508TA | - |
| CATERPILLAR 992K | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C32 ACERT | - |
| CATERPILLAR 993K | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C32TA ACERT | - |
