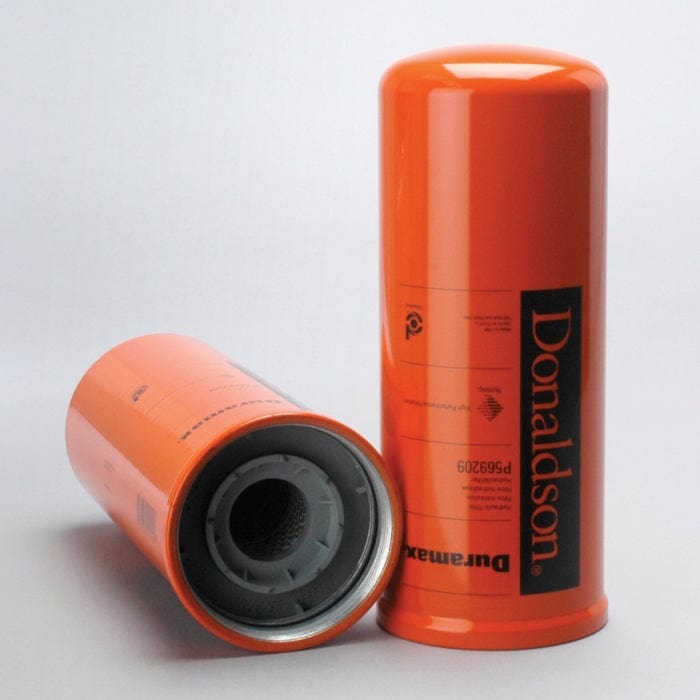

Hydraulic Filter, Spin-On Duramax - Donaldson P569209
Hydraulic Filter, Spin-On Duramax - Donaldson P569209
Regular price
£95.72
Regular price
Sale price
£95.72
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P569209
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 4.55 inch (115.57 mm) |
| Thread Size | M108 x 2.5 |
| Length | 11.63 inch (295.4 mm) |
| Gasket ID | 4.06 inch (103 mm) |
| Efficiency Beta 1000 | 7 micron |
| Style | Spin-On |
| Series | HNK04/05 |
| Brand | Duramax® |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 115.57 mm (4.55 inch)
- Thread Size: M108 x 2.5
- Length: 295.4 mm (11.63 inch)
- Gasket ID: 103 mm (4.06 inch)
- Efficiency Beta 1000: 7 micron
- Style: Spin-On
- Series: HNK04/05
- Brand: Duramax®
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.130 m (5.20 inch)
- Packaged Width: 0.130 m (5.20 inch)
- Packaged Height: 0.303 m (12.10 inch)
- Packaged Weight: 1.634 kg (3.60 lb)
- Packaged Volume: 0.005 m3 (0.19 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330194195
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CASE/CASE IH | 84162478 |
