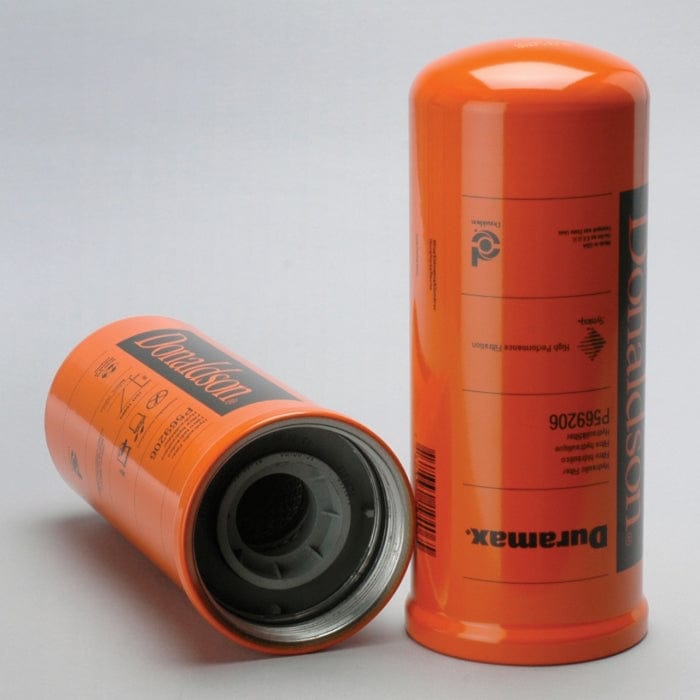

Hydraulic Filter, Spin-On Duramax - Donaldson P569206
Hydraulic Filter, Spin-On Duramax - Donaldson P569206
Regular price
£55.44
Regular price
Sale price
£55.44
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P569206
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 3.69 inch (93.8 mm) |
| Thread Size | M87 x 2.5 |
| Length | 9.44 inch (239.8 mm) |
| Gasket ID | 3.27 inch (83 mm) |
| Efficiency Beta 1000 | 11 micron |
| Style | Spin-On |
| Series | HNK04/05 |
| Brand | Duramax® |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93.8 mm (3.69 inch)
- Thread Size: M87 x 2.5
- Length: 239.8 mm (9.44 inch)
- Gasket ID: 83 mm (3.27 inch)
- Efficiency Beta 1000: 11 micron
- Style: Spin-On
- Series: HNK04/05
- Brand: Duramax®
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.105 m (4.20 inch)
- Packaged Width: 0.103 m (4.10 inch)
- Packaged Height: 0.255 m (10.20 inch)
- Packaged Weight: 1.110 kg (2.45 lb)
- Packaged Volume: 0.003 m3 (0.10 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330194065
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CASE/CASE IH | 87552298 | |
| CASE/CASE IH | 47607598 | |
| CASE/CASE IH | 47833566 | |
| CASE/CASE IH | 87478098 | |
| CASE/CASE IH | 84202794 | |
| CASE/CASE IH | 47456328 | |
| CASE/CASE IH | 84204154 | |
| CASE/CASE IH | 84577086 | |
| CASE/CASE IH | 84278070 | |
| CASE/CASE IH | 84162484 | |
| CASE/CASE IH | 47833564 | |
| CASE/CASE IH | 47854977 | |
| CASE/CASE IH | 47855638 | |
| DYNAPAC | 4812112262 | |
| JOHN DEERE | T366738 | |
| JOHN DEERE | RE577250 | |
| JOHN DEERE | AT280007 | |
| NEW HOLLAND | 84162483 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH MAGNUM 340 | - | TRACTOR | - | CASE/CASE IH FPT8.7L | - |
| JOHN DEERE 8310RT | - | TRACTOR TRACKED | 8RT SERIES | JOHN DEERE 6090 | - |
| JOHN DEERE 8320RT | - | TRACTOR TRACKED | 8RT SERIES | JOHN DEERE 6090H | - |
| JOHN DEERE 8320RT | - | TRACTOR | 8R SERIES | JOHN DEERE PSS 9.0L | - |
| JOHN DEERE 8335RT | - | TRACTOR TRACKED | - | JOHN DEERE PSX9.0L | - |
| JOHN DEERE 8335RT | - | TRACTOR TRACKED | 8RT SERIES | JOHN DEERE 6090 | - |
| JOHN DEERE 8345RT | - | TRACTOR TRACKED | - | JOHN DEERE PSS9.0L | - |
| JOHN DEERE 8345RT | - | TRACTOR | 8RT SERIES | JOHN DEERE 6090H | - |
| JOHN DEERE 8360RT | - | TRACTOR TRACKED | - | JOHN DEERE PSX9.0L | - |
| JOHN DEERE 8360RT | - | TRACTOR TRACKED | 8RT SERIES | JOHN DEERE 6090 | - |
| JOHN DEERE 8370RT | - | TRACTOR | 8R SERIES | JOHN DEERE PSS 9.0L | - |
| JOHN DEERE 8RT310 | - | TRACTOR TRACKED | - | JOHN DEERE PSS9.0L | - |
| JOHN DEERE 8RT340 | - | TRACTOR TRACKED | - | JOHN DEERE PSS9.0L | - |
| JOHN DEERE 8RT370 | - | TRACTOR TRACKED | - | JOHN DEERE PSS9.0L | - |
| JOHN DEERE 8RT410 | - | TRACTOR TRACKED | - | JOHN DEERE PSS9.0L | - |
| JOHN DEERE 9370R | - | TRACTOR | - | JOHN DEERE PSS 9.0L | - |
| JOHN DEERE 9420R | - | TRACTOR | - | JOHN DEERE PSS 13.5L | - |
| JOHN DEERE 9420RX | - | TRACTOR | - | JOHN DEERE PSS 13.5L | - |
| JOHN DEERE 9460RT | - | TRACTOR TRACKED | - | JOHN DEERE PSX 13.5L | - |
| JOHN DEERE 9470R | - | TRACTOR | - | JOHN DEERE PSS 13.5L | - |
| JOHN DEERE 9470RT | - | TRACTOR | - | JOHN DEERE PSS 13.5L | - |
| JOHN DEERE 9470RX | - | TRACTOR | - | JOHN DEERE PSS 13.5L | - |
| JOHN DEERE 9510RT | - | TRACTOR TRACKED | - | JOHN DEERE PSX 13.5L | - |
| JOHN DEERE 9520R | - | TRACTOR | - | JOHN DEERE PSS 13.5L | - |
| JOHN DEERE 9520RT | - | TRACTOR | - | JOHN DEERE PSS 13.5L | - |
| JOHN DEERE 9520RX | - | TRACTOR | - | JOHN DEERE PSS 13.5L | - |
| JOHN DEERE 9560RT | - | TRACTOR TRACKED | - | JOHN DEERE PSX 13.5L | - |
| JOHN DEERE 9570R | - | TRACTOR | - | CUMMINS QSK15 | - |
| JOHN DEERE 9570RT | - | TRACTOR | - | CUMMINS QSK15 | - |
| JOHN DEERE 9570RX | - | TRACTOR | - | CUMMINS QSK15 | - |
| JOHN DEERE 9620R | - | TRACTOR | - | CUMMINS QSK15 | - |
| JOHN DEERE 9620RX | - | TRACTOR | - | CUMMINS QSX15 | - |
| JOHN DEERE 9R390 | - | TRACTOR | - | JOHN DEERE PowerTech 13.6L | - |
| JOHN DEERE 9R440 | - | TRACTOR | - | JOHN DEERE PowerTech 13.6L | - |
| JOHN DEERE 9R490 | - | TRACTOR | - | JOHN DEERE PowerTech 13.6L | - |
| JOHN DEERE 9R540 | - | TRACTOR | - | JOHN DEERE PowerTech 13.6L | - |
| JOHN DEERE 9R590 | - | TRACTOR | - | JOHN DEERE PowerTech 13.6L | - |
| JOHN DEERE 9R640 | - | TRACTOR | - | CUMMINS X15-605 | - |
| JOHN DEERE 9RT470 | - | TRACTOR TRACKED | - | JOHN DEERE PowerTech 13.6L | - |
| JOHN DEERE 9RT490 | - | TRACTOR TRACKED | - | JOHN DEERE PowerTech 13.6L | - |
| JOHN DEERE 9RT520 | - | TRACTOR TRACKED | - | JOHN DEERE PowerTech 13.6L | - |
| JOHN DEERE 9RT540 | - | TRACTOR TRACKED | - | JOHN DEERE PowerTech 13.6L | - |
| JOHN DEERE 9RT590 | - | TRACTOR TRACKED | - | JOHN DEERE 9RT590 | - |
| JOHN DEERE 9RX540 | - | TRACTOR TRACKED | - | JOHN DEERE JD14X | - |
| JOHN DEERE 9RX590 | - | TRACTOR TRACKED | - | JOHN DEERE JD14X | - |
| JOHN DEERE 9RX640 | - | TRACTOR TRACKED | - | JOHN DEERE JD14X | - |
| JOHN DEERE X91000 | - | COMBINE | - | JOHN DEERE PWS 13.6L | - |
| JOHN DEERE X91100 | - | COMBINE | - | JOHN DEERE PSS 13.6L | - |
| NEW HOLLAND C227 | - | LOADER COMPACT TRACKED | C SERIES | IVECO F5C E9454 | - |
| NEW HOLLAND C232 | - | LOADER COMPACT TRACKED | C SERIES | IVECO F5C E9454 | - |
| NEW HOLLAND C238 | - | LOADER COMPACT TRACKED | C SERIES | IVECO F5C E9454 | - |
| NEW HOLLAND L213 | - | SKID STEER LOADER | L SERIES | CUMMINS ISM | - |
| NEW HOLLAND L215 | - | SKID STEER LOADER | L SERIES | CUMMINS ISM | - |
| NEW HOLLAND L218 | - | SKID STEER LOADER | L SERIES | CUMMINS ISM | - |
| NEW HOLLAND L220 | - | SKID STEER LOADER | L SERIES | CUMMINS ISM | - |
| NEW HOLLAND L223 | - | SKID STEER LOADER | L SERIES | FPT INDUSTRIAL F5C E9454 | - |
| NEW HOLLAND L225 | - | SKID STEER LOADER | L SERIES | FPT INDUSTRIAL F5C E9454 | - |
| NEW HOLLAND L230 | - | SKID STEER LOADER | L SERIES | IVECO F5C E9454 | - |
