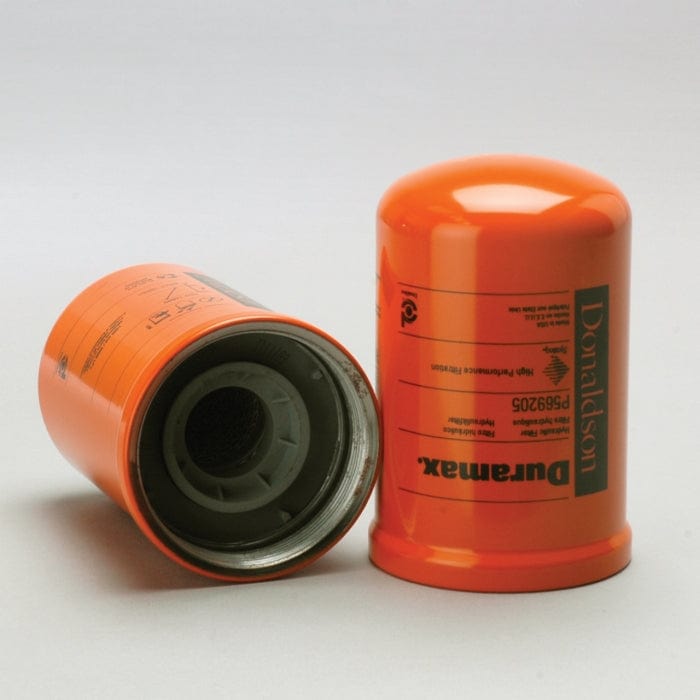

Hydraulic Filter, Spin-On Duramax - Donaldson P569205
Hydraulic Filter, Spin-On Duramax - Donaldson P569205
Regular price
£60.00
Regular price
Sale price
£60.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P569205
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 3.69 inch (93.8 mm) |
| Thread Size | M87 x 2.5 |
| Length | 5.97 inch (151.6 mm) |
| Gasket ID | 3.27 inch (83 mm) |
| Efficiency Beta 1000 | 11 micron |
| Style | Spin-On |
| Series | HNK04/05 |
| Brand | Duramax® |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93.8 mm (3.69 inch)
- Thread Size: M87 x 2.5
- Length: 151.6 mm (5.97 inch)
- Gasket ID: 83 mm (3.27 inch)
- Efficiency Beta 1000: 11 micron
- Style: Spin-On
- Series: HNK04/05
- Brand: Duramax®
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.103 m (4.10 inch)
- Packaged Width: 0.103 m (4.10 inch)
- Packaged Height: 0.170 m (6.80 inch)
- Packaged Weight: 0.795 kg (1.75 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330194058
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CASE/CASE IH | 47862588 | |
| CASE/CASE IH | 84479005 | |
| NEW HOLLAND | 84476005 | |
| NEW HOLLAND | 87528218 |
