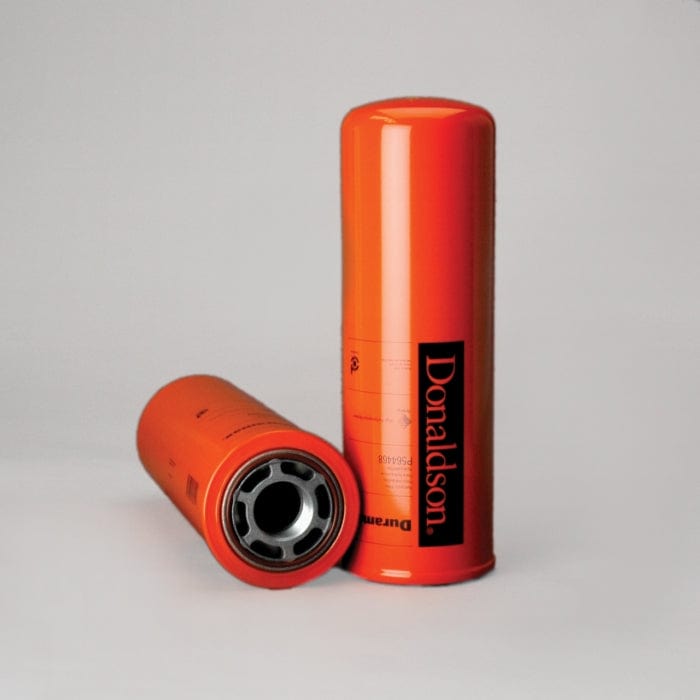

Hydraulic Filter, Spin-On Duramax - Donaldson P564468
Hydraulic Filter, Spin-On Duramax - Donaldson P564468
Regular price
Ā£114.76
Regular price
Sale price
Ā£114.76
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P564468
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 4.7 inch (119.4 mm) |
| Thread Size | 1 3/4-12 UN |
| Length | 14.24 inch (361.69 mm) |
| Gasket OD | 3.39 inch (86 mm) |
| Gasket ID | 3.11 inch (79 mm) |
| Efficiency Beta 1000 | 4 micron |
| Style | Spin-On |
| Series | HMK05/25 |
| Brand | DuramaxĀ® |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Filter Note: Water Glycol Compatibility with Fluorocarbon Seals
- Outer Diameter: 119.4 mm (4.7 inch)
- Thread Size: 1 3/4-12 UN
- Length: 361.69 mm (14.24 inch)
- Gasket OD: 86 mm (3.39 inch)
- Gasket ID: 79 mm (3.11 inch)
- Efficiency Beta 1000: 4 micron
- Style: Spin-On
- Series: HMK05/25
- Brand: DuramaxĀ®
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.130 m (5.20 inch)
- Packaged Width: 0.128 m (5.10 inch)
- Packaged Height: 0.373 m (14.90 inch)
- Packaged Weight: 2.306 kg (5.08 lb)
- Packaged Volume: 0.006 m3 (0.23 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-09
- HTS Code: 8421298090
- UPC Code: 742330162194
