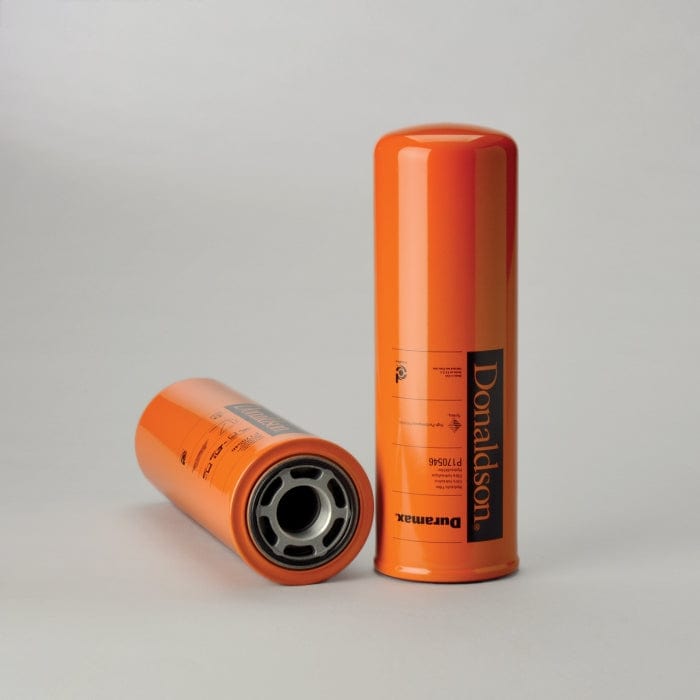

Hydraulic Filter, Spin-On Duramax - Donaldson P170546

Attributes

• Outer Diameter: 119.38 mm (4.70 inch)
• Thread Size: 1 3/4-12 UN
• Length: 361.69 mm (14.24 inch)
• Gasket OD: 86 mm (3.39 inch)
• Gasket ID: 79 mm (3.11 inch)
• Efficiency Beta 1000: 50 micron
• Style: Spin-On
• Brand: Duramax®
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.128 m (5.10 inch)
• Packaged Width: 0.133 m (5.30 inch)
• Packaged Height: 0.373 m (14.90 inch)
• Packaged Weight: 2.179 kg (4.80 lb)
• Packaged Volume: 0.007 m3 (0.23 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-07
• HTS Code: 8421298090
• UPC Code: 742330128169
