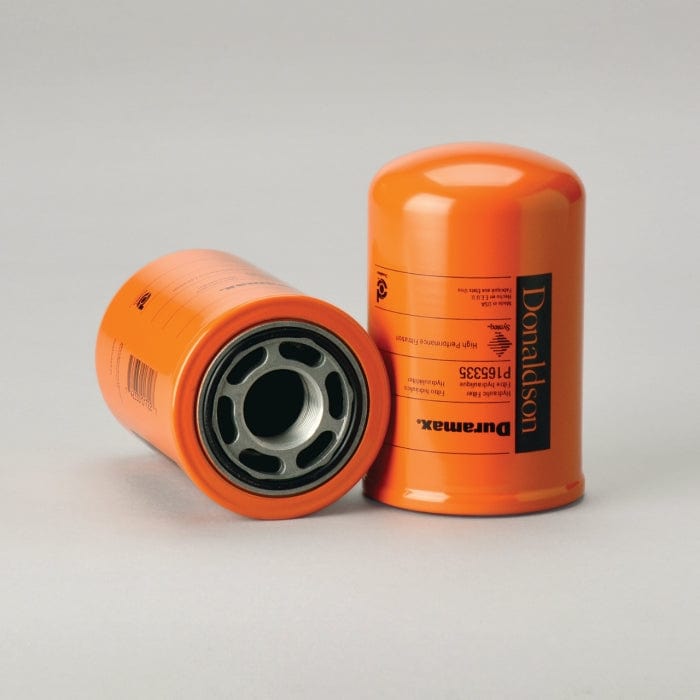

Hydraulic Filter, Spin-On Duramax - Donaldson P165335
Hydraulic Filter, Spin-On Duramax - Donaldson P165335
Regular price
£48.54
Regular price
Sale price
£48.54
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P165335
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 3.82 inch (97 mm) |
| Thread Size | 1 3/8-12 UN |
| Length | 5.97 inch (151.64 mm) |
| Gasket OD | 2.76 inch (70 mm) |
| Gasket ID | 2.48 inch (63 mm) |
| Efficiency Beta 2 | 14 micron |
| Efficiency Beta 1000 | 50 micron |
| Efficiency Test Std | ISO 16889 |
| Style | Spin-On |
| Series | HMK04/24 |
| Brand | Duramax® |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 97 mm (3.82 inch)
- Thread Size: 1 3/8-12 UN
- Length: 151.64 mm (5.97 inch)
- Gasket OD: 70 mm (2.76 inch)
- Gasket ID: 63 mm (2.48 inch)
- Efficiency Beta 2: 14 micron
- Efficiency Beta 1000: 50 micron
- Efficiency Test Std: ISO 16889
- Style: Spin-On
- Series: HMK04/24
- Brand: Duramax®
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.103 m (4.10 inch)
- Packaged Width: 0.100 m (4.00 inch)
- Packaged Height: 0.163 m (6.50 inch)
- Packaged Weight: 0.897 kg (1.98 lb)
- Packaged Volume: 0.002 m3 (0.06 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069095-02
- HTS Code: 8421298090
- UPC Code: 742330017227
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 92497 | |
| BIG A | 92449 | |
| BIG A | 92454 | |
| CATERPILLAR | 3I1907 | |
| CATERPILLAR | 3I0553 | |
| FORD | 9576P163428 | |
| INGERSOLL RAND | 39136650 | |
| KRALINATOR | L497 | |
| KRALINATOR | L454 | |
| MI-JACK | BR2404342 | |
| MI-JACK | BR4044471 | |
| TAMROCK | 73831131 | |
| TAYLOR | 4044471 | |
| TAYLOR | 4044501 | |
| TIGERCAT | AY074 | |
| TWIN DISC | 1001631 | |
| VMC | HF165335 |
