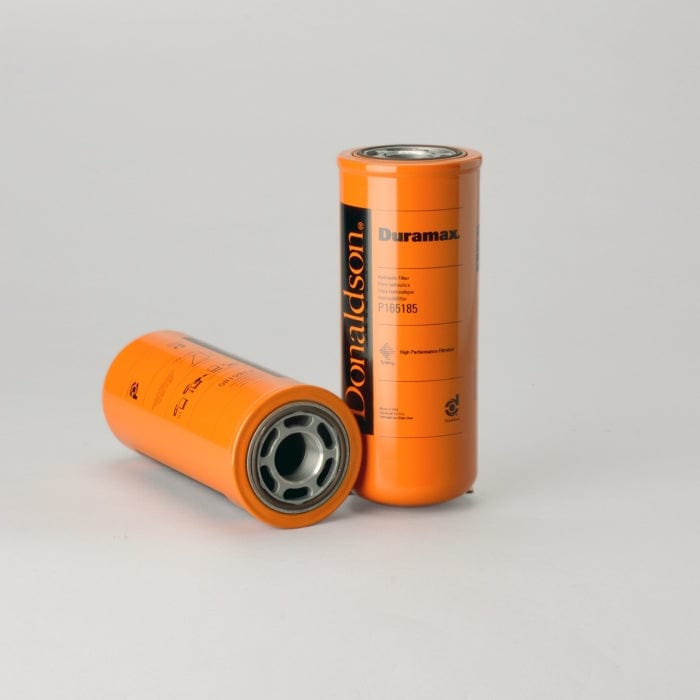

Hydraulic Filter, Spin-On Duramax - Donaldson P165185
Hydraulic Filter, Spin-On Duramax - Donaldson P165185
Regular price
£65.58
Regular price
Sale price
£65.58
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P165185
Hydraulic Filter, Spin-On Duramax| Outer Diameter | 3.82 inch (97 mm) |
| Thread Size | 1 3/8-12 UN |
| Length | 9.44 inch (239.78 mm) |
| Gasket OD | 2.76 inch (70 mm) |
| Gasket ID | 2.48 inch (63 mm) |
| Efficiency Beta 1000 | 4 micron |
| Efficiency Test Std | ISO 16889 |
| Style | Spin-On |
| Series | HMK04/24 |
| Brand | Duramax® |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Filter Note: Water Glycol Compatibility with Fluorocarbon Seals
- Outer Diameter: 97 mm (3.82 inch)
- Thread Size: 1 3/8-12 UN
- Length: 239.78 mm (9.44 inch)
- Gasket OD: 70 mm (2.76 inch)
- Gasket ID: 63 mm (2.48 inch)
- Efficiency Beta 1000: 4 micron
- Efficiency Test Std: ISO 16889
- Style: Spin-On
- Series: HMK04/24
- Brand: Duramax®
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.103 m (4.10 inch)
- Packaged Width: 0.105 m (4.20 inch)
- Packaged Height: 0.253 m (10.10 inch)
- Packaged Weight: 1.360 kg (3.00 lb)
- Packaged Volume: 0.003 m3 (0.10 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 133320
- HTS Code: 8421298090
- UPC Code: 742330017005
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CASE/CASE IH | 84475949 | |
| GROVE | 376023 | |
| TIGERCAT | AY088 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 420 | - | SKID STEER LOADER | - | CASE/CASE IH 422TM2 | - |
| NEW HOLLAND L175 | - | SKID STEER LOADER | - | NEW HOLLAND N844LT | - |
