• Donaldson Hydraulic Filter, Spin-On Duramax - Donaldson P164381
1 1

Hydraulic Filter, Spin-On Duramax - Donaldson P164381

Hydraulic Filter, Spin-On Duramax - Donaldson P164381

£37.04
£37.04
Sale Sold out
Shipping calculated at checkout.

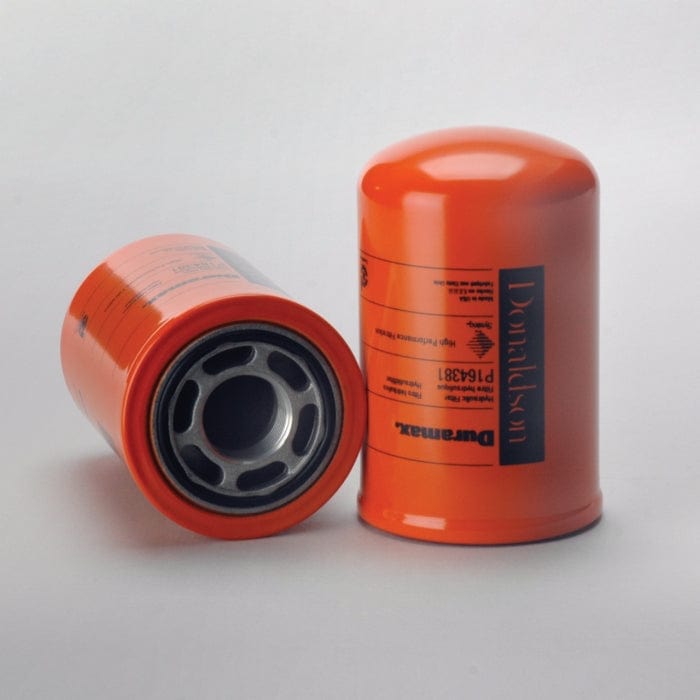

Donaldson P164381

Hydraulic Filter, Spin-On Duramax
Outer Diameter 3.82 inch (97 mm)
Thread Size 1 3/8-12 UN
Length 5.97 inch (151.64 mm)
Gasket OD 2.76 inch (70 mm)
Gasket ID 2.48 inch (63 mm)
Efficiency Beta 2 7 micron
Efficiency Beta 1000 23 micron
Style Spin-On
Series HMK04/24
Brand Duramax®
Media Type Synthetic
Primary Application CASE/CASE IH X724693
View full details

Specifications

Attributes

  • Outer Diameter: 97 mm (3.82 inch)
  • Thread Size: 1 3/8-12 UN
  • Length: 151.64 mm (5.97 inch)
  • Gasket OD: 70 mm (2.76 inch)
  • Gasket ID: 63 mm (2.48 inch)
  • Efficiency Beta 2: 7 micron
  • Efficiency Beta 1000: 23 micron
  • Style: Spin-On
  • Series: HMK04/24
  • Brand: Duramax®
  • Media Type: Synthetic
  • Primary Application: CASE/CASE IH X724693

Packaged Dimensions

  • Packaged Length: 0.103 m (4.10 inch)
  • Packaged Width: 0.103 m (4.10 inch)
  • Packaged Height: 0.163 m (6.50 inch)
  • Packaged Weight: 0.885 kg (1.95 lb)
  • Packaged Volume: 0.002 m3 (0.06 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069095-02
  • HTS Code: 8421298090
  • UPC Code: 742330016190

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO PF2175
AGCO 700738686
AMERICAN PARTS 92456
AMERICAN PARTS 92450
AMERICAN PARTS 92448
ATLAS COPCO 58456181
BARBER-GREENE 7R8373
BIG A 92450
BIG A 92448
BIG A 92456
BIG A 92445
BOBCAT 6599543
BOBCAT 6677652
BOMBARDIER P163496
BOMBARDIER 118302500
BRADEN CARCO GEARMATIC 27389
CASE/CASE IH 12762953
CASE/CASE IH 47628831
CASE/CASE IH 84523925
CASE/CASE IH D151101
CASE/CASE IH XY24693
CASE/CASE IH 294721A1
CASE/CASE IH 1266751H2
CASE/CASE IH X824693
CASE/CASE IH X724693
CATERPILLAR 7R8373
CATERPILLAR 1186322
CATERPILLAR 3I0546
CATERPILLAR 3I0611
CATERPILLAR 902900
CATERPILLAR 8T747S
CATERPILLAR 8T7478
CATERPILLAR 9O2900
CATERPILLAR 3I0566
CATERPILLAR 0902900
CATERPILLAR 3I0551
CATERPILLAR 1031971
CLARK 06912098
CLARK 6912098
CLARK 6599543
CMI 2008500001
CMI 2008562001
CMI 002008500001
CMI 002008562001
CMI 285001
COMPACTION AMERICA 0938027
DAEWOO 44749066
DEUTZ 04418911
DEZZI 350025
DRESSER 1266751H2
DYNAPAC 928670
DYNAPAC 928670
EATON 0104508006
EATON 2370025
EPIROC 2658456181
FARESIN 240009001
FIAT 76043369
FIAT 71460631
FIAT 76074218
FORD 9576P163419
FRANK J ZAMBONI 3R07001
FURUKAWA 402020306
FURUKAWA 3743804000
FURUKAWA 0402020306
GREYFRIARS HS7645
HAVAM HD3419
HITACHI L71460631
HOIST LIFTTRUCK MANUFACTURING M04568
HYSTER T3006174
HYSTER 3006174
INGERSOLL RAND 58891615
INGERSOLL RAND 58887936
INGERSOLL RAND 43922400
INGERSOLL RAND RM43922400
INTERNATIONAL 1266751H2
INTRUPA 9902900
INTRUPA 83256
INTRUPA 83430
JACOBSEN 556418
JCB 32909000
JCB 32905501
JOHN DEERE AT69362
JOHN DEERE AL77061
KHD 04418911
KOBELCO 76074218
KOBELCO 71460631
KOMATSU 1266751H1
KOMATSU 1266752H91
KOMATSU 1266751H2
KRALINATOR L456
KRALINATOR L450
KRESS 203611
KRESS 206096
KUKJE AL77061
KUKJE TY6203A4
LOESING 020033
LOESING 20033
LOESING 21693
LOESING 21093
LOESING 021693
LOESING 021093
M.D.F. SARL MDH4033
MCCORMICK X724693
NACCO MATERIALS 3006174
NACCO MATERIALS P163496
NEW HOLLAND 47628831
NEW HOLLAND 71460631
NEW HOLLAND 76074218
NEW HOLLAND 76054667
NEW HOLLAND L76074218
NEW HOLLAND 87529366
OLSSONS I ELLOS AB AL77061
PETTIBONE JB32905501
PETTIBONE 32905501
PRINOTH 118302500
RAYGO 7R8373
SAMSUNG P717301950
SAUER SUNDSTRAND 9700795
SAURER 544379
TIM 8T7478
TIM 9O2900
TOWMOTOR 902900
TWIN DISC 178363
TWIN DISC 1003905
UNITED CENTRAL INDUSTRIAL SUPP 687136
VAPORMATIC CPK1528
VAPORMATIC VPK1528
VMC HF164381
VMC HF163315
VOLVO CONSTRUCTION EQUIPMENT 12764953
WALGAHN-MOTORENTECHN 00810984
WALGAHN-MOTORENTECHN 00810982
WALGAHN-MOTORENTECHN 00810944
WALGAHN-MOTORENTECHN 810944
WALGAHN-MOTORENTECHN 810984
WALGAHN-MOTORENTECHN 810982
YANMAR 19812929310
