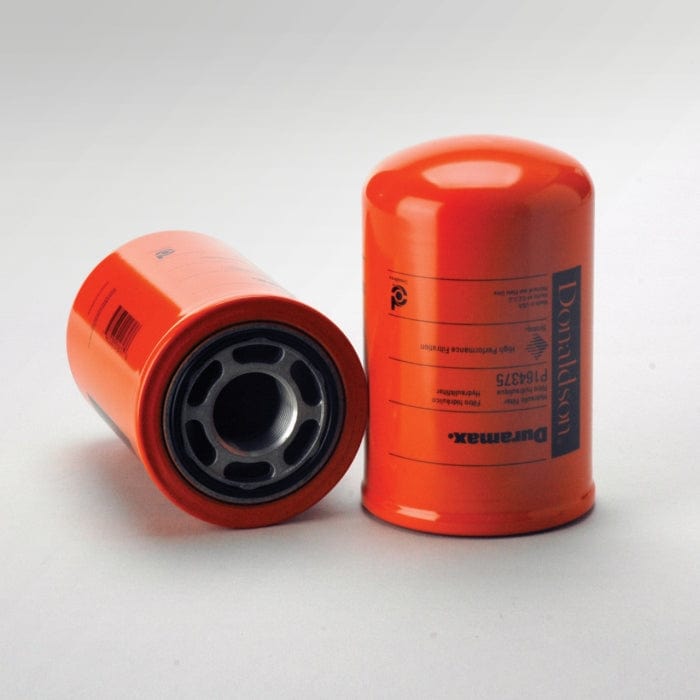

Hydraulic Filter, Spin-On Duramax - Donaldson P164375

Attributes

• Outer Diameter: 97 mm (3.82 inch)
• Thread Size: 1 3/8-12 UN
• Length: 151.64 mm (5.97 inch)
• Gasket OD: 70 mm (2.76 inch)
• Gasket ID: 63 mm (2.48 inch)
• Efficiency Beta 2: 4 micron
• Efficiency Beta 200: 9 micron
• Efficiency Beta 1000: 11 micron
• Efficiency Test Std: ISO 16889
• Collapse Burst: 20 bar (290 psi)
• Style: Spin-On
• Series: HMK04/24
• Brand: Duramax®
• Media Type: Synteq XP
• Primary Application: CLARK 6630977

Packaged Dimensions

• Packaged Length: 0.103 m (4.10 inch)
• Packaged Width: 0.103 m (4.10 inch)
• Packaged Height: 0.163 m (6.50 inch)
• Packaged Weight: 0.863 kg (1.90 lb)
• Packaged Volume: 0.002 m3 (0.06 ft3)

Other Information

• Country of Origin: Italy
• NMFC Code: 069095-02
• HTS Code: 8421298090
• UPC Code: 742330016176
