• Donaldson Hydraulic Filter, Spin-On - Donaldson P765704
1 1

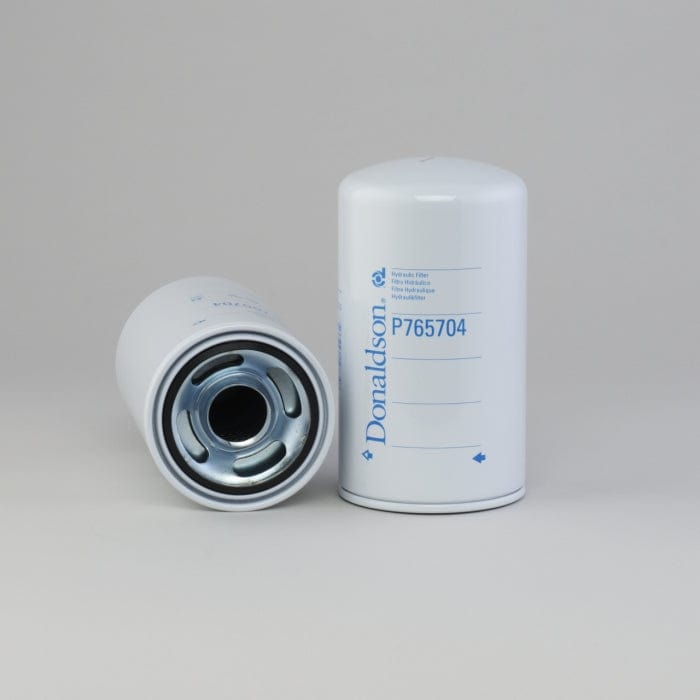

Hydraulic Filter, Spin-On - Donaldson P765704

Hydraulic Filter, Spin-On - Donaldson P765704

£46.76
£46.76
Sale Sold out
Shipping calculated at checkout.

Donaldson P765704

Hydraulic Filter, Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 135.2 mm (5.32 inch)
  • Thread Size: 1 3/4-16 UN
  • Length: 244.2 mm (9.61 inch)
  • Gasket OD: 109.7 mm (4.32 inch)
  • Gasket ID: 100 mm (3.94 inch)
  • Efficiency Beta 200: 42 micron
  • Efficiency Beta 1000: 50 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.8 bar (12 psi)
  • Style: Spin-On
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.138 m (5.50 inch)
  • Packaged Width: 0.148 m (5.90 inch)
  • Packaged Height: 0.245 m (9.80 inch)
  • Packaged Weight: 1.964 kg (4.33 lb)
  • Packaged Volume: 0.005 m3 (0.18 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330198346

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 84248043
CASE/CASE IH 47135287
NEW HOLLAND 84228827
NEW HOLLAND 842288270
NEW HOLLAND 84248043

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CASE/CASE IH MXU115 - TRACTOR MXU SERIES - MXU115 -
