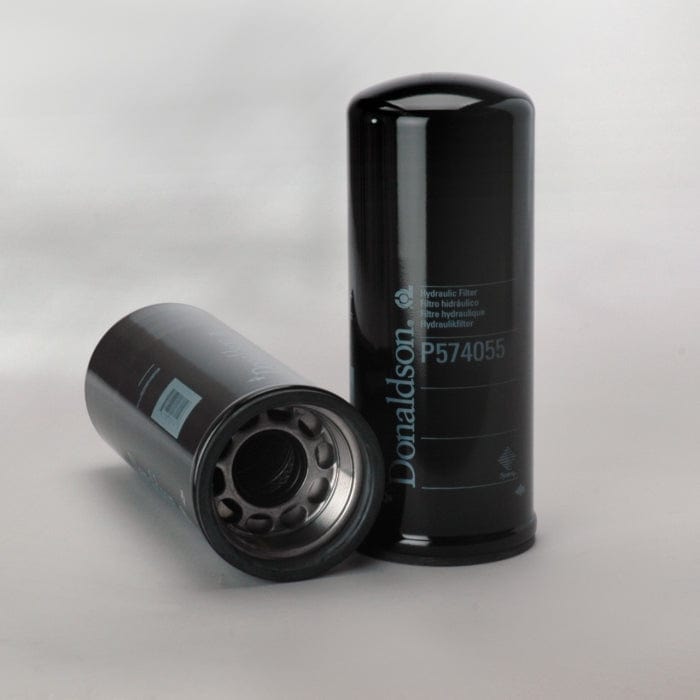

Hydraulic Filter, Spin-On - Donaldson P574055
Hydraulic Filter, Spin-On - Donaldson P574055
Regular price
£67.70
Regular price
Sale price
£67.70
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P574055
Hydraulic Filter, Spin-On| Outer Diameter | 4.59 inch (116.7 mm) |
| Thread Size | M90 x 2 |
| Length | 11.68 inch (296.7 mm) |
| Gasket OD | 4.68 inch (118.87 mm) |
| Gasket ID | 4.00 inch (101.6 mm) |
| Efficiency Beta 1000 | 13 micron |
| Collapse Burst | 200 psi (13.8 bar) |
| Style | Spin-On |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 116.7 mm (4.59 inch)
- Thread Size: M90 x 2
- Length: 296.7 mm (11.68 inch)
- Gasket OD: 118.87 mm (4.68 inch)
- Gasket ID: 101.6 mm (4.00 inch)
- Efficiency Beta 1000: 13 micron
- Collapse Burst: 13.8 bar (200 psi)
- Style: Spin-On
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.130 m (5.20 inch)
- Packaged Width: 0.130 m (5.20 inch)
- Packaged Height: 0.300 m (12.00 inch)
- Packaged Weight: 2.270 kg (5.00 lb)
- Packaged Volume: 0.005 m3 (0.19 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-05
- HTS Code: 8421298090
- UPC Code: 742330181546
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| JOHN DEERE | AT195915 | |
| JOHN DEERE | AT228474 | |
| JOHN DEERE | AT189924 | |
| JOHN DEERE | AT310905 | |
| JOHN DEERE | AT367840 | |
| WISMET | WFLT926729 | |
| WISMET | WFLT998900 | |
| WISMET | WHS210539 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| HITACHI LX150-5 | - | LOADER WHEELED | - | JOHN DEERE - | - |
| JOHN DEERE 310G | - | BACKHOE LOADER | - | JOHN DEERE 4045D | - |
| JOHN DEERE 310G | - | BACKHOE LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 310SG | - | BACKHOE LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 310SG | - | BACKHOE LOADER | - | JOHN DEERE 4045D | - |
| JOHN DEERE 315SG | - | BACKHOE LOADER | - | JOHN DEERE 4045D | - |
| JOHN DEERE 315SG | - | BACKHOE LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 444H | - | LOADER | - | JOHN DEERE 4045 | - |
| JOHN DEERE 444H LL | - | LOADER | - | JOHN DEERE 4045 | - |
| JOHN DEERE 444H TC | - | LOADER | - | JOHN DEERE 4045 | - |
| JOHN DEERE 444J | - | LOADER | - | JOHN DEERE 4045H | - |
| JOHN DEERE 544H | - | LOADER WHEELED | - | JOHN DEERE 6068HT | - |
| JOHN DEERE 544H | - | LOADER WHEELED | - | JOHN DEERE 6068 | - |
| JOHN DEERE 544H LL | - | LOADER | - | JOHN DEERE 6068 | - |
| JOHN DEERE 544H TC | - | LOADER | - | - 544H TC | - |
| JOHN DEERE 544J | - | LOADER WHEELED | - | JOHN DEERE 6068H | - |
| JOHN DEERE 624H | - | LOADER WHEELED | - | JOHN DEERE 6068HT | - |
| JOHN DEERE 624H LL | - | LOADER | - | JOHN DEERE 6068 | - |
| JOHN DEERE 624J | - | LOADER | - | - 624J | - |
| JOHN DEERE 644H | - | LOADER WHEELED | 600 SERIES | - 644H | - |
| JOHN DEERE 644H | - | LOADER WHEELED | - | - 644H | - |
| JOHN DEERE 644J | - | LOADER | - | - 644J | - |
| JOHN DEERE 670G | - | GRADER | - | JOHN DEERE 6090H | - |
| JOHN DEERE 724J | - | LOADER WHEELED | - | - 724J | - |
| JOHN DEERE 744H | - | LOADER WHEELED | - | JOHN DEERE 6125A | - |
| JOHN DEERE 744H | - | LOADER WHEELED | - | JOHN DEERE 6125H | - |
| JOHN DEERE 744J | - | LOADER WHEELED | - | JOHN DEERE 6125A | - |
| JOHN DEERE 744J | - | LOADER WHEELED | - | - 744J | - |
| JOHN DEERE 772G | - | GRADER | - | JOHN DEERE 6090H | - |
| JOHN DEERE 824J | - | LOADER WHEELED | - | - 824J | - |
| JOHN DEERE 824J | - | LOADER WHEELED | - | JOHN DEERE 6125H1 | - |
| JOHN DEERE 824J | - | LOADER WHEELED | - | JOHN DEERE 6125 | - |
| JOHN DEERE 844J | - | LOADER WHEELED | - | JOHN DEERE 6125H | - |
| JOHN DEERE 944K | - | LOADER WHEELED | - | JOHN DEERE 6135H | - |
| JOHN DEERE TC44H | - | LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE TC54H | - | LOADER | - | - TC54H | - |
| JOHN DEERE TC62H | - | LOADER | - | JOHN DEERE 6068T | - |
