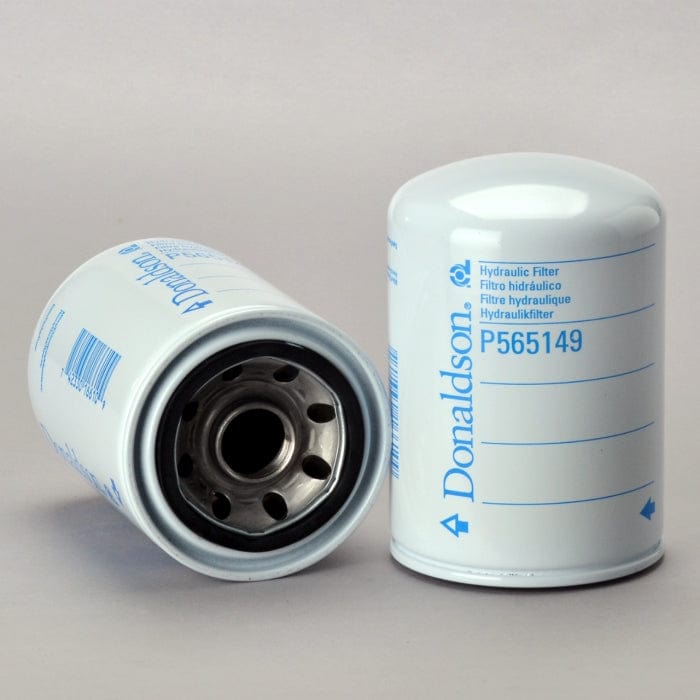

Hydraulic Filter, Spin-On - Donaldson P565149

Attributes

• Outer Diameter: 93 mm (3.66 inch)
• Thread Size: 31/32-20 UN
• Length: 136 mm (5.35 inch)
• Gasket OD: 71.5 mm (2.81 inch)
• Gasket ID: 61.5 mm (2.42 inch)
• Efficiency Beta 1000: 14 micron
• Bypass Valve: Yes
• Bypass Valve Setting LR: 1.6 bar (23 psi)
• Style: Spin-On
• Media Type: Synthetic
• Primary Application: SULLAIR 250026982

Packaged Dimensions

• Packaged Length: 0.100 m (4.00 inch)
• Packaged Width: 0.095 m (3.80 inch)
• Packaged Height: 0.143 m (5.70 inch)
• Packaged Weight: 0.588 kg (1.30 lb)
• Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

• Country of Origin: Mexico
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330166109
