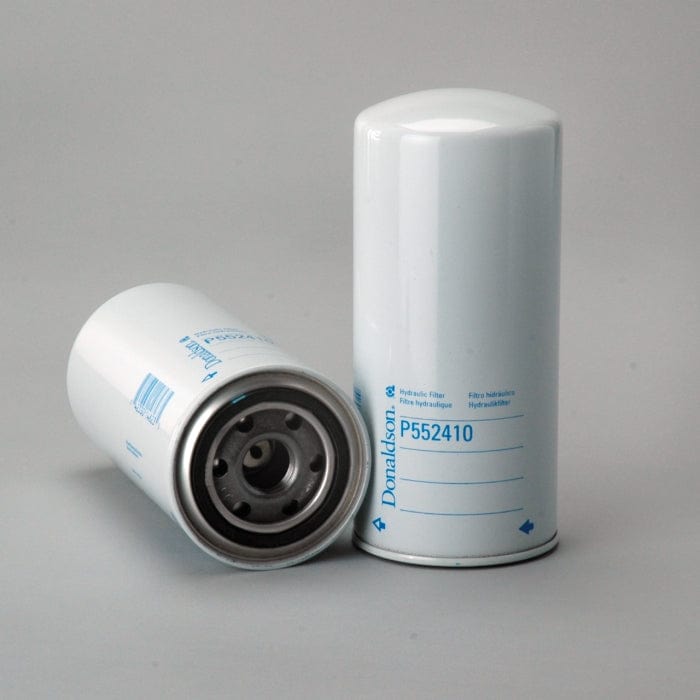

Hydraulic Filter, Spin-On - Donaldson P552410
Hydraulic Filter, Spin-On - Donaldson P552410
Regular price
Ā£51.42
Regular price
Sale price
Ā£51.42
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P552410
Hydraulic Filter, Spin-On| Outer Diameter | 3.66 inch (92.96 mm) |
| Thread Size | 1-12 UN |
| Length | 8.23 inch (209.1 mm) |
| Gasket OD | 2.83 inch (71.98 mm) |
| Gasket ID | 2.46 inch (62.53 mm) |
| Efficiency Beta 2 | 19 micron |
| Efficiency Beta 75 | 45 micron |
| Style | Spin-On |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 92.96 mm (3.66 inch)
- Thread Size: 1-12 UN
- Length: 209.1 mm (8.23 inch)
- Gasket OD: 71.98 mm (2.83 inch)
- Gasket ID: 62.53 mm (2.46 inch)
- Efficiency Beta 2: 19 micron
- Efficiency Beta 75: 45 micron
- Style: Spin-On
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.115 m (4.60 inch)
- Packaged Width: 0.103 m (4.10 inch)
- Packaged Height: 0.240 m (9.60 inch)
- Packaged Weight: 0.829 kg (1.83 lb)
- Packaged Volume: 0.003 m3 (0.10 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-09
- HTS Code: 8421298090
- UPC Code: 742330148235
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN PARTS | 92273 | |
| BIG A | 92273 | |
| DEUTZ | 4305722 | |
| DEUTZ | TN04305722 | |
| FIAAM | FH4957 | |
| FIAAM | FT4957 | |
| KHD | 4305722 | |
| KHD | TN04305722 | |
| KNECHT | HC12 | |
| KNECHT | AW77 | |
| KNECHT | AW171 | |
| ORENSTEIN & KOPPEL | 1499416 | |
| RENAULT VI | 6005019555 | |
| SOPARIS | CV462 | |
| STEYR-DAIMLER-PUCH | 37700759060 | |
| VMC | HF552410 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| DEUTZ DX3.60 | - | TRACTOR | - | - DX3.60 | - |
| DEUTZ DX3.65 | - | TRACTOR | - | - DX3.65 | - |
| DEUTZ DX3.70 | - | TRACTOR | - | - DX3.70 | - |
| DEUTZ DX4.30 | - | TRACTOR | - | - DX4.30 | - |
| DEUTZ DX4.31 | - | TRACTOR | - | - DX4.31 | - |
| DEUTZ DX4.50 | - | TRACTOR | - | - DX4.50 | - |
| DEUTZ DX4.51 | - | TRACTOR | - | - DX4.51 | - |
| DEUTZ DX4.70 | - | TRACTOR | - | - DX4.70 | - |
| DEUTZ DX6.05 | - | TRACTOR | - | - DX6.05 | - |
| DEUTZ DX6.10 | - | TRACTOR | - | - DX6.10 | - |
| DEUTZ DX6.30 | - | TRACTOR | - | - DX6.30 | - |
| DEUTZ DX6.50 | - | TRACTOR | - | - DX6.50 | - |
| DEUTZ-FAHR AGROSTAR 6.38 | - | TRACTOR | - | - AGROSTAR 6.38 | - |
| DEUTZ-FAHR AGROTRON 135 | - | TRACTOR | - | DEUTZ BF6M1013E | - |
| DEUTZ-FAHR AGROXTRA DX110A | - | TRACTOR | DX SERIES | DEUTZ F6L912 | - |
| DEUTZ-FAHR AGROXTRA DX120 | - | TRACTOR | DX SERIES | DEUTZ F6L913 | - |
| DEUTZ-FAHR AGROXTRA DX140 | - | TRACTOR | DX SERIES | DEUTZ BF6L913 | - |
| DEUTZ-FAHR AGROXTRA DX145 | - | TRACTOR | DX SERIES | DEUTZ BF6L913 | - |
| DEUTZ-FAHR AGROXTRA DX230A | - | TRACTOR | DX SERIES | DEUTZ BF6L913 | - |
| DEUTZ-FAHR AGROXTRA DX3.30 | - | TRACTOR | DX SERIES | DEUTZ F3L912 | - |
| DEUTZ-FAHR AGROXTRA DX3.50 | - | TRACTOR | DX SERIES | DEUTZ F3L913 | - |
| DEUTZ-FAHR AGROXTRA DX3.60 | - | TRACTOR | - | DEUTZ F4L912 | - |
| DEUTZ-FAHR AGROXTRA DX3.65 | - | TRACTOR | - | DEUTZ F4L912 | - |
| DEUTZ-FAHR AGROXTRA DX3.70 | - | TRACTOR | - | DEUTZ F4L912 | - |
| DEUTZ-FAHR AGROXTRA DX3.80 | - | TRACTOR | DX SERIES | DEUTZ F4L913 | - |
| DEUTZ-FAHR AGROXTRA DX4.30 | - | TRACTOR | DX SERIES | DEUTZ F4L913 | - |
| DEUTZ-FAHR AGROXTRA DX4.50 | - | TRACTOR | DX SERIES | DEUTZ BF4L913T | - |
| DEUTZ-FAHR AGROXTRA DX6.07 | - | TRACTOR | - | - AGROXTRA DX6.07 | - |
| DEUTZ-FAHR AGROXTRA DX7.10 | - | TRACTOR | - | DEUTZ BF6L913 | - |
| DEUTZ-FAHR AGROXTRA DX8.30 | - | TRACTOR | - | - AGROXTRA DX8.30 | - |
| DEUTZ-FAHR AGROXTRA DX80 | - | TRACTOR | - | DEUTZ F4L913 | - |
| DEUTZ-FAHR AGROXTRA DX90 | - | TRACTOR | DX SERIES | DEUTZ F5L912 | - |
| DEUTZ-FAHR D 7007 C | - | TRACTOR | - | DEUTZ F4L913 | - |
| DEUTZ-FAHR D 7007 C | - | TRACTOR | - | DEUTZ F4L912 | - |
| DEUTZ-FAHR D4807C | - | TRACTOR | - | DEUTZ F4L912 | - |
| DEUTZ-FAHR D5207C | - | TRACTOR | - | - D5207C | - |
| DEUTZ-FAHR D6265 | - | TRACTOR | - | - D6265 | - |
| DEUTZ-FAHR D6907C | - | TRACTOR | D07 C SERIES | DEUTZ F4L913 | - |
| DEUTZ-FAHR D7207C | - | TRACTOR | - | DEUTZ F4L912 | - |
| DEUTZ-FAHR D7807C | - | TRACTOR | - | DEUTZ F4L913 | - |
| DEUTZ-FAHR M 1320 | - | TRACTOR | M1300 SERIES | DEUTZ BFF6L913 | - |
| DEUTZ-FAHR M 1322 | - | TRACTOR | M1300 SERIES | DEUTZ BFF6L913 | - |
| DEUTZ-FAHR M 2580 | - | TRACTOR | - | DEUTZ F6L913 | - |
| DEUTZ-FAHR M 2580 | - | TRACTOR | - | DEUTZ F6L912 | - |
| DEUTZ-FAHR M 2680 | - | TRACTOR | - | DEUTZ F6L913 | - |
| DEUTZ-FAHR M 2680 | - | TRACTOR | M2000 SERIES | DEUTZ F6L912 | - |
| DEUTZ-FAHR M1302HA | - | COMBINE | - | DEUTZ BF6L912 | - |
| DEUTZ-FAHR M1302HA | - | COMBINE | - | DEUTZ BF6L913 | - |
| DEUTZ-FAHR M1600H | - | COMBINE | - | DEUTZ F8L413V | - |
| DEUTZ-FAHR M1620H | - | COMBINE | - | DEUTZ F8L413F | - |
| DEUTZ-FAHR M2385 | - | COMBINE | - | DEUTZ F6L912 | - |
| DEUTZ-FAHR M36.10H | - | COMBINE | M30 SERIES | DEUTZ BF6L913 | - |
| DEUTZ-FAHR M36.30H | - | COMBINE | M30 SERIES | DEUTZ F8L413 | - |
