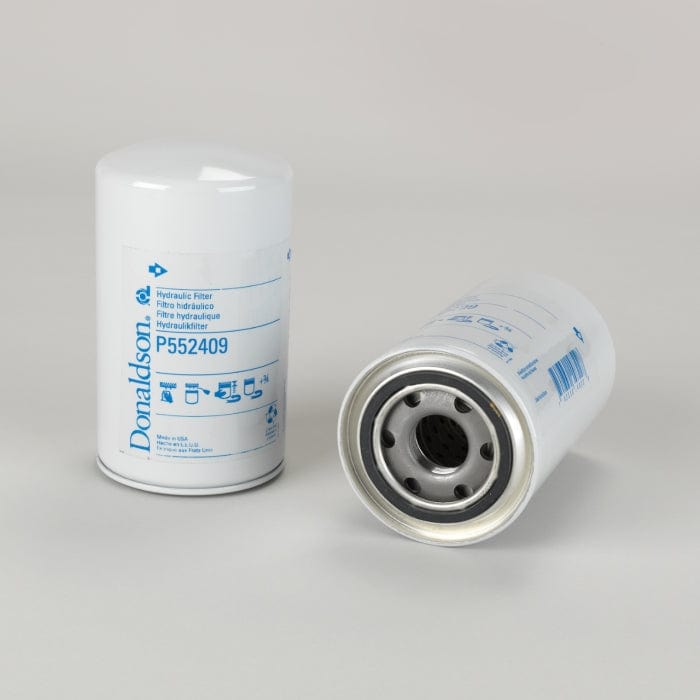

Hydraulic Filter, Spin-On - Donaldson P552409
Hydraulic Filter, Spin-On - Donaldson P552409
Regular price
£50.58
Regular price
Sale price
£50.58
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P552409
Hydraulic Filter, Spin-OnShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 93.22 mm (3.67 inch)
- Thread Size: 1 1/8-16 UN
- Length: 164.36 mm (6.47 inch)
- Gasket OD: 69.32 mm (2.73 inch)
- Gasket ID: 61.34 mm (2.41 inch)
- Efficiency Beta 2: 32 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 0.8 bar (12 psi)
- Bypass Valve Setting HR: 0.9 bar (13 psi)
- Style: Spin-On
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.207 m (8.27 inch)
- Packaged Weight: 0.627 kg (1.38 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-07
- HTS Code: 8421298090
- UPC Code: 742330148228
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 92778 | |
| CASE/CASE IH | 47622189 | |
| COOPERS | HSM6172 | |
| COOPERS | HSN6172 | |
| CROSLAND | 9315 | |
| ESCORTS | D10026160 | |
| FARMTRAC | D10026160 | |
| FORD | FONNB486AA | |
| FORD | F0NNB486AA | |
| FORD | 1863229 | |
| FORD | 81863229 | |
| FORD | D8NNB486DA | |
| FORD | F0NN8486BB | |
| GREYFRIARS | 954SH | |
| GREYFRIARS | HS7654 | |
| KRALINATOR | L1778 | |
| LOCKHEED | LK3626 | |
| NEW HOLLAND | 84263773 | |
| NEW HOLLAND | 81863229 | |
| NEW HOLLAND | 83984236 | |
| P.B.R. | BC1168 | |
| VMC | HF552409 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| NEW HOLLAND 2610 | - | TRACTOR | - | - 2610 | - |
| NEW HOLLAND 2910 | - | TRACTOR | - | FORD BSD329 | - |
| NEW HOLLAND 3230 | - | TRACTOR | - | - 3230 | - |
| NEW HOLLAND 3430 | - | TRACTOR | - | - 3430 | - |
| NEW HOLLAND 3600 | - | TRACTOR | - | - 3600 | - |
| NEW HOLLAND 3930 | - | TRACTOR | - | - 3930 | - |
| NEW HOLLAND 4110 | - | TRACTOR | - | - 4110 | - |
| NEW HOLLAND 4130 | - | TRACTOR | - | - 4130 | - |
| NEW HOLLAND 4600 | - | TRACTOR | - | FORD OHV 4256 | - |
| NEW HOLLAND 4610 | - | TRACTOR | - | - 4610 | - |
| NEW HOLLAND 4830 | - | SPRAYER | - | - 4830 | - |
| NEW HOLLAND 5030 | - | TRACTOR | - | - 5030 | - |
| NEW HOLLAND 5110 | - | TRACTOR | - | - 5110 | - |
| NEW HOLLAND 5610 | - | TRACTOR | - | FORD BSD442 | - |
| NEW HOLLAND 5630 | - | TRACTOR | 5000 SERIES, NARROW | - 5630 | - |
| NEW HOLLAND 5640 | - | TRACTOR | - | - 5640 | - |
| NEW HOLLAND 6610 | - | TRACTOR | - | - 6610 | - |
| NEW HOLLAND 6630 | - | TRACTOR | NARROW | - 6630 | - |
| NEW HOLLAND 6640 SLE | - | TRACTOR | - | - 6640 SLE | - |
| NEW HOLLAND 6640SL | - | TRACTOR | - | - 6640SL | - |
| NEW HOLLAND 7600 | - | TRACTOR | - | - 7600 | - |
| NEW HOLLAND 7840 SL | - | TRACTOR | - | - 7840 SL | - |
| NEW HOLLAND 7840 SLE | - | TRACTOR | - | - 7840 SLE | - |
| NEW HOLLAND 7840S | - | TRACTOR | - | - 7840S | - |
| NEW HOLLAND 7910 | - | TRACTOR | - | FORD BSD666 | - |
| NEW HOLLAND 8240 SL | - | TRACTOR | - | - 8240 SL | - |
| NEW HOLLAND 8240 SLE | - | TRACTOR | - | - 8240 SLE | - |
| NEW HOLLAND 8240S | - | TRACTOR | - | - 8240S | - |
| NEW HOLLAND 8630 | - | TRACTOR | - | FORD BSD666 | - |
| NEW HOLLAND TS100 | - | TRACTOR | - | - TS100 | - |
| NEW HOLLAND TS110 | - | TRACTOR | - | - TS110 | - |
| NEW HOLLAND TS90 | - | TRACTOR | - | - TS90 | - |
