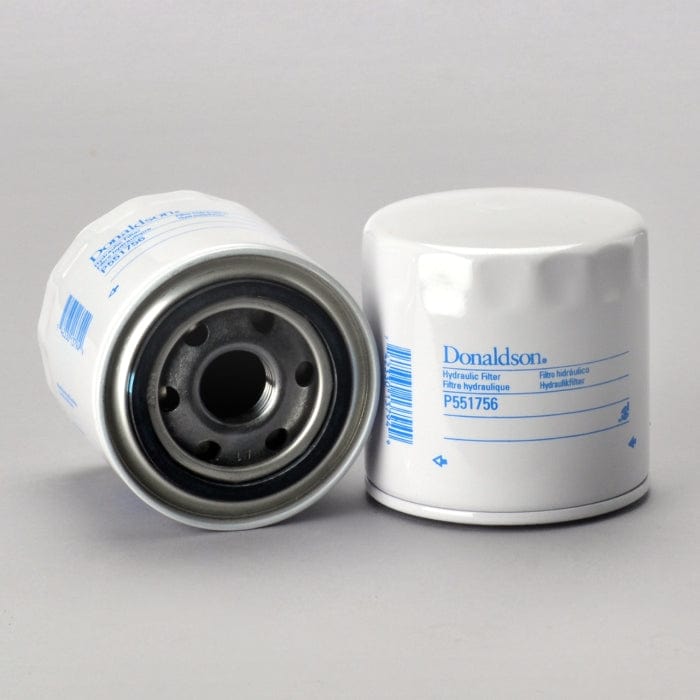

Hydraulic Filter, Spin-On - Donaldson P551756
Hydraulic Filter, Spin-On - Donaldson P551756
Regular price
Ā£11.20
Regular price
Sale price
Ā£11.20
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551756
Hydraulic Filter, Spin-OnShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 93.21 mm (3.67 inch)
- Thread Size: 1-12 UN
- Length: 96.11 mm (3.78 inch)
- Gasket OD: 71.98 mm (2.83 inch)
- Gasket ID: 62.53 mm (2.46 inch)
- Efficiency Beta 75: 34 micron
- Efficiency Test Std: SAE J1858
- Bypass Valve: Yes
- Bypass Valve Setting LR: 0.5 bar (7 psi)
- Bypass Valve Setting HR: 0.7 bar (10 psi)
- Style: Spin-On
- Primary Application: CASE/CASE IH 404886R1
Packaged Dimensions
- Packaged Length: 0.100 m (4.00 inch)
- Packaged Width: 0.100 m (4.00 inch)
- Packaged Height: 0.100 m (4.00 inch)
- Packaged Weight: 0.427 kg (0.94 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-08
- HTS Code: 8421298090
- UPC Code: 742330137949
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF1074 | |
| AMERICAN PARTS | 2189 | |
| AMERICAN PARTS | 92247 | |
| ARIENS | 31146 | |
| BIG A | 2189 | |
| BIG A | 92247 | |
| CASE/CASE IH | 404886R1 | |
| CUSHMAN | 522200 | |
| DELUXE | 327365 | |
| GREYFRIARS | 9082S | |
| INTERNATIONAL | 404886R91 | |
| INTERNATIONAL | 404886R1 | |
| JCB | 581M8563 | |
| JCB | 581M8565 | |
| JCB | 58118063 | |
| JCB | 581M7012 | |
| JOHN DEERE | M131053 | |
| NEW HOLLAND | 252329 | |
| NEW HOLLAND | 178562 | |
| ROTARYAIRE COMPRESSOR | 198631 | |
| TEREX | 15861402 | |
| TORO | 678110 | |
| VMC | HF551756 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 184 | - | TRACTOR | - | CASE/CASE IH C60 | - |
| CASE/CASE IH CUB CADET 154 | - | LAWN EQUIPMENT | LO-BOY | - CUB CADET 154 | - |
| CASE/CASE IH CUB CADET 185 | - | LAWN EQUIPMENT | LO-BOY | CASE/CASE IH C60 | - |
| JCB 3CX | - | BACKHOE LOADER | - | JCB 444 | - |
| JCB 3CX ECO | - | BACKHOE LOADER | - | JCB 444T | - |
| JCB 3DX | - | BACKHOE LOADER | - | KIRLOSKAR 4R1040 | - |
| JCB 3DX PREMIUM | - | BACKHOE LOADER | - | JCB JCB448 ECO-145 | - |
| JCB 3DX SUPER | - | BACKHOE LOADER | - | KIRLOSKAR 4R1040TA | - |
| JCB 4CX | - | BACKHOE LOADER | - | JCB 444TA | - |
| JCB 528S | - | TELEHANDLER | - | PERKINS - | - |
| JCB 535-125 TELEBAT | - | TELEHANDLER | - | JCB 444 | T4 |
| JCB 535-140 TELEBAT | - | TELEHANDLER | - | JCB 444 | T4 |
| JCB 536-60 | - | TELEHANDLER | - | JCB DIESELMAX 4.4L | Tier 3 |
| JOHN DEERE PROGATOR 2020 | - | UTILITY VEHICLE | - | YANMAR 3TG72 | - |
| JOHN DEERE PROGATOR 2020A | - | UTILITY VEHICLE | - | YANMAR 3TG72 | - |
| JOHN DEERE PROGATOR 2030A | - | UTILITY VEHICLE | - | YANMAR 1.1L | - |
