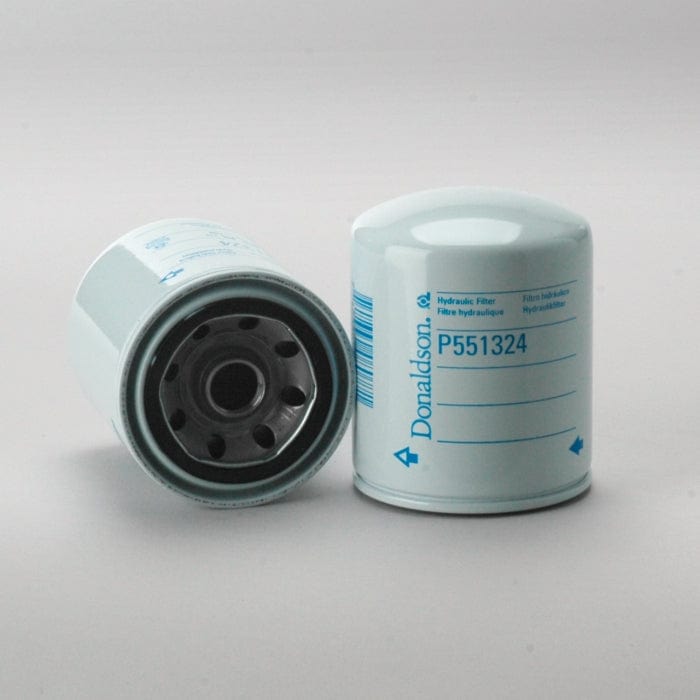

Hydraulic Filter, Spin-On - Donaldson P551324
Hydraulic Filter, Spin-On - Donaldson P551324
Regular price
Ā£13.44
Regular price
Sale price
Ā£13.44
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551324
Hydraulic Filter, Spin-On| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 13/16-16 UN |
| Length | 4.52 inch (114.8 mm) |
| Gasket OD | 2.85 inch (72.5 mm) |
| Gasket ID | 2.42 inch (61.5 mm) |
| Efficiency Beta 2 | 1 micron |
| Efficiency Beta 1000 | 23 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 20 psi (1.4 bar) |
| Style | Spin-On |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 13/16-16 UN
- Length: 114.8 mm (4.52 inch)
- Gasket OD: 72.5 mm (2.85 inch)
- Gasket ID: 61.5 mm (2.42 inch)
- Efficiency Beta 2: 1 micron
- Efficiency Beta 1000: 23 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 1.4 bar (20 psi)
- Style: Spin-On
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.093 m (3.70 inch)
- Packaged Width: 0.100 m (4.00 inch)
- Packaged Height: 0.113 m (4.50 inch)
- Packaged Weight: 0.449 kg (0.99 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-05
- HTS Code: 8421298090
- UPC Code: 742330080771
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF2155 | |
| AC DELCO | PF2160 | |
| BIG A | 92209 | |
| BIG A | 92479 | |
| CATERPILLAR | 4T7948 | |
| CATERPILLAR | MCF00321 | |
| CATERPILLAR | 3G6926 | |
| CATERPILLAR | 3G6925 | |
| CATERPILLAR | 3G6337 | |
| CATERPILLAR | 3G6928 | |
| CLAAS | 3229970 | |
| COOPERS | HSM6067 | |
| CROSLAND | 2161 | |
| DAEWOO | D141182 | |
| DAEWOO | D140182 | |
| HYSTER | 300635012 | |
| HYSTER | 3006350 | |
| IACOVOU | 4T7948 | |
| INTRUPA | 83296 | |
| KRALINATOR | L479 | |
| LOESING | 025157 | |
| LOESING | 25157 | |
| MANITOU | 177634 | |
| PREMIER PRODUCTS | 249999024 | |
| TEREX | TM6190810 | |
| TIM | 4T7948 | |
| TIM | 1194740 | |
| TIM | 3G6337 | |
| VMC | HF551324 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 416 | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 416 II | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 426 | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 426 II | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 428 | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 428 II | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR F25 | - | FORKLIFT | - | - F25 | - |
| CATERPILLAR F30 | - | FORKLIFT | - | - F30 | - |
| CATERPILLAR F35 | - | FORKLIFT | - | - F35 | - |
| CATERPILLAR FC40 | - | FORKLIFT | - | - FC40 | - |
| CATERPILLAR M25D | - | FORKLIFT | - | - M25D | - |
| CATERPILLAR T120C | - | FORKLIFT | - | CONTINENTAL F227 | - |
| CATERPILLAR T30B | - | FORKLIFT | - | CATERPILLAR 1404 | - |
| CATERPILLAR T30C | - | FORKLIFT | - | CATERPILLAR 1404 | - |
| CATERPILLAR T40 | - | FORKLIFT | - | PERKINS 3.152 | - |
| CATERPILLAR T40B | - | FORKLIFT | - | PERKINS 3.152 | - |
| CATERPILLAR T40B | - | FORKLIFT | - | CATERPILLAR 1404 | - |
| CATERPILLAR T45B | - | FORKLIFT | - | PERKINS 3.152 | - |
| CATERPILLAR T50 | - | FORKLIFT | - | PERKINS 3.152 | - |
| CATERPILLAR T50B | - | FORKLIFT | - | PERKINS 3.152 | - |
| CATERPILLAR T60 | - | FORKLIFT | - | PERKINS 3.152 | - |
| CATERPILLAR T60B | - | FORKLIFT | - | PERKINS 3.152 | - |
| CATERPILLAR T60C | - | FORKLIFT | - | CATERPILLAR 1404 | - |
| CATERPILLAR T60D | - | FORKLIFT | - | PERKINS 4.236 | - |
| CATERPILLAR T80D | - | FORKLIFT | - | - T80D | - |
| CATERPILLAR T90D | - | FORKLIFT | - | - T90D | - |
| CATERPILLAR TC1000 | - | FORKLIFT | - | - TC1000 | - |
| CATERPILLAR TC40D | - | FORKLIFT | - | PEUGEOT XN1P | - |
| CATERPILLAR V30 | - | FORKLIFT | - | PERKINS 3152 | - |
| CATERPILLAR V30B | - | FORKLIFT | - | PERKINS 4.236 | - |
| CATERPILLAR V30C | - | FORKLIFT | - | PERKINS 4.236 | - |
| CATERPILLAR V50C | - | FORKLIFT | - | - V50C | - |
| CATERPILLAR V60 | - | FORKLIFT | - | PERKINS 3152 | - |
| CATERPILLAR V60B | - | FORKLIFT | - | PERKINS 4.236 | - |
| CATERPILLAR V80 | - | FORKLIFT | - | - V80 | - |
| CATERPILLAR V80E | - | FORKLIFT | - | - V80E | - |
| CATERPILLAR VC60C | - | FORKLIFT | - | PERKINS 4.236 | - |
| MANITOU 4RM26NP | - | FORKLIFT | RM SERIES | - 4RM26NP | - |
| MANITOU 4RM26NPE | - | FORKLIFT | RM SERIES | - 4RM26NPE | - |
| MANITOU 4RM30NP | - | FORKLIFT | RM SERIES | - 4RM30NP | - |
| MANITOU 4RM30NPE | - | FORKLIFT | RM SERIES | - 4RM30NPE | - |
| MANITOU M230CPUK | - | FORKLIFT | M SERIES | - M230CPUK | - |
| MANITOU M262 | - | FORKLIFT | M SERIES | PERKINS 1004.42 | - |
| MANITOU M302 | - | FORKLIFT | M SERIES | PERKINS 1004.42 | - |
| MANITOU M404 | - | FORKLIFT | M SERIES | PERKINS 1004.42 | - |
| MANITOU M430CPUK | - | FORKLIFT | M SERIES | - M430CPUK | - |
| MANITOU M450CPUK | - | FORKLIFT | M SERIES | - M450CPUK | - |
| MANITOU MB26NP | - | FORKLIFT | MB SERIES | - MB26NP | - |
| MANITOU MB30NP | - | FORKLIFT | MB SERIES | - MB30NP | - |
| MANITOU MC30CP | - | FORKLIFT | MC SERIES | - MC30CP | - |
| MANITOU MC50CP | - | FORKLIFT | MC SERIES | - MC50CP | - |
| MANITOU ML630 | - | TELEHANDLER | ML SERIES | - ML630 | - |
| MANITOU ML632 | - | TELEHANDLER | ML SERIES | - ML632 | - |
| MANITOU ML635 | - | TELEHANDLER | ML SERIES | - ML635 | - |
| MANITOU MLT523 | - | TELEHANDLER | MLT SERIES | - MLT523 | - |
| MANITOU MLT523SC | - | TELEHANDLER | MLT SERIES | - MLT523SC | - |
| MANITOU MLT524 | - | TELEHANDLER | MLT SERIES | - MLT524 | - |
| MANITOU MLT626 | - | TELEHANDLER | MLT SERIES | - MLT626 | - |
| MANITOU MLT628 | - | TELEHANDLER | MLT SERIES | - MLT628 | - |
| MANITOU MLT629 | - | TELEHANDLER | MLT SERIES | PERKINS 1004.40T | - |
| MANITOU MLT630 | - | TELEHANDLER | MLT SERIES | - MLT630 | - |
| MANITOU MLT633 | - | TELEHANDLER | MLT SERIES | PERKINS 1004.4T | - |
| MANITOU MLT725 | - | TELEHANDLER | MLT SERIES | - MLT725 | - |
| MANITOU MLT730 | - | TELEHANDLER | MLT SERIES | - MLT730 | - |
| MANITOU MLT731 | - | TELEHANDLER | MLT SERIES | - MLT731 | - |
| MANITOU MLT735120LSU | - | TELEHANDLER | MLT SERIES | PERKINS 1104C-44 | - |
| MANITOU MT1230SCP | - | TELEHANDLER | MT SERIES | - MT1230SCP | - |
| MANITOU MT1240L | - | TELEHANDLER | MT SERIES | - MT1240L | - |
| MANITOU MT1330SL | - | TELEHANDLER | - | - MT1330SL | - |
| MANITOU MT1530SCP | - | TELEHANDLER | MT SERIES | - MT1530SCP | - |
| MANITOU MT222CP | - | TELEHANDLER | MT SERIES | - MT222CP | - |
| MANITOU MT225CP | - | TELEHANDLER | MT SERIES | PERKINS 4.236 | - |
| MANITOU MT231CP | - | TELEHANDLER | MT SERIES | - MT231CP | - |
| MANITOU MT425CP | - | TELEHANDLER | MT SERIES | PERKINS 4.236 | - |
| MANITOU MT7282 | - | TELEHANDLER | MT SERIES | - MT7282 | - |
| MANITOU MT7284 | - | TELEHANDLER | MT SERIES | - MT7284 | - |
| MANITOU MT732 | - | TELEHANDLER | MT SERIES | PERKINS - | - |
| MANITOU MT830 | - | TELEHANDLER | MT SERIES | - MT830 | - |
| MANITOU MT830CP | - | TELEHANDLER | MT SERIES | - MT830CP | - |
| MANITOU MT830SCP | - | TELEHANDLER | MT SERIES | - MT830SCP | - |
| MANITOU MT840CP | - | TELEHANDLER | MT SERIES | - MT840CP | - |
| MANITOU MT9284 | - | TELEHANDLER | MT SERIES | - MT9284 | - |
| MANITOU MT930 | - | TELEHANDLER | MT SERIES | - MT930 | - |
| MANITOU MT930CP | - | TELEHANDLER | MT SERIES | - MT930CP | - |
| MANITOU MT930SCP | - | TELEHANDLER | MT SERIES | - MT930SCP | - |
| MANITOU MT932 | - | TELEHANDLER | MT SERIES | - MT932 | - |
| MANITOU MT940L | - | TELEHANDLER | MT SERIES | - MT940L | - |
| TOWMOTOR T60 | - | FORKLIFT | T SERIES | - T60 | - |
