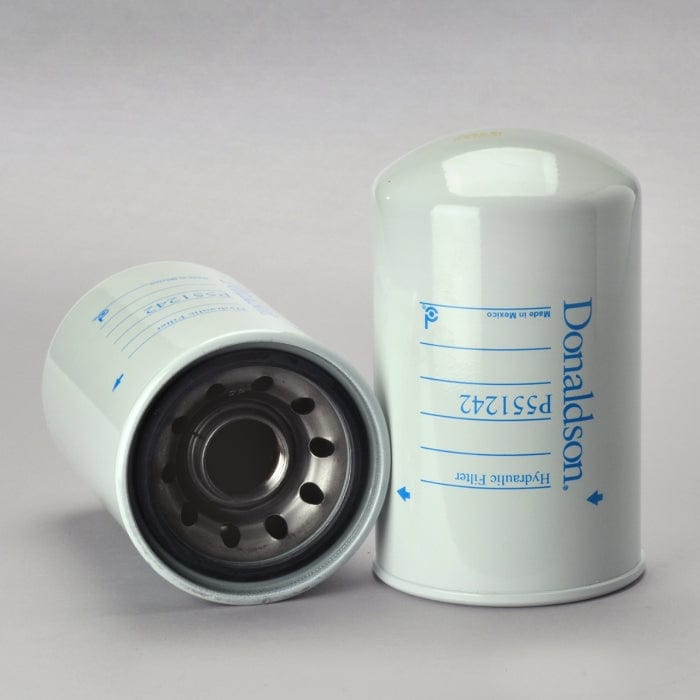

Hydraulic Filter, Spin-On - Donaldson P551242

Hydraulic Filter, Spin-On - Donaldson P551242

Ā£70.92
Ā£70.92
Sale Sold out
Shipping calculated at checkout.

Donaldson P551242

Hydraulic Filter, Spin-On
Outer Diameter 4.89 inch (124.21 mm)
Thread Size 1 1/2-16 UN
Length 8.22 inch (208.79 mm)
Gasket OD 4.17 inch (106 mm)
Efficiency Beta 2 8 micron
Style Spin-On
Media Type Cellulose
Primary Application JOHN DEERE AT103193
View full details

Specifications

Attributes

  • Outer Diameter: 124.21 mm (4.89 inch)
  • Thread Size: 1 1/2-16 UN
  • Length: 208.79 mm (8.22 inch)
  • Gasket OD: 106 mm (4.17 inch)
  • Efficiency Beta 2: 8 micron
  • Style: Spin-On
  • Media Type: Cellulose
  • Primary Application: JOHN DEERE AT103193

Packaged Dimensions

  • Packaged Length: 0.145 m (5.80 inch)
  • Packaged Width: 0.145 m (5.80 inch)
  • Packaged Height: 0.263 m (10.50 inch)
  • Packaged Weight: 1.516 kg (3.34 lb)
  • Packaged Volume: 0.006 m3 (0.20 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330085943

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN PARTS 92565
BIG A 92565
HITACHI AT103193
HITACHI 4220604
JOHN DEERE AT82200
JOHN DEERE AT82764
JOHN DEERE AT106520
JOHN DEERE AT102282
JOHN DEERE AT103193
JOHN DEERE AT103194
JOHN DEERE AT103195
JOHN DEERE AT12282
JOHN DEERE AT251
JOHN DEERE AT84251
KRALINATOR L317
TATA AT144879
TATA AT184206
TWIN DISC XB3614
VMC HF551242

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
HITACHI LX100 - LOADER WHEELED - ISUZU 4BD1T -
HITACHI LX100-1 - LOADER WHEELED - ISUZU 6BD1T -
INGERSOLL RAND P185WJD - COMPRESSOR - JOHN DEERE 4239DL -
JOHN DEERE 210C - BACKHOE LOADER - JOHN DEERE 4239D -
JOHN DEERE 310C - BACKHOE LOADER - JOHN DEERE 4039T -
