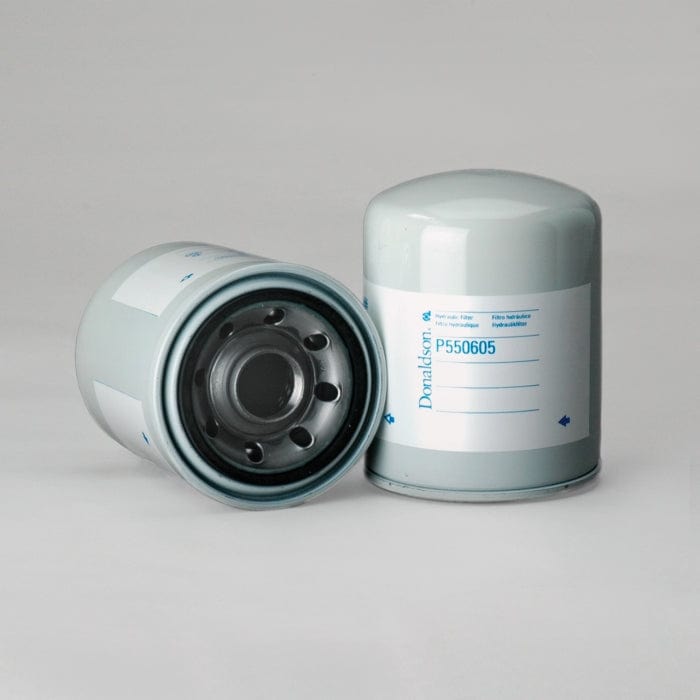

Hydraulic Filter, Spin-On - Donaldson P550605
Hydraulic Filter, Spin-On - Donaldson P550605
Regular price
Ā£151.94
Regular price
Sale price
Ā£151.94
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550605
Hydraulic Filter, Spin-On| Outer Diameter | 5.50 inch (139.7 mm) |
| Thread Size | 1 1/2-16 UN |
| Length | 7.00 inch (177.8 mm) |
| Gasket OD | 4.36 inch (110.74 mm) |
| Gasket ID | 3.96 inch (100.58 mm) |
| Efficiency Beta 2 | 17 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 22 psi (1.5 bar) |
| Style | Spin-On |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 139.7 mm (5.50 inch)
- Thread Size: 1 1/2-16 UN
- Length: 177.8 mm (7.00 inch)
- Gasket OD: 110.74 mm (4.36 inch)
- Gasket ID: 100.58 mm (3.96 inch)
- Efficiency Beta 2: 17 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 1.5 bar (22 psi)
- Style: Spin-On
Packaged Dimensions
- Packaged Length: 0.148 m (5.91 inch)
- Packaged Width: 0.148 m (5.91 inch)
- Packaged Height: 0.187 m (7.48 inch)
- Packaged Weight: 1.641 kg (3.62 lb)
- Packaged Volume: 0.004 m3 (0.15 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-09
- HTS Code: 8421298090
- UPC Code: 742330143117
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | C451 | |
| AMERICAN PARTS | 741 | |
| BIG A | 91405 | |
| BOSCH-REXROTH | 1457434129 | |
| CHAMP | 167 | |
| DEMAG | 10656774 | |
| GREYFRIARS | HS7698 | |
| JOHN DEERE | DQ12161 | |
| KNECHT | HC18 | |
| KNECHT | HC27 | |
| KRALINATOR | K895 | |
| KRALINATOR | 4K895 | |
| LEROI | MD15071 | |
| MAN | 51055040092 | |
| MERCEDES-BENZ | 2771295 | |
| NEOPART | NEOH7946 | |
| NEW HOLLAND | 80447407 | |
| PERMATIC | FH401V | |
| RENAULT VI | 5010113235 | |
| SOPARIS | HC27 | |
| SOPARIS | HC18 | |
| UNIVERSAL COACH PARTS | 90439911CG | |
| VMC | HF550605 | |
| VOITH | 90402010 | |
| VOITH | 6770859226 | |
| VOITH | 90403010 | |
| VOITH | 9043311 | |
| VOITH | 90439910 | |
| VOITH | 9043911 | |
| VOITH | 90439911 | |
| VOKES | 90403010 | |
| VOKES | 90439910 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| JOHN DEERE 1175 | - | COMBINE | - | JOHN DEERE 6059T | - |
| JOHN DEERE 1175 | - | COMBINE | - | JOHN DEERE 6068T | - |
| NEW HOLLAND TF42 | - | COMBINE | - | IVECO 8361T | - |
| NEW HOLLAND TF44 | - | COMBINE | - | - TF44 | - |
