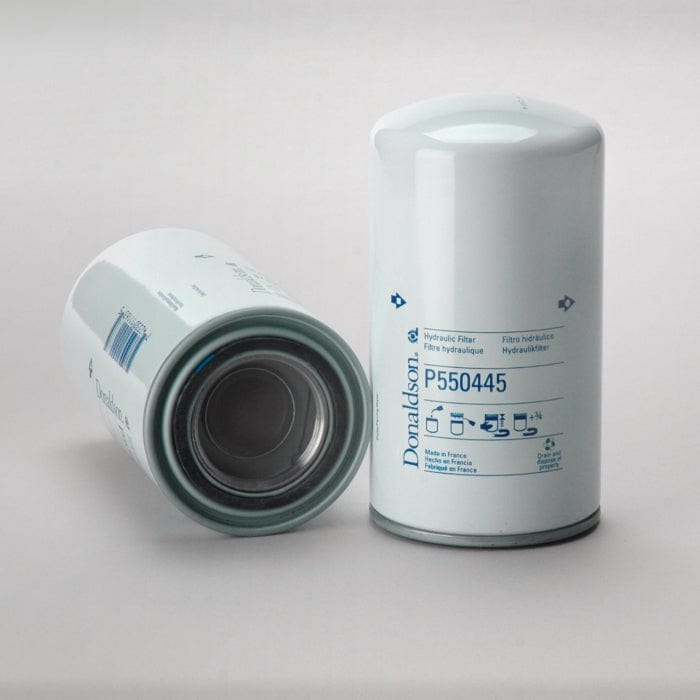

Hydraulic Filter, Spin-On - Donaldson P550445
Hydraulic Filter, Spin-On - Donaldson P550445
Regular price
Ā£27.76
Regular price
Sale price
Ā£27.76
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550445
Hydraulic Filter, Spin-On| Outer Diameter | 3.68 inch (93.5 mm) |
| Thread Size | 2-16 UN |
| Length | 6.81 inch (173 mm) |
| Gasket OD | 2.76 inch (70 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency Beta 2 | 6 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 38 psi (2.6 bar) |
| Style | Spin-On |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93.5 mm (3.68 inch)
- Thread Size: 2-16 UN
- Length: 173 mm (6.81 inch)
- Gasket OD: 70 mm (2.76 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency Beta 2: 6 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 2.6 bar (38 psi)
- Style: Spin-On
Packaged Dimensions
- Packaged Length: 0.100 m (4.00 inch)
- Packaged Width: 0.095 m (3.80 inch)
- Packaged Height: 0.180 m (7.20 inch)
- Packaged Weight: 0.808 kg (1.78 lb)
- Packaged Volume: 0.002 m3 (0.06 ft3)
Other Information
- Country of Origin: France
- NMFC Code: 069100-10
- HTS Code: 8421298090
- UPC Code: 742330111635
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BENATI | 3214743 | |
| BENATI | 3214308 | |
| BIG A | 91410 | |
| CLARK | 243054 | |
| CLARK | 246264 | |
| CLARK | 247052 | |
| DAEWOO | 44749044 | |
| FIAT | 75286525 | |
| GROVE | 9414991819 | |
| HYSTER | 1315621 | |
| HYSTER | 246265 | |
| INGERSOLL RAND | 247052 | |
| KALMAR | 247052 | |
| KRALINATOR | L7410 | |
| NORMET | 57204158 | |
| NORMET | 56041494 | |
| SAMSUNG | 247052 | |
| SANY | 60077980 | |
| TAYLOR | 3939002 | |
| TEREX | H2650573 | |
| VMC | HF550445 | |
| VME | MO247052 | |
| YALE | 8504241 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| DOOSAN MEGA 200TC-III | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB58T | - |
| HYSTER 280XL | - | FORKLIFT | - | - 280XL | - |
| HYSTER EC4 | - | FORKLIFT | - | - EC4 | - |
| HYSTER H1200XL | - | FORKLIFT | - | - H1200XL | - |
| HYUNDAI HL17 | - | LOADER WHEELED | HL SERIES | CUMMINS 6BT5.9 | - |
| HYUNDAI HL740-3 | - | LOADER WHEELED | HL SERIES | CUMMINS 6BT5.9 | - |
| HYUNDAI HL740TM-3 | - | LOADER WHEELED | HL SERIES | CUMMINS 6BT5.9 | - |
| HYUNDAI HL750 | - | LOADER WHEELED | HL SERIES | CUMMINS 6BT5.9 | - |
| HYUNDAI HL750TM | - | LOADER WHEELED | HL SERIES | CUMMINS 6BT5.9 | - |
