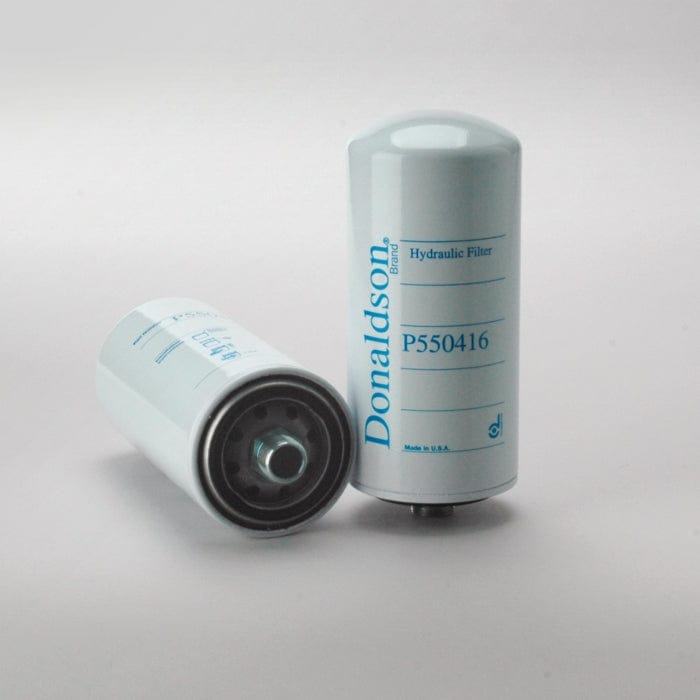

Hydraulic Filter, Spin-On - Donaldson P550416
Hydraulic Filter, Spin-On - Donaldson P550416
Regular price
Ā£31.30
Regular price
Sale price
Ā£31.30
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550416
Hydraulic Filter, Spin-On| Outer Diameter | 3.82 inch (97 mm) |
| Thread Size | M24 x 1.5 |
| Length | 7.13 inch (181 mm) |
| Efficiency Beta 1000 | 44 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 41 psi (2.8 bar) |
| Style | Spin-On |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 97 mm (3.82 inch)
- Thread Size: M24 x 1.5
- Length: 181 mm (7.13 inch)
- Efficiency Beta 1000: 44 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 2.8 bar (41 psi)
- Style: Spin-On
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.246 m (9.84 inch)
- Packaged Weight: 1.100 kg (2.43 lb)
- Packaged Volume: 0.003 m3 (0.09 ft3)
Other Information
- Country of Origin: Italy
- HTS Code: 84212980 90
- UPC Code: 742330104385
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF2182 | |
| BIG A | 92290 | |
| BOSCH-REXROTH | 0451103029 | |
| CASE/CASE IH | 47698894 | |
| CASE/CASE IH | 99380A1 | |
| CASE/CASE IH | 299380A1 | |
| CASE/CASE IH | 299380AF | |
| CASE/CASE IH | Z99380A1 | |
| CASE/CASE IH | S301612 | |
| CASE/CASE IH | 8900125381 | |
| CASE/CASE IH | 185161A1 | |
| CASE/CASE IH | 1203438H1 | |
| CLARK | 1241859 | |
| COOPERS | HSM6026 | |
| COOPERS | HSM6184 | |
| DEMAG | 77732173 | |
| DEUTZ-FAHR | 090021863 | |
| DOOSAN | 0750131053L | |
| FAUN | 7380578 | |
| FAUN | 99707303926 | |
| FIAT | 79109089 | |
| FIAT | 76040228 | |
| GREYFRIARS | HS7652 | |
| GT PIECES ET SERVICES | 2241090 | |
| HITACHI | 4230376 | |
| HITACHI | 4286837 | |
| HITACHI | AT168989 | |
| HITACHI | 76040228 | |
| HITACHI | 76048328 | |
| HITACHI | 79109089 | |
| IMPERIAL | CV116350 | |
| JCB | 4801601 | |
| JCB | 04801601 | |
| JOHN DEERE | AT140030 | |
| JOHN DEERE | AT102377 | |
| JOHN DEERE | AT168989 | |
| KOMATSU | 42Y15H0S92 | |
| KOMATSU | BW501990 | |
| KOMATSU | BW252116 | |
| KOMATSU | 252116 | |
| KRALINATOR | L326 | |
| LIEBHERR | 571931508 | |
| LIEBHERR | 5005092 | |
| LIEBHERR | 500509208 | |
| LINDNER | 80750131053 | |
| LIUGONG | 0750131053ZE | |
| LIUGONG | 1109N131053 | |
| LIUGONG | SP100275 | |
| LOESING | 25170 | |
| LOESING | 025170 | |
| M.D.F. SARL | MDH8574 | |
| NEW HOLLAND | 84491498 | |
| ORENSTEIN & KOPPEL | 1499397 | |
| POCLAIN | Q1750567 | |
| SCHLUTER | 6636481 | |
| SCHWING | 83530016 | |
| TADANO | 99707303926 | |
| TADANO | 99707382371 | |
| TELCO | 750131056 | |
| TEREX | 9398040 | |
| TEREX | Q1750567 | |
| TEREX | 97932773 | |
| TEREX | 41236012 | |
| TEREX | 15501337 | |
| TROJAN | 7380578 | |
| VMC | HF550416 | |
| WORTHINGTON | 114412 | |
| YALE | 7380578 | |
| ZETTELMEYER | 50131013 | |
| ZETTELMEYER | 2288868 | |
| ZETTELMEYER | 22888683 | |
| ZETTELMEYER | 2282693 | |
| ZF | 0501212459 | |
| ZF | 50131013 | |
| ZF | 750131033 | |
| ZF | 750131013 | |
| ZF | 750131053 | |
| ZF | 0750131013 | |
| ZF | 750131060 | |
| ZF | 0750131033 | |
| ZF | 0750131060 | |
| ZF | 0750131053 | |
| ZF | 501210683 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 621 | - | LOADER WHEELED | - | CUMMINS 6BT5.9 | - |
| CASE/CASE IH 721 | - | LOADER | - | CUMMINS 6CT8.3 | - |
| CASE/CASE IH 721B | - | LOADER WHEELED | - | - 721B | - |
| CASE/CASE IH 821 | - | LOADER | - | CUMMINS 6CT8.3 | - |
| DOOSAN MEGA 250-III | - | LOADER WHEELED | MEGA SERIES | DOOSAN D1146T | - |
| HITACHI FR130 | - | LOADER WHEELED | - | FIAT 8065T | - |
| HITACHI FR160 | - | LOADER WHEELED | - | FIAT 8365T | - |
| HITACHI FR160.2 | - | LOADER WHEELED | FR SERIES | - FR160.2 | - |
| HITACHI LX100 | - | LOADER WHEELED | - | ISUZU 4BD1T | - |
| HITACHI LX100-1 | - | LOADER WHEELED | - | ISUZU 6BD1T | - |
| HITACHI LX100-2 | - | LOADER WHEELED | - | JOHN DEERE 6059 | - |
| HITACHI LX120-2 | - | LOADER WHEELED | - | JOHN DEERE 6059 | - |
| HITACHI LX150 | - | LOADER WHEELED | - | HINO EP100T | - |
| HITACHI LX150-1 | - | LOADER WHEELED | - | HINO EP100 | - |
| HITACHI LX150-2 | - | LOADER WHEELED | - | JOHN DEERE 6081 | - |
| HITACHI LX150-2 | - | LOADER WHEELED | - | NISSAN NE6 | - |
| HITACHI LX150E-2 | - | LOADER WHEELED | - | JOHN DEERE 6081 | - |
| HYUNDAI HL25 | - | LOADER WHEELED | HL SERIES | CUMMINS 6CT8.3 | - |
| HYUNDAI HL730-3 | - | LOADER WHEELED | HL SERIES | DEUTZ BF4M1012 | - |
| HYUNDAI HL730TM-3 | - | LOADER WHEELED | HL SERIES | DEUTZ BF4M1012 | - |
| HYUNDAI HL740-3 | - | LOADER WHEELED | HL SERIES | CUMMINS 6BT5.9 | - |
| HYUNDAI HL740TM-3 | - | LOADER WHEELED | HL SERIES | CUMMINS 6BT5.9 | - |
| HYUNDAI HL757-7A | - | LOADER WHEELED | HL SERIES | CUMMINS QSB6.7 | - |
| HYUNDAI HL760 | - | LOADER WHEELED | HL SERIES | CUMMINS 6CT8.3 | - |
| HYUNDAI HL760-7 | - | LOADER WHEELED | HL SERIES | CUMMINS QSB5.9 | - |
| HYUNDAI HL770 | - | LOADER WHEELED | HL SERIES | CUMMINS LTA10 | - |
| HYUNDAI HL770-7A | - | LOADER WHEELED | HL SERIES | CUMMINS QSL9 | - |
| JOHN DEERE 544E | - | LOADER WHEELED | - | JOHN DEERE 6359T | - |
| JOHN DEERE 544E | - | LOADER WHEELED | - | - 544E | - |
| JOHN DEERE 544G | - | LOADER WHEELED | - | JOHN DEERE 6359T | - |
| JOHN DEERE 544G | - | LOADER WHEELED | - | JOHN DEERE 6059T | - |
| JOHN DEERE 624E | - | LOADER WHEELED | - | JOHN DEERE 6414T | - |
| JOHN DEERE 624E | - | LOADER WHEELED | - | JOHN DEERE 6068T | - |
| JOHN DEERE 624G | - | LOADER WHEELED | - | JOHN DEERE 6076A | - |
| JOHN DEERE 624G | - | LOADER WHEELED | - | JOHN DEERE 6068T | - |
| JOHN DEERE 644E | - | LOADER WHEELED | - | JOHN DEERE 6076A | - |
| JOHN DEERE 644E | - | LOADER WHEELED | - | - 644E | - |
| JOHN DEERE 644ER | - | LOADER | - | JOHN DEERE 6076A | - |
| JOHN DEERE 644G | - | LOADER WHEELED | 600 SERIES | - 644G | - |
| JOHN DEERE 644G | - | LOADER WHEELED | - | JOHN DEERE 6076 | - |
| JOHN DEERE 644G | - | LOADER WHEELED | - | JOHN DEERE 6076A | - |
| KOMATSU HA250-1 | - | DUMP TRUCK | - | KOMATSU S6D125-1B8-FA | - |
| KOMATSU HA250-3 | - | DUMP TRUCK | ARTICULATED | KOMATSU S6D125-1B8-FA | - |
| KOMATSU WA270-3 | - | LOADER WHEELED | - | - WA270-3 | - |
| KOMATSU WA270-3H | - | LOADER WHEELED | - | - - | - |
| LIUGONG CLG850H | - | LOADER WHEELED | - | CUMMINS QSL9.3 | - |
| ZF 130 | - | TRANSMISSION | - | - 130 | - |
