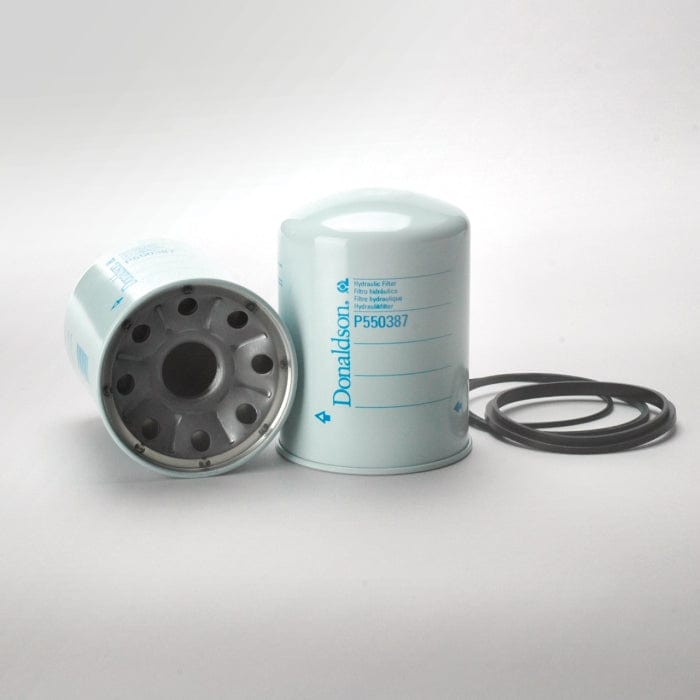

Hydraulic Filter, Spin-On - Donaldson P550387
Hydraulic Filter, Spin-On - Donaldson P550387
Regular price
Ā£21.18
Regular price
Sale price
Ā£21.18
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550387
Hydraulic Filter, Spin-On| Outer Diameter | 4.86 inch (123.5 mm) |
| Thread Size | 1 1/2-16 UN |
| Length | 6.66 inch (169.2 mm) |
| Gasket OD | 5.04 inch (128 mm) |
| Gasket ID | 4.76 inch (120.9 mm) |
| Efficiency Beta 2 | 17 micron |
| Efficiency Beta 1000 | 40 micron |
| Style | Spin-On |
| Series | W023, SP50/60, SP80/90, SP100/120 |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 123.5 mm (4.86 inch)
- Thread Size: 1 1/2-16 UN
- Length: 169.2 mm (6.66 inch)
- Gasket OD: 128 mm (5.04 inch)
- Gasket ID: 120.9 mm (4.76 inch)
- Efficiency Beta 2: 17 micron
- Efficiency Beta 1000: 40 micron
- Style: Spin-On
- Series: W023
- SP50/60:
- SP80/90:
- SP100/120:
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.46 FT
- Packaged Width: 0.42 FT
- Packaged Height: 0.59 FT
- Packaged Weight: 1.171 kg (2.58 lb)
- Packaged Volume: 0.003 m3 (0.11 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-09
- HTS Code: 8421298090
- UPC Code: 742330042403
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF941 | |
| AC DELCO | PF2023 | |
| AC DELCO | PF1098 | |
| AC DELCO | PF1088 | |
| AG CHEM EQUIPMENT | 709666 | |
| AG CHEM EQUIPMENT | 708476 | |
| AG CHEM EQUIPMENT | AG709666 | |
| ALLIS-CHALMERS | 1329308 | |
| AMBAC | S59 | |
| AMERICAN PARTS | 92758 | |
| BIG A | 834 | |
| BIG A | 92758 | |
| BIG A | 92756 | |
| CAN-FLO | RSE6025F | |
| CAN-FLO | RSE505125 | |
| CAN-FLO | RSE5051 | |
| CAN-FLO | RSE503 | |
| CAN-FLO | RSE5025N | |
| CAN-FLO | RSE5025F | |
| CAN-FLO | RSE5025 | |
| CARBOCOL | K23019 | |
| CASE/CASE IH | H341974 | |
| CASE/CASE IH | A41725 | |
| CASE/CASE IH | 69149C1 | |
| CASE/CASE IH | 196469 | |
| CASE/CASE IH | A57857 | |
| CASE/CASE IH | 196169 | |
| CASE/CASE IH | 80538 | |
| CATERPILLAR | 9Y4475 | |
| CATERPILLAR | 3I1172 | |
| CATERPILLAR | 3I0704 | |
| CATERPILLAR | 3I1274 | |
| CATERPILLAR | 3I2048 | |
| CHAMP | PH725 | |
| CHAMPION ROAD | 100459 | |
| CLARK | 6519239 | |
| CLARK | 6552507 | |
| COMPAIR | GD1157245 | |
| CONOCO | CN51758 | |
| COOP | PL436 | |
| COOP | UR29 | |
| CROSLAND | 2045 | |
| CROSS | 1A9253 | |
| CYCLONE | PM436 | |
| DELUXE | WD347 | |
| DELUXE | 347 | |
| DENISON | DE0211B1P20 | |
| DENISON | DE0211B1P25 | |
| DMIC | DMS11BN | |
| DRESSER | H4104001 | |
| DRESSER | 3800077F7 | |
| DRESSER | 3800077 | |
| DRESSER | 3800078F7 | |
| DRESSER | 3800078 | |
| DRESSER | 3800066Y8 | |
| DRESSER | 2020600 | |
| DRESSER | 3800004Y8 | |
| DRESSER | 3800003 | |
| DRESSER | 3800004 | |
| DRESSER | 3800003Y8 | |
| DRESSER | 3800083Y8 | |
| DRESSER | 3800079 | |
| DRESSER | 210004 | |
| DRESSER | S58 | |
| DYNALIFE | CN51758 | |
| FLOW EZY | 750043UM | |
| FLOW EZY | 7500425UM | |
| FLOW EZY | BD50387 | |
| FLOW EZY | FEE5125 | |
| FORCE AMERICA INC | F506825C | |
| FORD | 9613341 | |
| FORD | 9576P550387 | |
| FPC | FPE5025 | |
| FPC | FPE5025N | |
| FREIGHTLINER | DNP550387 | |
| GARDNER DENVER | 2115939 | |
| GEHL | L88032 | |
| GMC | 25012489 | |
| GOULD | P436 | |
| GRAINGER | 1R415 | |
| GRESEN | 8058001 | |
| GRESEN | 7531001 | |
| GRESEN | 7521001 | |
| GRESEN | 75201 | |
| GRESEN | K23042 | |
| GRESEN | K23019 | |
| GRESEN | FS252 | |
| GREYFRIARS | HS7629 | |
| GUD | Z104 | |
| HDA | HC7525 | |
| HYDRA MAC | 3401307 | |
| HYMAC | 3401303 | |
| INGERSOLL RAND | 10353985 | |
| INGERSOLL RAND | 59572842 | |
| INTERNATIONAL | 69149C1 | |
| INTERNATIONAL | 123085C2 | |
| INTERNATIONAL | 180638C91 | |
| JOHN DEERE | AR44696 | |
| JOHN DEERE | GG17032373 | |
| JOHN DEERE | AT44696 | |
| KOMATSU | 69149C1 | |
| LENZ | CP1282105 | |
| LENZ | CP12822550 | |
| LENZ | CP12821050 | |
| LENZ | CP128255 | |
| LEROI | GD1157245 | |
| LHA | SPE5025BLANK | |
| LHA | SPE5025 | |
| LOCKHEED | AP3414 | |
| LOCKHEED | AP3414A | |
| LOCKHEED | LK3414 | |
| MANITOU | DMS511BN | |
| MARINE PERFORMANCE | MPL872 | |
| MODINA | CA401CV1 | |
| MP FILTRI | CSG100P25 | |
| MP FILTRI | CSG100P25A | |
| MUSTANG | 17032375 | |
| MUSTANG | 17032672 | |
| NEW HOLLAND | 262546 | |
| NORMAN ULTRAPOROUS | 525 | |
| NUSTAR | 328007 | |
| ORENSTEIN & KOPPEL | 1450230 | |
| P.B.R. | BC1101 | |
| PERRY | PL348 | |
| PHILLIPS 66 | P29 | |
| PRINCE | FB25 | |
| PRO MATCH | 9Y4475 | |
| PTI | F4E050DCB | |
| PTI | F4E051DCB | |
| PTI | RSE50125 | |
| PURFLUX | LS776 | |
| QUAKER STATE | QS47 | |
| QUINCY NORTHWEST | F2408 | |
| REXNORD | 29823153 | |
| REXNORD | 29819153 | |
| ROGERS MACHINERY | F2408A | |
| ROGERS MACHINERY | F2408B | |
| SANDVIK | 64105096 | |
| STEIGER | 18498 | |
| SULLAIR | RSE5025 | |
| TORO | 570990 | |
| TORO | 445340 | |
| TORO | 282110 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688432 | |
| VICKERS | 941191 | |
| VICKERS | 941190 | |
| VICKERS | V0211B1P25 | |
| VICKERS | 575943 | |
| VICKERS | 737815 | |
| VICKERS | 737810 | |
| VICKERS | 787815 | |
| VICKERS | 736820 | |
| VMC | HF550387 | |
| VME | 6591038 | |
| VOLVO | 12754598 | |
| VOLVO | 85114090 | |
| WALGAHN-MOTORENTECHN | 811921 | |
| WALGAHN-MOTORENTECHN | 00811921 | |
| WAYNE | 54599 | |
| WHITE | 303483592 | |
| WHITE | 1H1230 | |
| WHITE | 207300207 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 1030 | - | TRACTOR | COMFORT KING | CASE/CASE IH A451D | - |
| CASE/CASE IH 1030CK | - | TRACTOR | - | - 1030CK | - |
| CASE/CASE IH 4135 | - | LOADER | - | - 4135 | - |
| CASE/CASE IH 4136 | - | LOADER | - | - 4136 | - |
| CASE/CASE IH 4140 | - | SKID STEER LOADER | - | - 4140 | - |
| CASE/CASE IH 4150 | - | SKID STEER LOADER | - | - 4150 | - |
| CASE/CASE IH 580F | - | BACKHOE LOADER | - | - 580F | - |
| CASE/CASE IH 580G | - | BACKHOE LOADER | - | - 580G | - |
| CASE/CASE IH 782 | - | COTTON PICKER | - | CASE/CASE IH D358 | - |
| CASE/CASE IH 782 | - | COTTON PICKER | - | - 782 | - |
| CASE/CASE IH 782 | - | COTTON PICKER | - | CASE/CASE IH D310 | - |
| CASE/CASE IH 930 | - | TRACTOR | COMFORT KING | - 930 | - |
| CASE/CASE IH A377G | - | ENGINE | - | - A377G | - |
| CASE/CASE IH A377LPG | - | ENGINE | - | - A377LPG | - |
| CASE/CASE IH A401D | - | ENGINE | - | - A401D | - |
| CASE/CASE IH DH5 | - | TRENCHER | - | CASE/CASE IH 188 | - |
| CASE/CASE IH ST300 | - | TRACTOR | - | - ST300 | - |
| CASE/CASE IH ST310 | - | TRACTOR | - | - ST310 | - |
| CASE/CASE IH ST320 | - | TRACTOR | TIGER II SERIES | - ST320 | - |
| CASE/CASE IH W10BD | - | CONSTRUCTION EQUIPMENT | - | - W10BD | - |
| CASE/CASE IH W10BG | - | CONSTRUCTION EQUIPMENT | - | - W10BG | - |
| CASE/CASE IH W10C | - | LOADER WHEELED | - | - W10C | - |
| CASE/CASE IH W8B | - | LOADER WHEELED | - | - W8B | - |
| CASE/CASE IH W8BD | - | CONSTRUCTION EQUIPMENT | - | CASE/CASE IH A401D | - |
| CASE/CASE IH W8BG | - | CONSTRUCTION EQUIPMENT | - | CASE/CASE IH A377 | - |
| CASE/CASE IH W8C | - | LOADER WHEELED | - | - W8C | - |
| CASE/CASE IH W9C | - | LOADER WHEELED | - | - W9C | - |
| DITCH WITCH JT7020 | - | TUNNELING EQUIPMENT | - | DEUTZ BF6M1013ECP | - |
| HYDRA MAC BIG MAC | - | SKID STEER LOADER | - | - BIG MAC | - |
| JOHN DEERE 404A | - | POWER UNIT | - | - 404A | - |
| JOHN DEERE 404D | - | POWER UNIT | - | - 404D | - |
| JOHN DEERE 404T | - | POWER UNIT | - | - 404T | - |
| JOHN DEERE 466A | - | POWER UNIT | - | - 466A | - |
| JOHN DEERE 466D | - | POWER UNIT | - | - 466D | - |
| JOHN DEERE 466T | - | POWER UNIT | - | - 466T | - |
| JOHN DEERE 531 | - | POWER UNIT | - | - 531 | - |
| JOHN DEERE 531A | - | POWER UNIT | - | - 531A | - |
| JOHN DEERE 531D | - | POWER UNIT | - | - 531D | - |
| JOHN DEERE 531T | - | POWER UNIT | - | - 531T | - |
| JOHN DEERE 619A | - | POWER UNIT | - | - 619A | - |
| JOHN DEERE 6404A | - | POWER UNIT | - | - 6404A | - |
| JOHN DEERE 6404T | - | POWER UNIT | - | - 6404T | - |
| JOHN DEERE 6531 | - | POWER UNIT | - | - 6531 | - |
| JOHN DEERE 6531D | - | POWER UNIT | - | - 6531D | - |
| JOHN DEERE 7000 | - | COMBINE | - | - 7000 | - |
| JOHN DEERE 8820 | - | COMBINE | - | JOHN DEERE 6466A | - |
| JOHN DEERE 955T | - | POWER UNIT | - | - 955T | - |
| MUSTANG 345 | - | SKID STEER LOADER | - | - 345 | - |
| MUSTANG 345 | - | SKID STEER LOADER | - | DEUTZ F2L511 | - |
| STEIGER BEARCAT II | - | TRACTOR | - | CATERPILLAR 3160 | - |
| STEIGER BEARCAT III ST220 | - | TRACTOR | - | - BEARCAT III ST220 | - |
| STEIGER CM225 | - | TRACTOR | SERIES IV | - CM225 | - |
| STEIGER CM250 | - | TRACTOR | SERIES IV | - CM250 | - |
| STEIGER CM280 | - | TRACTOR | SERIES IV | - CM280 | - |
| STEIGER CM325 | - | TRACTOR | SERIES IV | - CM325 | - |
| STEIGER CM360 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER COUGAR | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER COUGAR | - | TRACTOR | - | CATERPILLAR D333 | - |
| STEIGER COUGAR II | - | TRACTOR | - | CATERPILLAR D333 | - |
| STEIGER COUGAR II | - | TRACTOR | - | CATERPILLAR 3306 | - |
| STEIGER COUGAR III PT270 | - | TRACTOR | - | CATERPILLAR 3306 | - |
| STEIGER COUGAR III ST250 | - | TRACTOR | - | CATERPILLAR 3306 | - |
| STEIGER COUGAR III ST251 | - | TRACTOR | - | - COUGAR III ST251 | - |
| STEIGER COUGAR III ST270 | - | TRACTOR | - | CATERPILLAR 3306 | - |
| STEIGER COUGAR IV CM250 | - | TRACTOR | - | CATERPILLAR 3306 | - |
| STEIGER COUGAR ST280 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER CP1325 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER CP1360 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER CP1400 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER KM225 | - | TRACTOR | SERIES IV | - KM225 | - |
| STEIGER KM280 | - | TRACTOR | SERIES IV | - KM280 | - |
| STEIGER KM325 | - | TRACTOR | SERIES IV | - KM325 | - |
| STEIGER KM360 | - | TRACTOR | SERIES IV | - KM360 | - |
| STEIGER KP524 | - | TRACTOR | SERIES IV | - KP524 | - |
| STEIGER KS280 | - | TRACTOR | SERIES IV | - KS280 | - |
| STEIGER KS325 | - | TRACTOR | SERIES IV | - KS325 | - |
| STEIGER KS360 | - | TRACTOR | SERIES IV | - KS360 | - |
| STEIGER PANTHER 1000 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER PANTHER II | - | TRACTOR | - | - PANTHER II | - |
| STEIGER PANTHER III PT350 | - | TRACTOR | - | CUMMINS V903 | - |
| STEIGER PANTHER III ST310 | - | TRACTOR | - | - PANTHER III ST310 | - |
| STEIGER PANTHER III ST325 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER PANTHER IV CM325 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER PANTHER IV SM325 | - | TRACTOR | - | KOMATSU SAD125 | - |
| STEIGER PT225 | - | TRACTOR | SERIES III | - PT225 | - |
| STEIGER PT250 | - | TRACTOR | SERIES III | - PT250 | - |
| STEIGER PTA251 | - | TRACTOR | SERIES III | - PTA251 | - |
| STEIGER PTA270 | - | TRACTOR | SERIES III | - PTA270 | - |
| STEIGER PTA280 | - | TRACTOR | SERIES III | - PTA280 | - |
| STEIGER PTA280 | - | TRACTOR | SERIES III | - PTA280 | - |
| STEIGER PTA325 | - | TRACTOR | SERIES III | - PTA325 | - |
| STEIGER RC209 | - | TRACTOR | SERIES III | - RC209 | - |
| STEIGER ST210 | - | TRACTOR | SERIES III | - ST210 | - |
| STEIGER ST225 | - | TRACTOR | SERIES III | - ST225 | - |
| STEIGER ST250 | - | TRACTOR | SERIES III | - ST250 | - |
| STEIGER ST280 | - | TRACTOR | SERIES III | - ST280 | - |
| STEIGER ST280 | - | TRACTOR | SERIES III | - ST280 | - |
| STEIGER ST350 | - | TRACTOR | SERIES III | - ST350 | - |
| STEIGER ST450 | - | TRACTOR | SERIES III | - ST450 | - |
| STEIGER ST470 | - | TRACTOR | SERIES III | - ST470 | - |
| STEIGER SUPER WILDCAT | - | TRACTOR | - | CATERPILLAR 3160 | - |
| STEIGER SUPER WILDCAT | - | TRACTOR | - | CATERPILLAR 3150 | - |
| STEIGER TIGER | - | TRACTOR | - | CUMMINS V903 | - |
| STEIGER TIGER II | - | TRACTOR | - | CUMMINS V903 | - |
| STEIGER TIGER III ST450 | - | TRACTOR | - | CUMMINS KT1150 | - |
| STEIGER TIGER ST450 | - | TRACTOR | - | CATERPILLAR 3408 | - |
| STEIGER TIGER ST470 | - | TRACTOR | - | CUMMINS KTA1150 | - |
| STEIGER WILDCAT | - | TRACTOR | - | CATERPILLAR 3160 | - |
| STEIGER WILDCAT | - | TRACTOR | - | CATERPILLAR 3150 | - |
| STEIGER WILDCAT III RC210 | - | TRACTOR | - | CATERPILLAR 3208N | - |
| STEIGER WILDCAT III ST210 | - | TRACTOR | - | CATERPILLAR 3208N | - |
| SULLAIR D600Q | - | COMPRESSOR | - | JOHN DEERE 4219 | - |
| SULLAIR D600Q | - | COMPRESSOR | - | - D600Q | - |
| TORO GREENSMASTER 3000D | - | MOWER | - | - GREENSMASTER 3000D | - |
| TORO GREENSMASTER 3000E | - | MOWER | - | KOHLER M165 | - |
